In the automotive industry, corrosion resistance is not merely a quality metric—it is a fundamental determinant of vehicle safety, reliability, and long-term customer satisfaction. From engine components and chassis parts to fasteners, brake systems, and exterior trim, every metal element faces constant threats from road salt, humidity, and harsh environmental conditions. At Guangdong Lixian Instruments Co., Ltd. , we provide advanced testing equipment engineered to meet the rigorous demands of automotive quality assurance. Our HZ-2001A Salt Spray Test Chamber delivers precise, repeatable, and standards-compliant corrosion testing, helping automotive manufacturers validate material performance, optimize protective coatings, and ensure long-term durability .
Why Salt Spray Testing is Essential for Automotive Components
Automotive components operate in some of the most challenging environments imaginable—exposure to de-icing salts on winter roads, coastal humidity, temperature fluctuations, and chemical contaminants. Without rigorous validation, corrosion can lead to:
Structural weakening of safety-critical components such as chassis frames, suspension arms, and brake system components
Premature failure of fasteners, connectors, and moving parts
Unsightly cosmetic degradation affecting exterior trim, wheels, and brightwork
Electrical system failures due to corrosion of connectors and terminals
Costly warranty claims and damage to brand reputation
Safety recalls with significant financial and reputational impact
The HZ-2001A Salt Spray Tester from Guangdong Lixian Instruments Co., Ltd. simulates these corrosive conditions in a controlled laboratory environment, enabling manufacturers to assess material resilience and ensure compliance with international automotive standards .

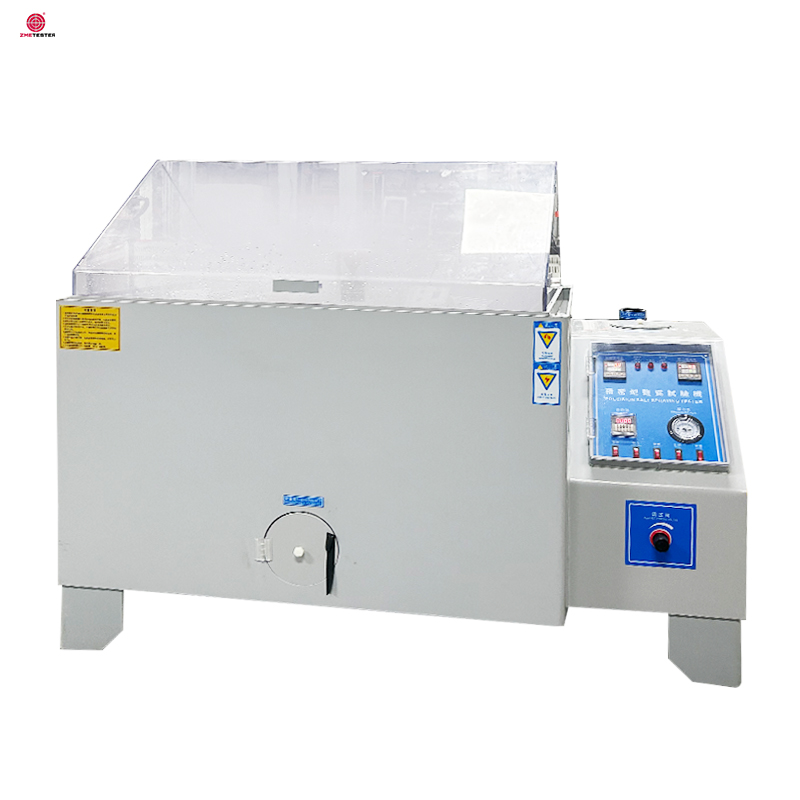

Key Features of the HZ-2001A Salt Spray Test Chamber
Comprehensive Standards Compliance: The HZ-2001A is designed to meet a wide range of international testing standards essential for automotive applications, including ASTM B117, ISO 9227, GB/T 2423.17, GB/T 10125, IEC68-2-11, JIS H8502, CNS.4158, and CNS.4159 for CASS accelerated copper salt spray testing—ensuring global acceptance of your test results .
Intelligent Touch Screen Control System: Equipped with an imported high-precision microcomputer 6.5-inch LCD intelligent touch screen controller, the system features intuitive human-machine interface with dynamic display capabilities. Temperature, time, alarms, defogging, and spray functions are integrated into a single controller. Platinum temperature sensors deliver overall temperature accuracy of ±0.1°C, ensuring precise and reliable test conditions .
Multiple Test Modes for Automotive Applications: The HZ-2001A supports comprehensive testing capabilities required for diverse automotive components:
Neutral Salt Spray (NSS): Standard test for evaluating general corrosion resistance of painted surfaces, plated components, and base metals
Acetic Acid Salt Spray (ACSS): Accelerated testing with acidified solution for more aggressive evaluation
Copper Accelerated Acetic Acid Salt Spray (CASS): Highly accelerated testing for severe environments, particularly for evaluating decorative chromium plating, anodized aluminum, and underhood components
Advanced Spray System: Based on the Bernoulli principle, the atomizer ensures uniform雾化 without crystallization blockage. The precision nozzle is made of tempered glass (PYREX) , guaranteed for 10,000 hours of operation without clogging, with adjustable spray volume and angle for optimal test control .
Precise Environmental Control: The system maintains exacting temperature specifications essential for automotive component testing:
Testing room temperature: 35°C ±1°C for NSS/ACSS tests; 50°C ±1°C for CASS tests
Pressure barrel temperature: 47°C ±1°C for NSS/ACSS; 63°C ±1°C for CASS tests
Multiple Chamber Sizes for Every Need: Available in 108L, 270L, and 480L capacities to accommodate everything from small automotive fasteners and connectors to larger components such as brake calipers, mirrors, and trim assemblies :
| Model | Interior Dimensions (W×D×H) | Capacity | Applications |
|---|---|---|---|
| HZ-2001A-60 | 60 × 45 × 40 cm | 108L | Fasteners, connectors, small components |
| HZ-2001A-90 | 90 × 60 × 50 cm | 270L | Brackets, housings, medium components |
| HZ-2001A-120 | 120 × 80 × 50 cm | 480L | Large components, assemblies, multiple samples |
Robust Corrosion-Resistant Construction: The testing room is fabricated from PVC polyvinyl chloride plate (Taiwan import) for superior acid and alkali resistance, with easy-cleaning properties. The viewing cover uses 5mm imported acrylic panels for clear observation during testing without compromising environmental integrity .
Programmable Spray Functions: Supports both continuous and intermittent spray modes with programmable cycles, enabling simulation of diverse exposure conditions such as the cyclic corrosion tests specified in automotive standards like SAE J2334 .
Technical Specifications at a Glance
| Parameter | NSS / ACSS Test | CASS Test |
|---|---|---|
| Testing Room Temperature | 35°C ±1°C | 50°C ±1°C |
| Pressure Barrel Temperature | 47°C ±1°C | 63°C ±1°C |
| Spray Volume | 1.0–2.0ml/80cm²/h (16-hour average) | 1.0–2.0ml/80cm²/h (16-hour average) |
| Salt Concentration | 5% NaCl solution | 5% NaCl + 0.26g/L CuCl₂·2H₂O |
| pH Range | 6.5–7.2 | 3.0–3.2 |
| Air Pressure | 1.00 ±0.01 kgf/cm² | 1.00 ±0.01 kgf/cm² |
| Relative Humidity | 85%以上 (above 85%) | 85%以上 (above 85%) |
| Power Supply | AC220V, 50Hz | AC220V, 50Hz |
Automotive Standards Compliance
The HZ-2001A Salt Spray Tester supports testing in accordance with key automotive industry standards :
ASTM B117 – Standard Practice for Operating Salt Spray (Fog) Apparatus
ISO 9227 – Corrosion tests in artificial atmospheres – Salt spray tests
SAE J2334 – Laboratory Cyclic Corrosion Test
SAE J1296 – General Test Methods for Electrocoat
GM 9540P – Accelerated Corrosion Test
Ford FLTM BI 103-01 – Corrosion Test for Painted Sheet Metal
JASO M609 – Accelerated Corrosion Test for Automotive Steel Sheet
GB/T 10125 – Corrosion tests in artificial atmospheres – Salt spray tests
GB/T 2423.17 – Environmental testing – Part 2: Test methods – Test Ka: Salt mist
How the HZ-2001A Enhances Automotive Quality Assurance
The HZ-2001A Salt Spray Tester provides critical capabilities for automotive manufacturers, Tier 1 suppliers, and quality control laboratories :
Validate Protective Coatings: Test the corrosion resistance of e-coat, paint, plating, and other surface treatments on automotive components
Ensure Compliance: Meet OEM-specific corrosion standards and global automotive quality requirements
Optimize Material Selection: Compare different materials, coatings, and finishes to select the most cost-effective solutions that meet corrosion requirements
Conduct Incoming Inspection: Verify that purchased components meet corrosion resistance specifications before assembly
Reduce Field Failures: Identify potential corrosion issues before vehicles reach customers, minimizing warranty claims
Support R&D Initiatives: Develop and validate new coating systems and materials for next-generation vehicles
Applications Across the Automotive Industry
The HZ-2001A serves diverse applications throughout automotive manufacturing :
Chassis Components: Testing control arms, suspension components, and frame parts for structural integrity
Fasteners: Evaluating bolts, nuts, clips, and retaining clips for corrosion resistance
Brake Systems: Testing calipers, brackets, and hydraulic components
Engine Components: Evaluating brackets, housings, and underhood components
Exterior Trim: Testing chrome-plated parts, grilles, and decorative elements
Electrical Connectors: Validating terminals, connectors, and sensor housings
Fuel System Components: Testing fuel lines, fittings, and related parts
A Trusted Partner in Precision Testing
As a leading manufacturer of testing instruments and detection equipment, Guangdong Lixian Instruments Co., Ltd. combines decades of instrument R&D experience with deep industry knowledge. Founded in 2000 and headquartered in Dongguan, Guangdong province, the company operates a modern 6000-square-meter production facility and serves clients in over 60 countries with products certified to CE, ISO, ASTM, and other international standards .
Our professional R&D team, rigorous quality management systems, and advanced manufacturing capabilities ensure that every HZ-2001A undergoes strict quality inspection, performance testing, and validation before shipment, guaranteeing stable and reliable long-term operation in demanding automotive testing environments .
Comprehensive Customer Support
Beyond high-quality testing equipment, Guangdong Lixian Instruments Co., Ltd. provides complete support to ensure your success:
12-month product warranty with lifetime service support
Pre-sales consultation: Expert guidance to select appropriate test methods and equipment parameters based on your specific automotive components and quality requirements
Installation and training: On-site commissioning and operation training to ensure your team quickly masters equipment use
After-sales service: Professional maintenance team providing timely repairs, spare parts replacement, and technical support to minimize production disruption
Calibration services: Regular calibration to maintain accuracy and compliance with automotive quality standards
Test with Confidence, Drive with Certainty
In the automotive industry, where safety, reliability, and longevity are paramount, equip your quality laboratory with testing equipment that delivers precise, repeatable results. The HZ-2001A Salt Spray Test Chamber from Guangdong Lixian Instruments Co., Ltd. offers the technological sophistication, robust construction, and standards compliance needed to ensure your automotive components withstand the harshest corrosive environments—from winter roads to coastal conditions.
Contact Guangdong Lixian Instruments Co., Ltd. today to learn more about how our salt spray testing equipment can enhance your automotive component validation processes. Request a detailed technical specification, arrange a product demonstration, or consult with our application specialists to discuss your specific testing requirements.
Guangdong Lixian Instruments Co., Ltd. — Engineering Precision for Automotive Excellence.
