Carton Vibration Testing Machine Price Carton Transportation Vibration Tester Table Equipment HZ-6014B
Carton Vibration Testing Machine Price Carton Transportation Vibration Tester Table Equipment HZ-6014B is the assessment of the ability of various items of specific load to withstand the actual road conditions in the process of road vehicle transportation, so as to obtain the influence of the actual working conditions on the ite
  • Tel:+86 13711888650
  • Product Details

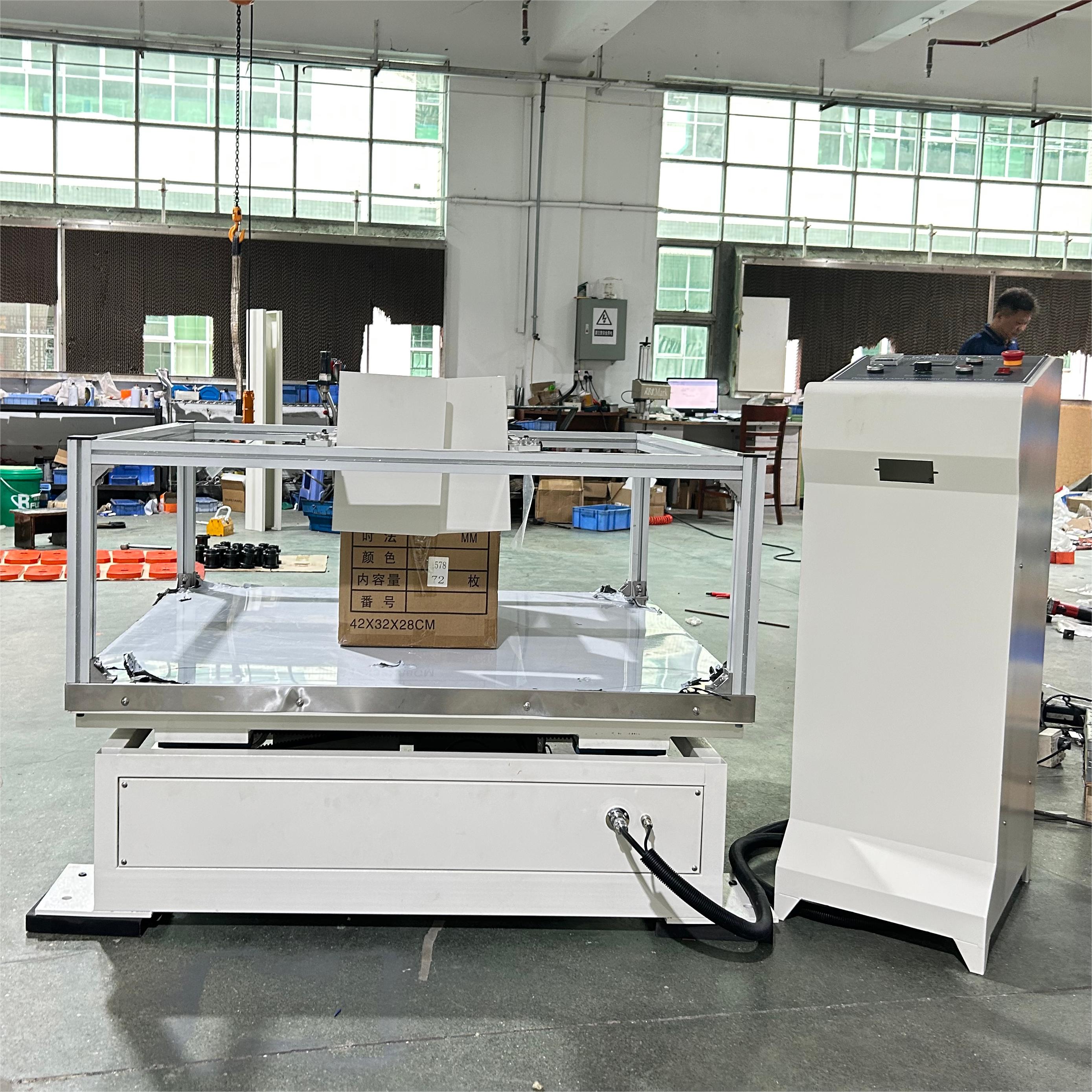

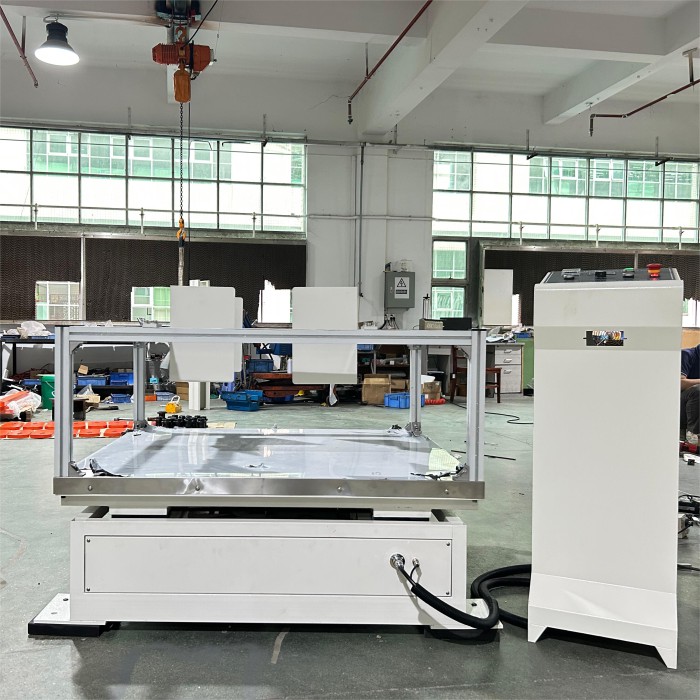

Equipment Overview

Carton vibration test machine is based on the United States and European transport standards, and with reference to the United States of similar equipment to improve manufacturing. The use of eccentric bearings in rotating elliptical trajectories generated to simulate a car or ship the goods during transport the vibration of the collision. Test platform will be fixed on the eccentric bearing, when the eccentric bearing rotation, the test platform for the entire plane would produce an oval-shaped upper and lower front and rear movement, adjust the eccentric shaft with the rotation speed is equivalent to adjust the speed of motor vehicles or vessels.

Specification

Model
HZ-6014B
Maximum test load (KG)
150 kg
Testing dimension
130*120 cm
Maximum Acceleration
1.25g
Frequency
Frequency of 2-5 Hz continuously adjustable
Amplitude
25.4MM(1 Inch)
Motor
Rotary DC motor
Fence Height
33 cm,38 cm,42 cm
Machine weight (KG)
288 kg
Power supply
220V 60HZ


Main Features:

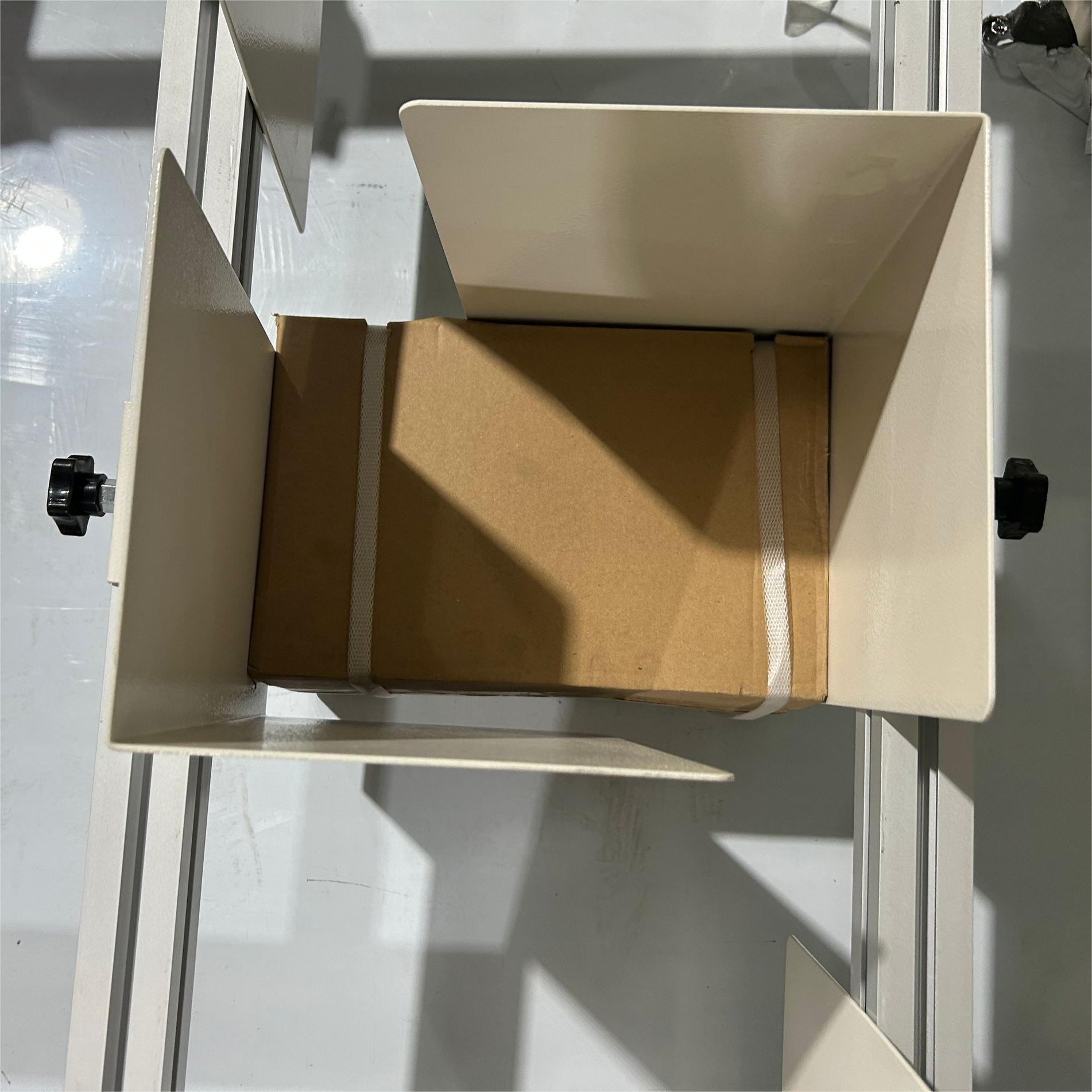

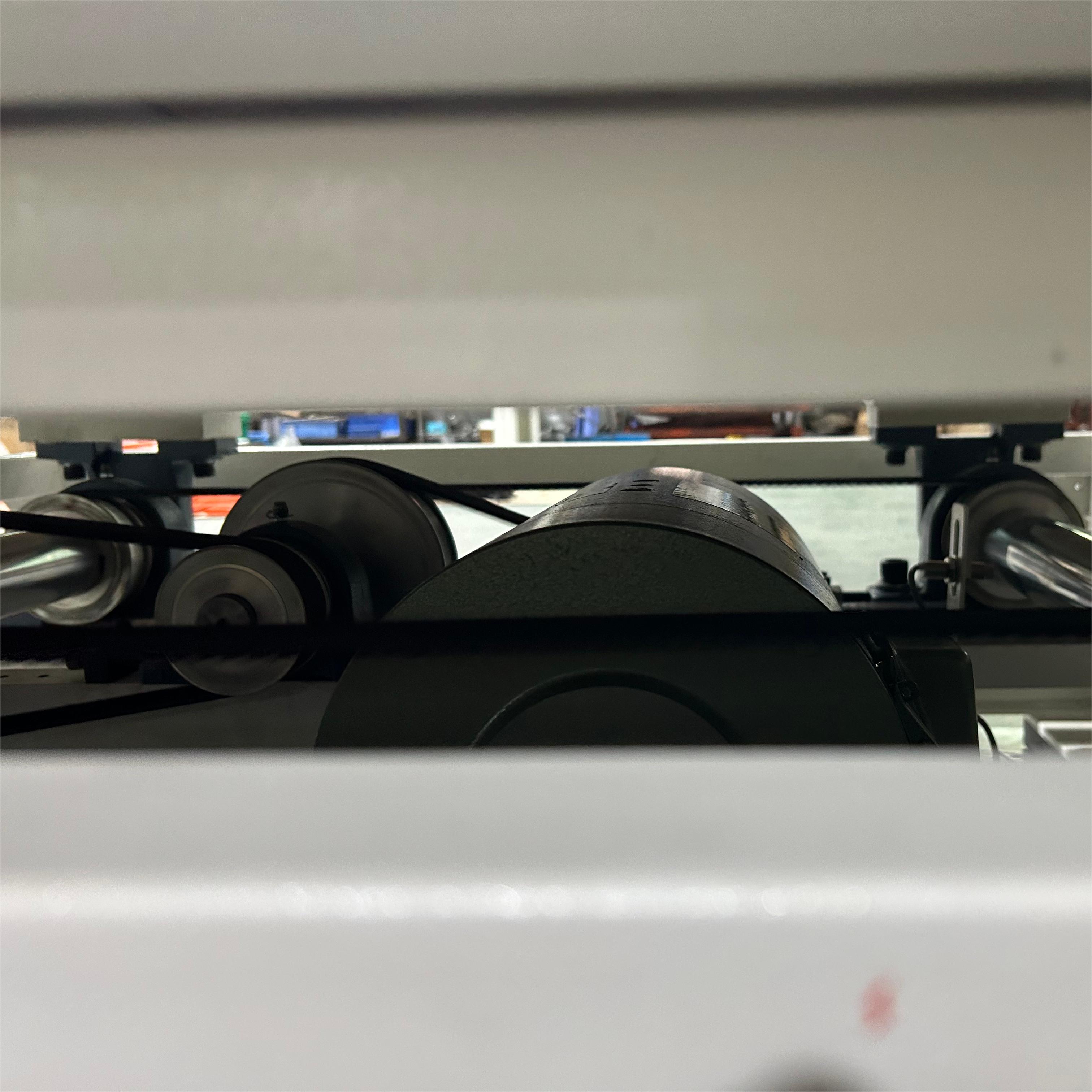

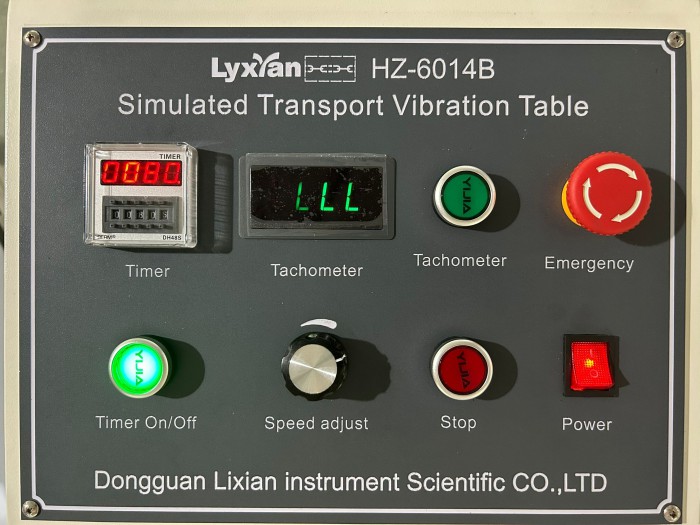

Digital instrument display vibration frequency; synchronous belt transmission mute, very low noise; test items using clamping rail type, easy to operate, safe; machine using heavy-duty channel steel base with anti-vibration pad, easy installation, smooth operation, without Install ground pin screw; DC motor speed control, running smoothly, load capability; rotary vibration (commonly known as Valley-type).


Applications Industry:

The machine applies to toys, electronics, furniture, gifts, ceramics, packaging and other products packaged to simulate the transport tests, in line with the United States and European transport standards.
