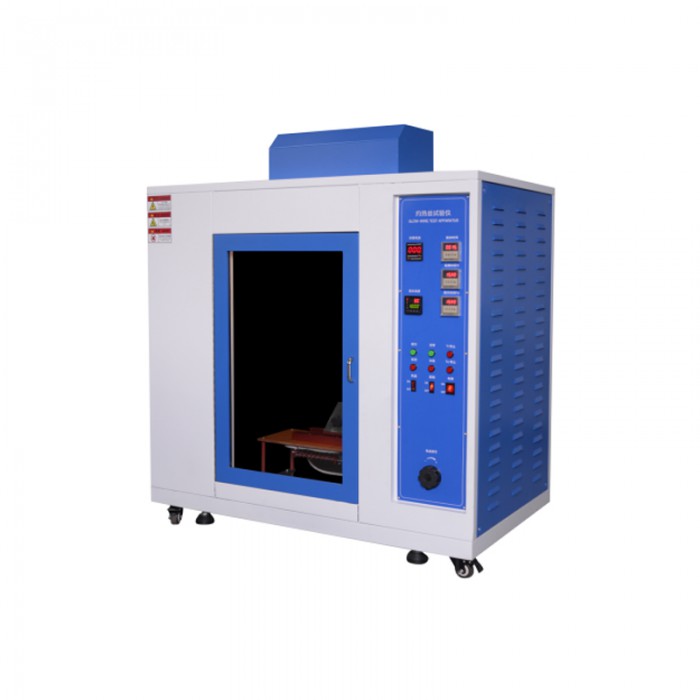

Glow Wire Tester HZ-7046
This test instrument is mainly used for electronic and electrical components or parts that may reach too high a temperature or ignite nearby parts under fault or overload conditions. The glow-wire test simulates the thermal stress caused by heat sources or ignition sources such as glowing components
  • Tel:+86 13711888650
  • Product Details

This test instrument is mainly used for electronic and electrical components or parts that may reach too high a temperature or ignite nearby parts under fault or overload conditions. The glow-wire test simulates the thermal stress caused by heat sources or ignition sources such as glowing components or overloaded resistors in a short period of time, and uses simulation technology to assess the fire hazard.


Comply with the following standards:

IEC60335-1 "Safety of Household and Similar Electrical Appliances"

GB4706.1-2005 "Safety of Household and Similar Electrical Appliances"

GB/T5169.10-11-2017 "Glow Wire Apparatus and General Test Methods" etc.


Technical parameters:

Box volume: ≥0.5 cubic meters, with glass observation door

Smoke exhaust device: including a set of exhaust pipes

Inner illumination: less than 20LUX

Glow wire temperature: adjustable from room temperature to 1100℃

Thermometer: intelligent temperature controller, with an accuracy of 0.5℃

Thermocouple: imported Ø1.0mm nickel-chromium armored (K type) imported thermocouple

Temperature tolerance: 500 ~ 750℃±5℃; 750 ~ 960℃±10℃

The force applied by the glow wire to the sample: 1.0 ± 0.2N, and the pressing depth is limited to 7mm± 0.5mm
