Product Details

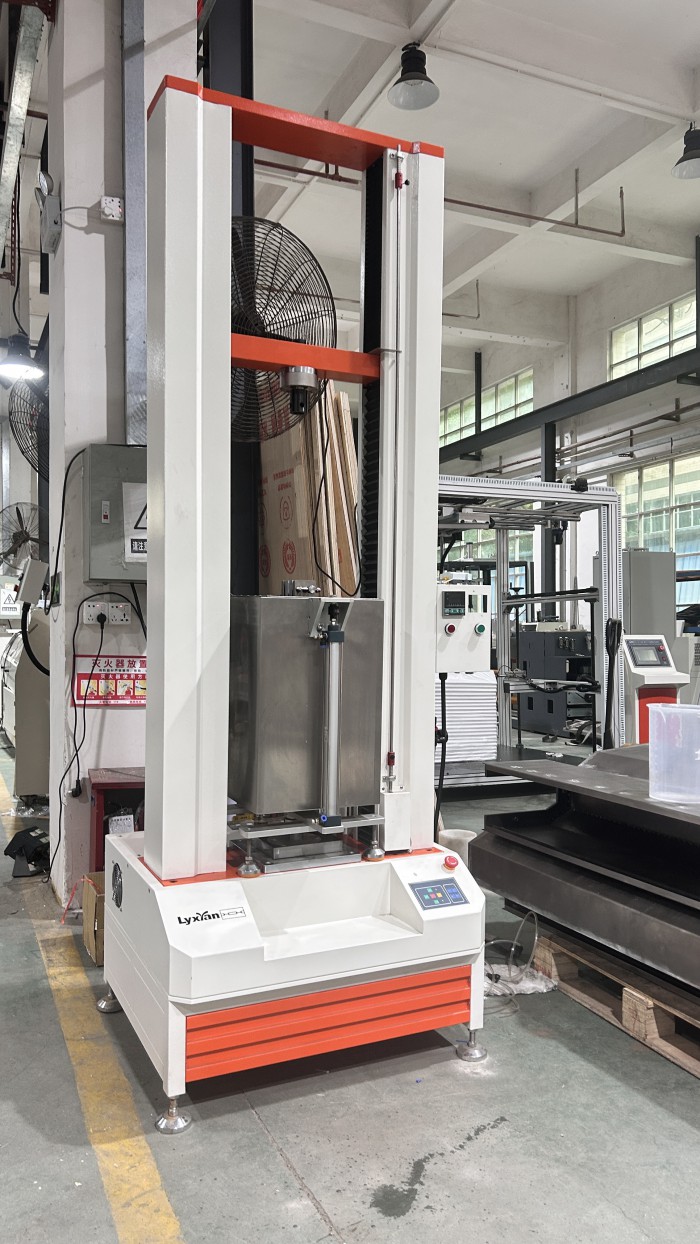

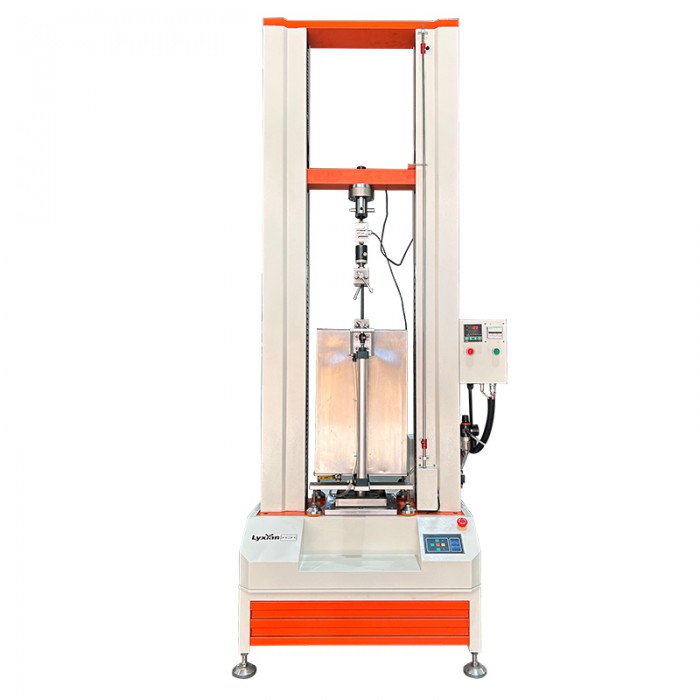

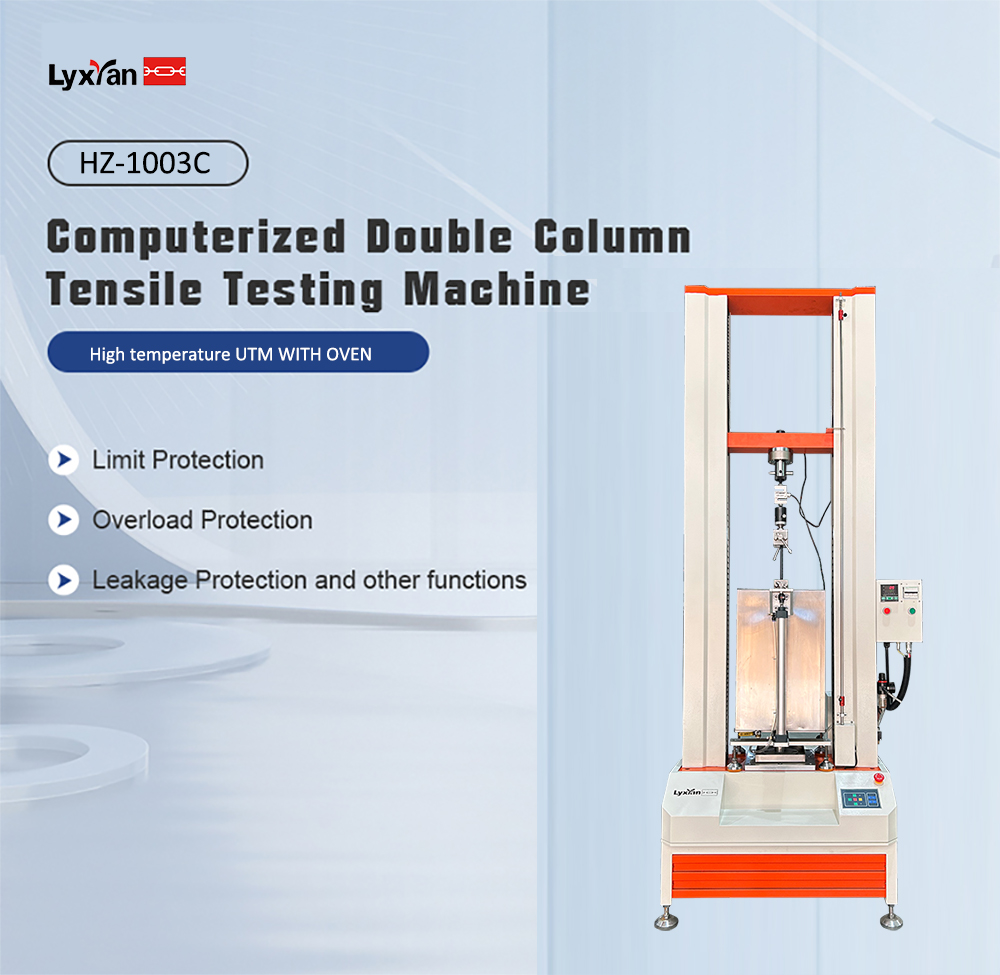

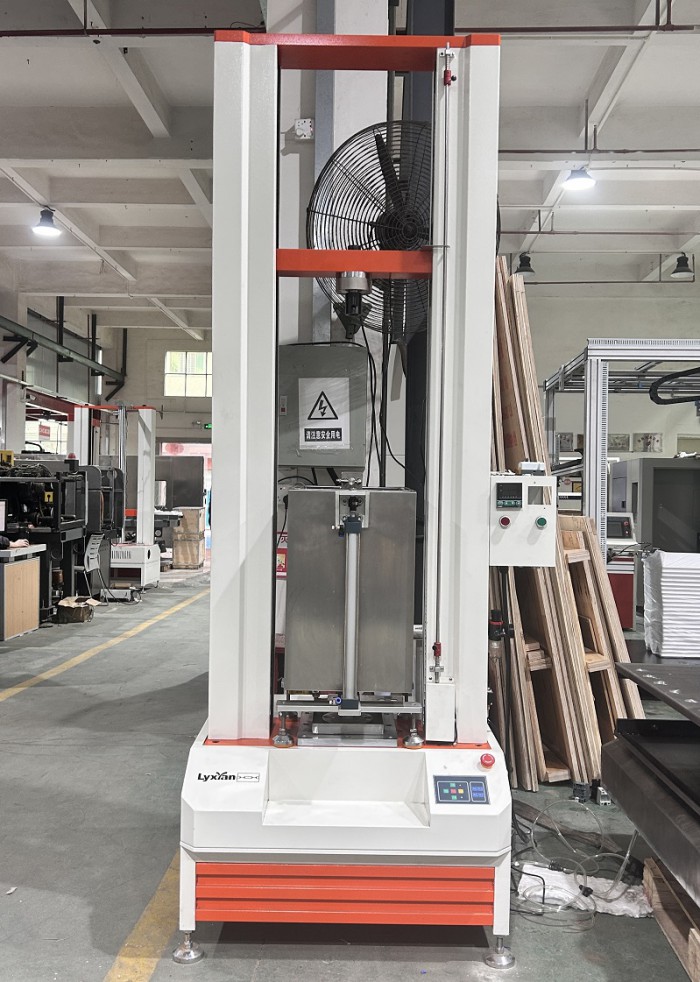

HZ-1003C computer-type servo universal material test machine is a new material test machine combining electronic technology and mechanical transmission. It has a broad and accurate load speed and measurement range, high accuracy and sensitivity for the measurement and control of load and displacement, and can also carry out equal speed loading and displacement automatic control test.With simple and convenient operation, especially suitable for the production line to control the product quality of testing instruments.This series of models is mainly suitable for the test load of less than 5KN.


Major Function

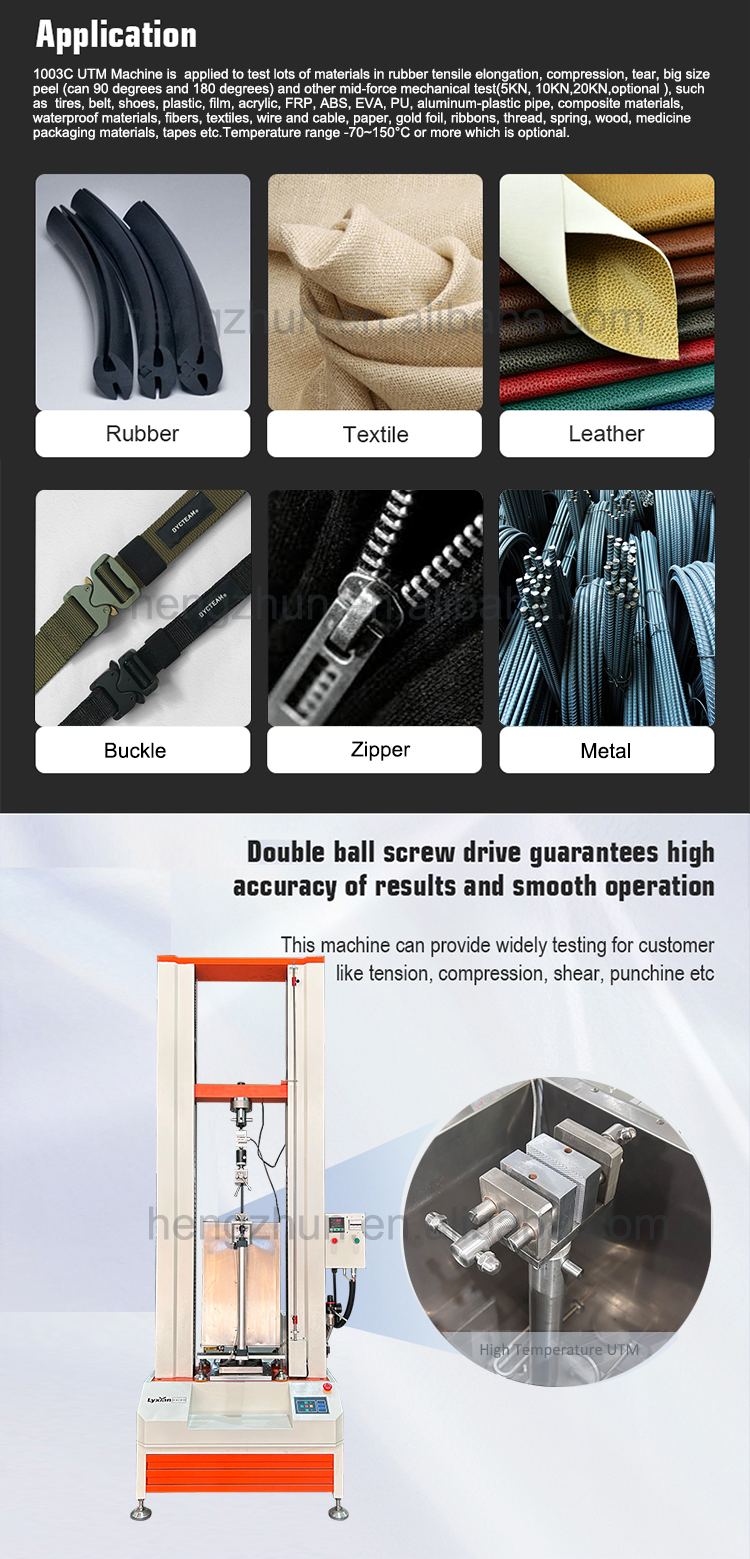

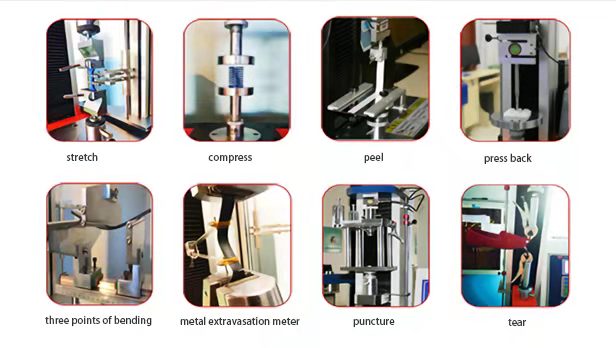

Mainly suitable for metal and non-metallic materials, such as rubber, plastic, wire and cable, optical fiber and cable, safety belt, leather belt composite, plastic profile, waterproof coil, steel pipe, copper, profile, spring steel, bearing steel, stainless steel (and other high hardness steel), casting, steel plate, strip, nonferrous metal wire in tensile, compression, bending, shear, stripping, tear, two point extension (fixture spacing calibration) and other tests.

Technical Parameter

Max load	5KN
Temperature range	Room temperature~100°C
Extensometer	Comply with Extensometer (options)
Control Mode	Force from 0.2% to 100% / from 0.4% to 100%
Weight	350KG
Accurate Grade	0.5 grade
Effective Measuring Range	Force from 0.2% to 100% / from 0.4% to 100%
Measuring Accuracy	the value ±1% / the value ±0.5%
Load Sensor	Basic configuration sensor max load: one
Effective Tensile Stoke	800mm (can be increased the tensile space according to customers requirement )
Testing Speed	From 0.01 to 500mm/min
Displacement Accuracy	Tolerance:±0.5% / tolerance: ±0.2%
Safety	Electronic-limit protection
Overload Protection	Overload 10%, automatic protection
Machine Dimension	80x55x220cm (LWH)
Motor	Taiwan “Delta” servo motor and drive
Power Supply	220V , 50HZ or according to the requirement

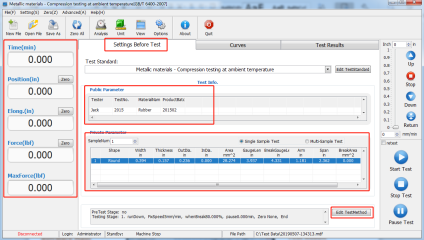

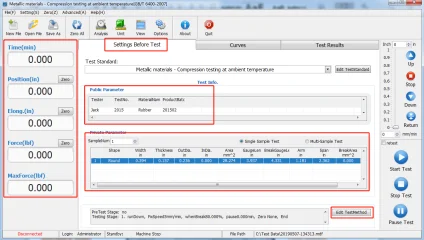

Software test main interface

~can set sample parameters, set fixed speed, locate shift, concentration and other tests ~Change the left side of the display of the software, optional maximum force, deformation, displacement, etc ~Test standards and test requirements can be edited

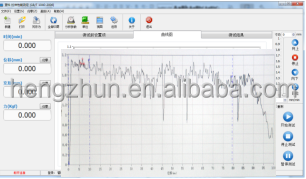

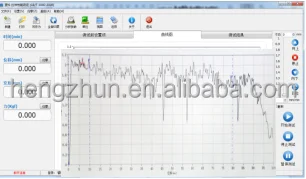

Software test curve

·Display the real-time test procedures, including force, time, elongation rate, etc.; ·Curve content can be set, X and Y axis content can be optional, can be set force, time, deformation, etc.;

·Multiple curve display can be added

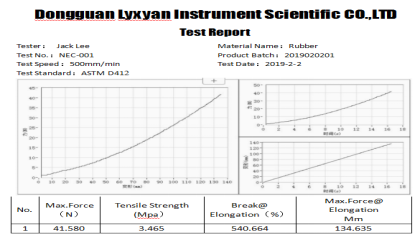

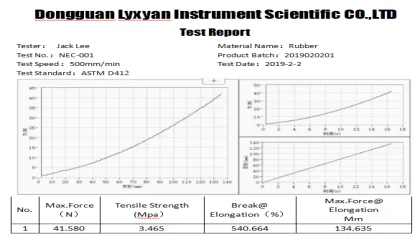

Test result

·Can output Word, Excel, PDF file test results

·Edit the company name, LOGO, etc

·Add what the test results want to display, such as:Maximum force, tensile strength, etc

More machine types


HZ-1007A	HZ-1007C	HZ-1007E	HZ-1003E	HZ-1005B	HZ-1005A
Max Force:200kg	Max Force:200kg	Max Force:100kg	Max Force:500kg	Max Force:500kg	Max Force:500kg

HZ-1003A	HZ-1004A	HZ-1009A	HZ-1010A	HZ-1009C	HZ-1009B
Max Force:3T	Max Force:500kg	Max Force:10T	Max Force:3T	Max Force:10T	Max Force:30T
