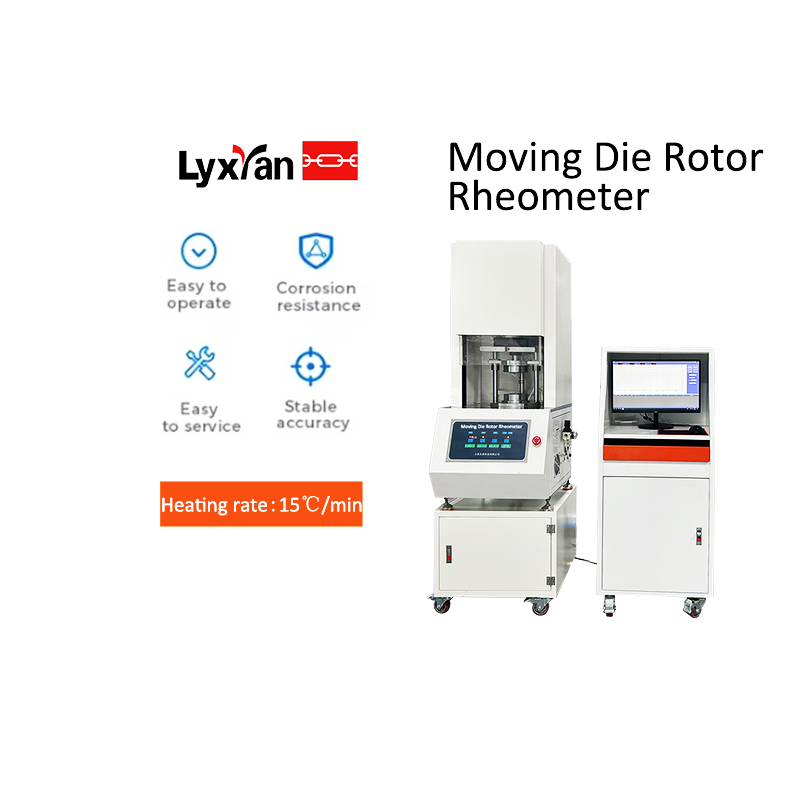

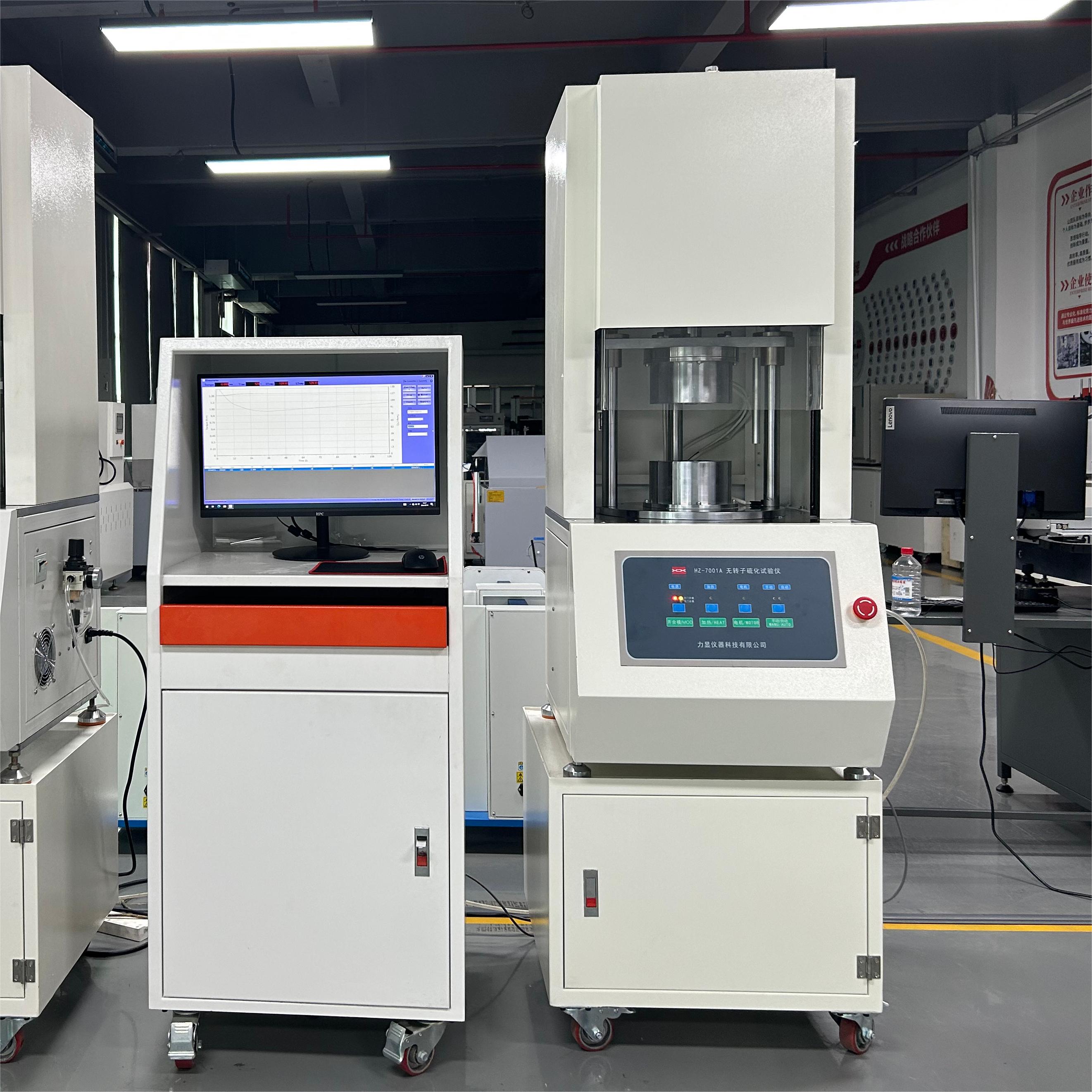

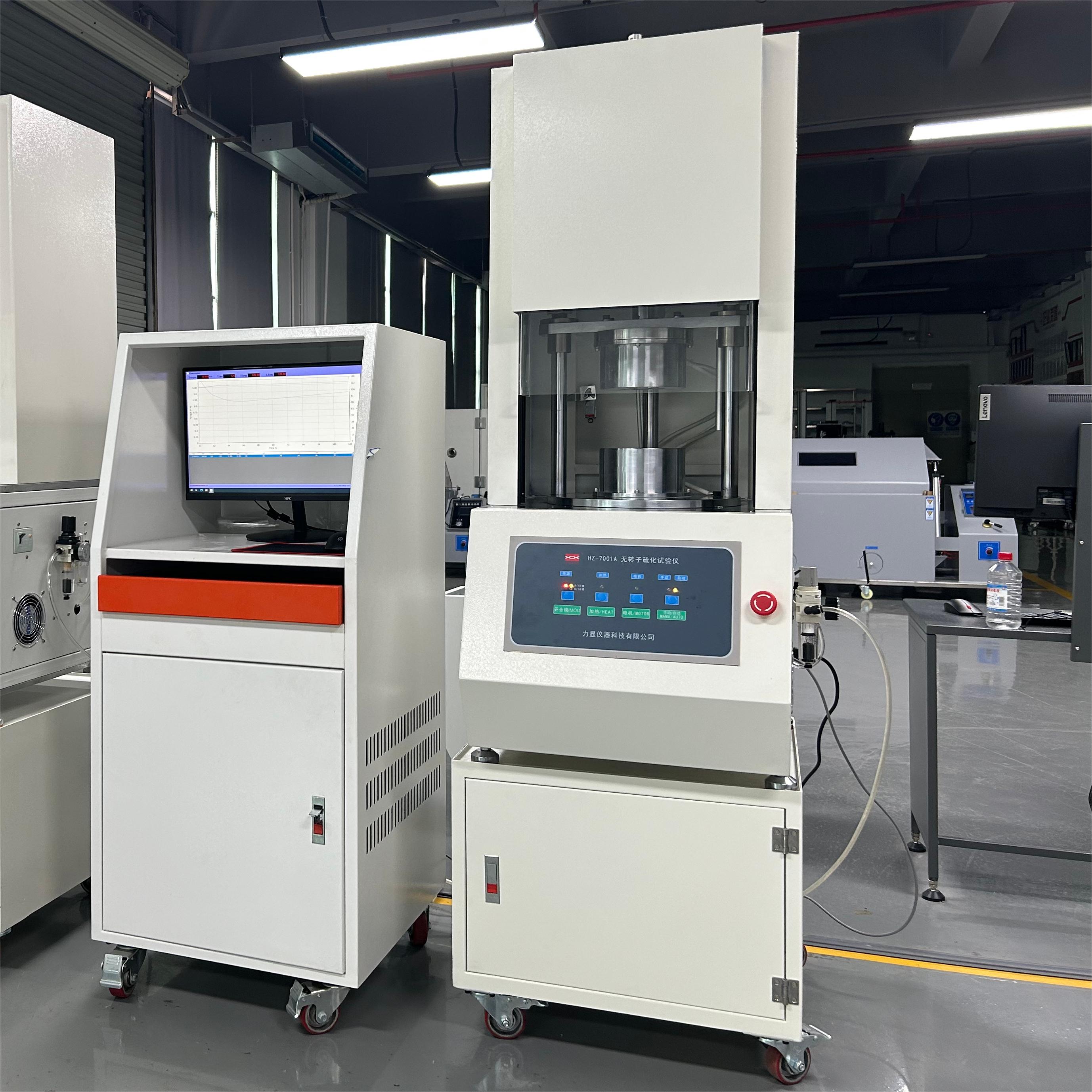

IS06502 Rubber Moving Die Rheometer equipment HZ-7001A
IS06502 Rubber Moving Die Rheometer equipment HZ-7001A is a widely used tester in rubber processing industry, rubber quality control and basic research rubber, For optimize formula of rubber provide accurate data, It can accurately measure the scorch time, rheometer time, sulfide index, the maximum and minimum torque and other parameters.
  • Tel:+86 13711888650
  • Product Details

Main functions:

HZ-7001A Moving Die Rheometer used monolithic rotor control, which include: host, temperature measurement, temperature control, data acquisition and processing, sensors and electrical chains and other components. These measurements, temperature control circuit consists of a temperature control device, platinum resistance, heater composition, capable of automatic tracking power and ambient temperature changes, automatically correct PID parameters to achieve fast and accurate temperature control purposes. Data acquisition system and mechanical linkage to complete the rubber vulcanization process of force torch signal automatic detection, automatic real-time display of temperature and settings. After curing, automatic processing, automatic calculation, print vulcanization curve and process parameters. Show curing time, curing power Ju, also has a variety of audible alert.

Features:

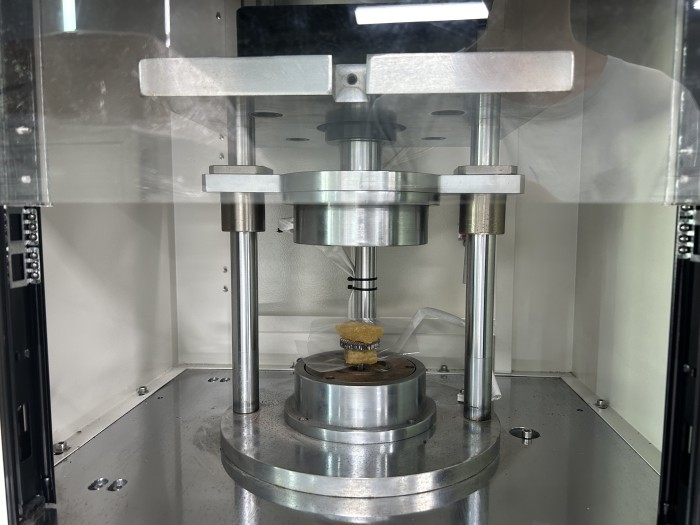

1. This instrument is really confined mold cavity, and the United States Alpha (formerly Monsanto) has done. Repeatability, and test data comparable with the Alpha. At the international leading position in the same industry.
2. The instrument development platform based on large databases, temperature control devices using the software to directly control and collection and processing. Instrument to overcome the general curing temperature of the shortcomings of using temperature controller (accuracy poor). The technical leadership of international new trend.
3. This instrument has statistics, analysis, storage and comparison functions. Humanized design, easy to operate
4. Using imported high-precision sensors

Corresponding standard:
Accord with IS06502


Technical parameter:

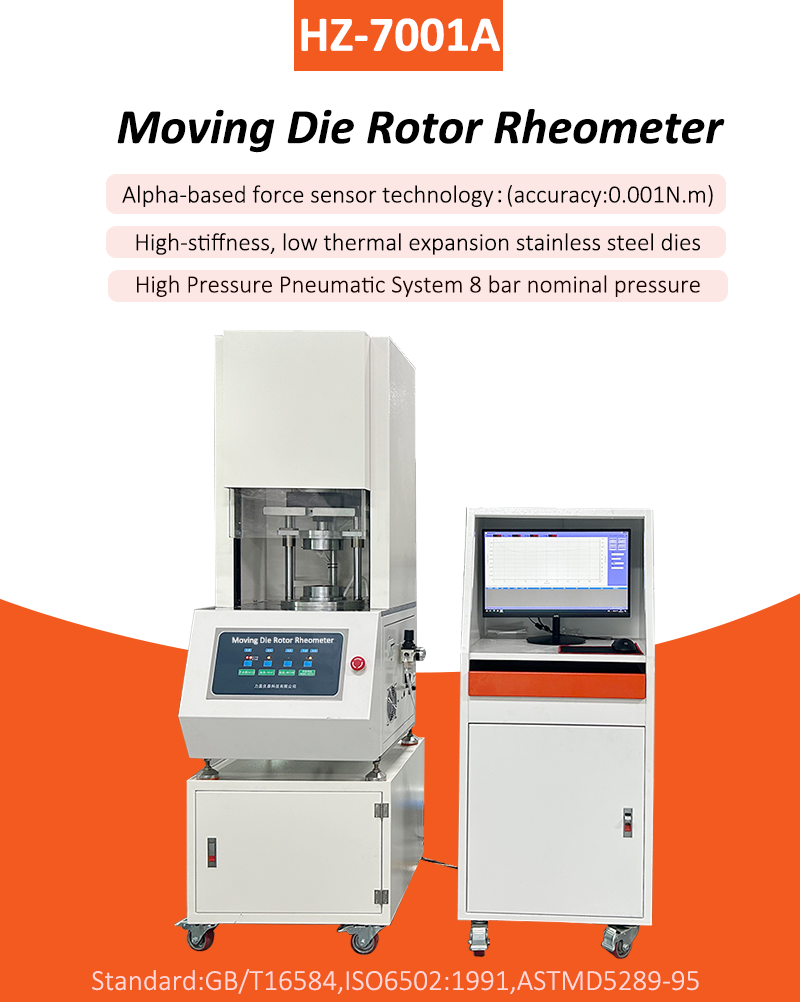

 Model HZ-7001A Moving Die Rheometer
 Temperature Room temperature to 200 Centigrade
 Heating-up 15 Centigrade/min
 Temperature fluctuation ≤ ±0.3 Centigrade
 Temperature resolution 0.1 Centigrade
 Torque range 0-5N.M、0-10N.M、0-20N.M
 Torque resolution 0.001NM
 Power 50HZ, ~220V±10%
 Pressure ≈0.4Mpa
 Air-pressure requirment 0.5Mpa--0.65MPa (user prepare the dia 8 trachea)
 Environment temperature 10 Centigrade--20 Centigrade
 Humidity range 55--75%RH
 Compressed air 0.35-0.40Mpa
 Swing frequency 100r/min (about 1.67HZ)
 Swing angle ±0.5 Centigrade, ±1 Centigrade, ±3 Centigrade
 Printing date, time, temperature, vulcanization curve, temperature curve,
 ML, MH, ts1, ts2, t10, t50, Vc1, Vc2.
