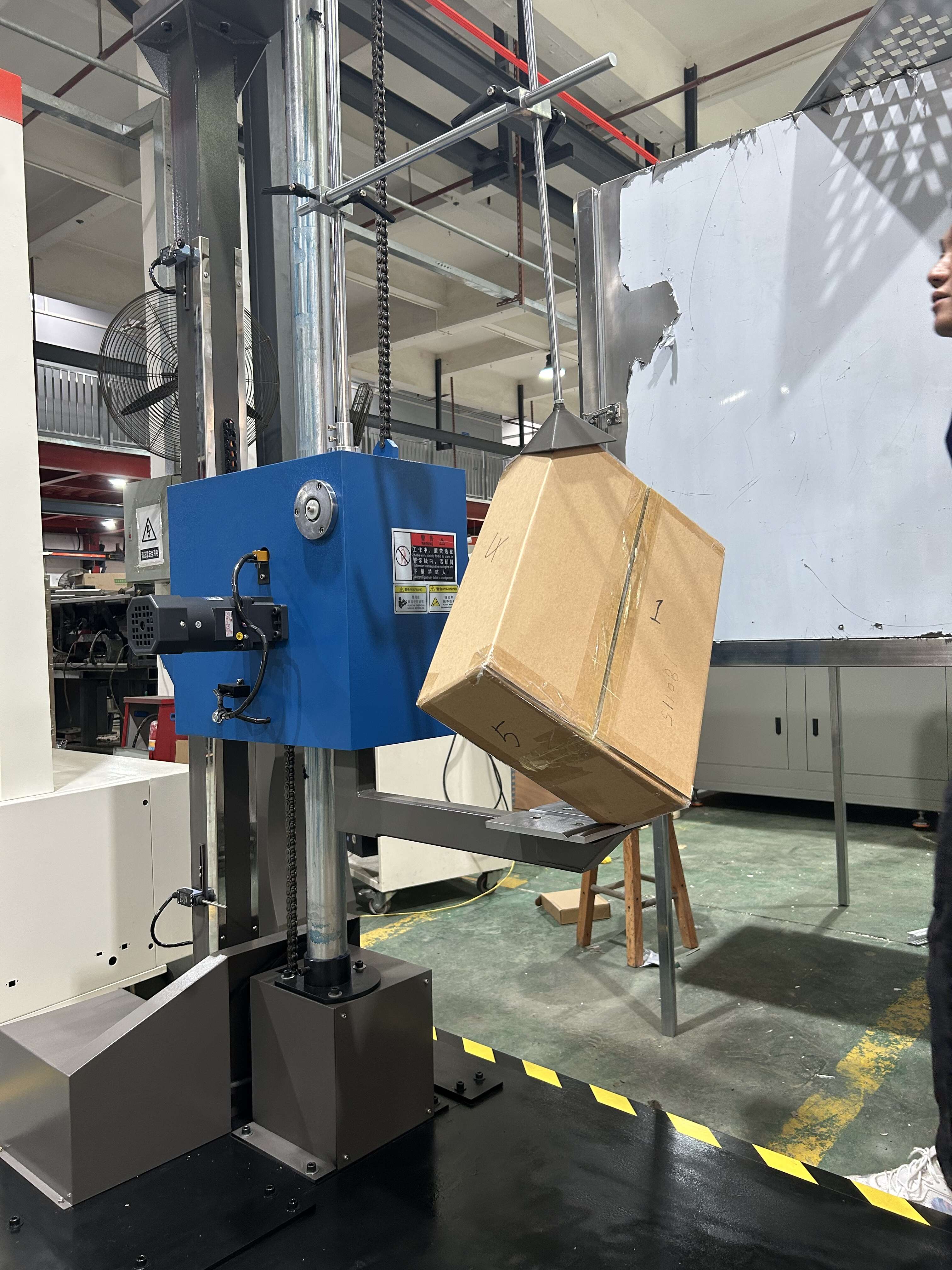

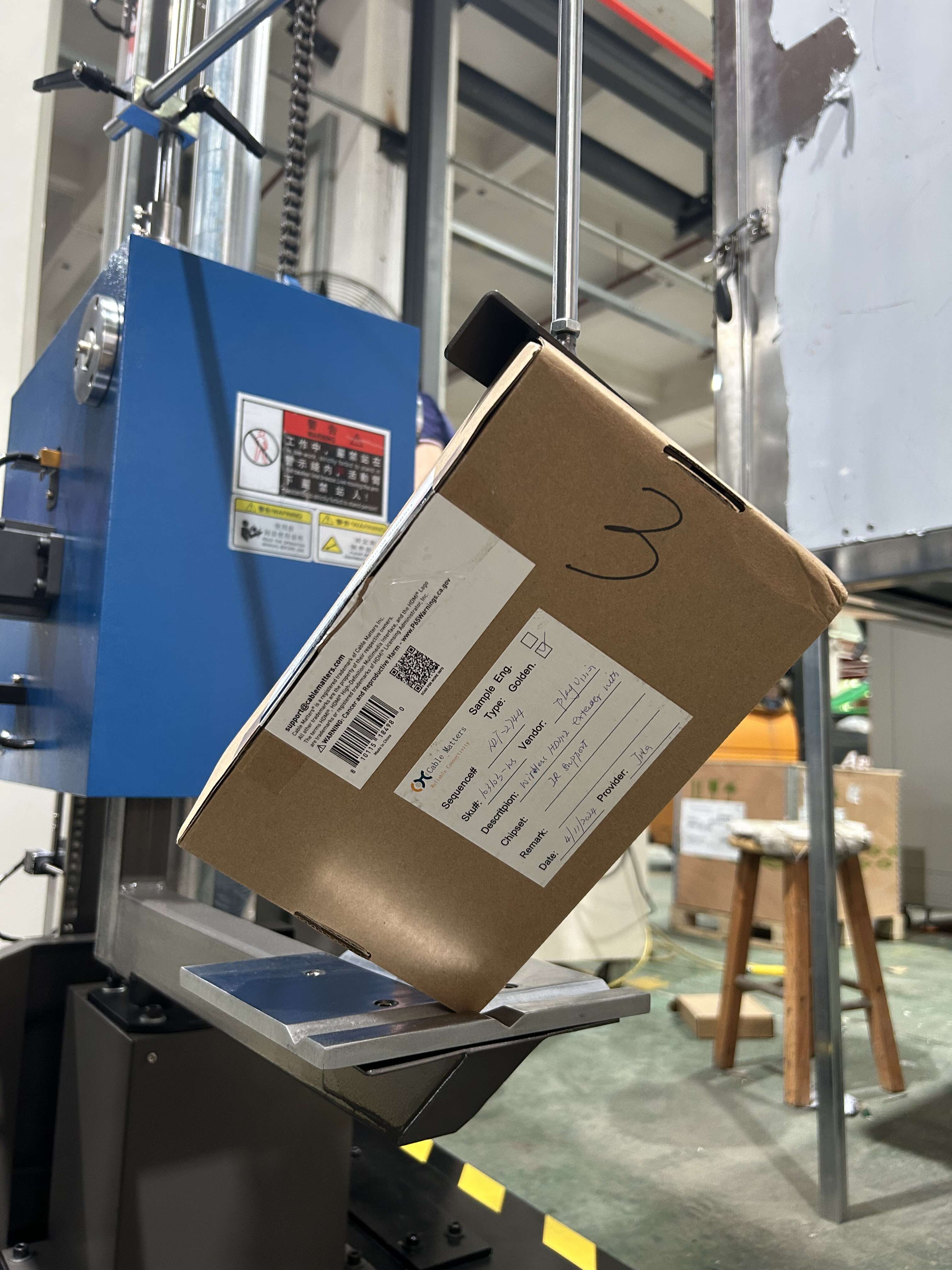

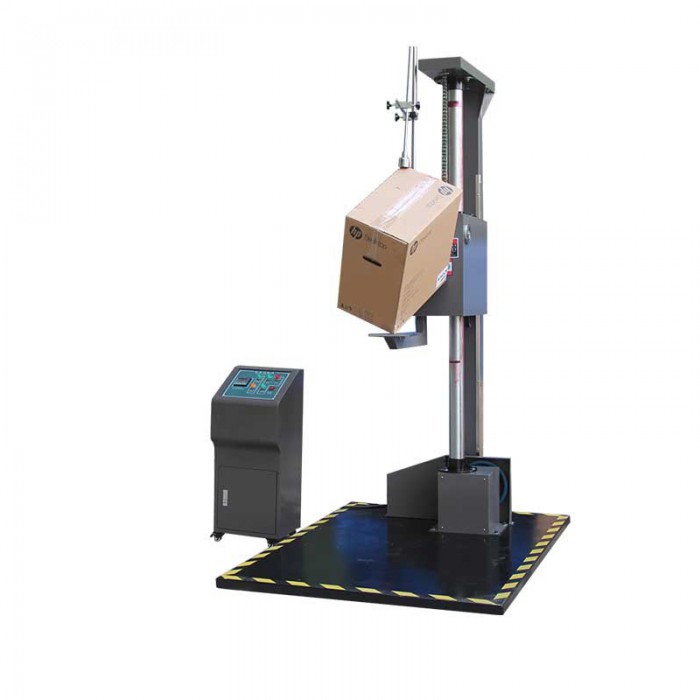

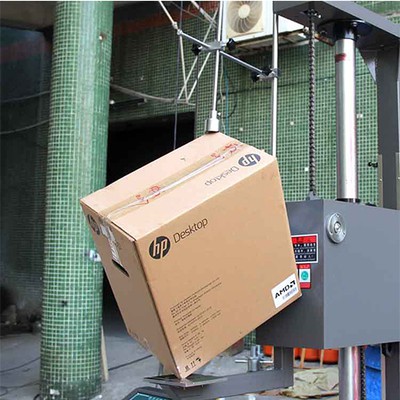

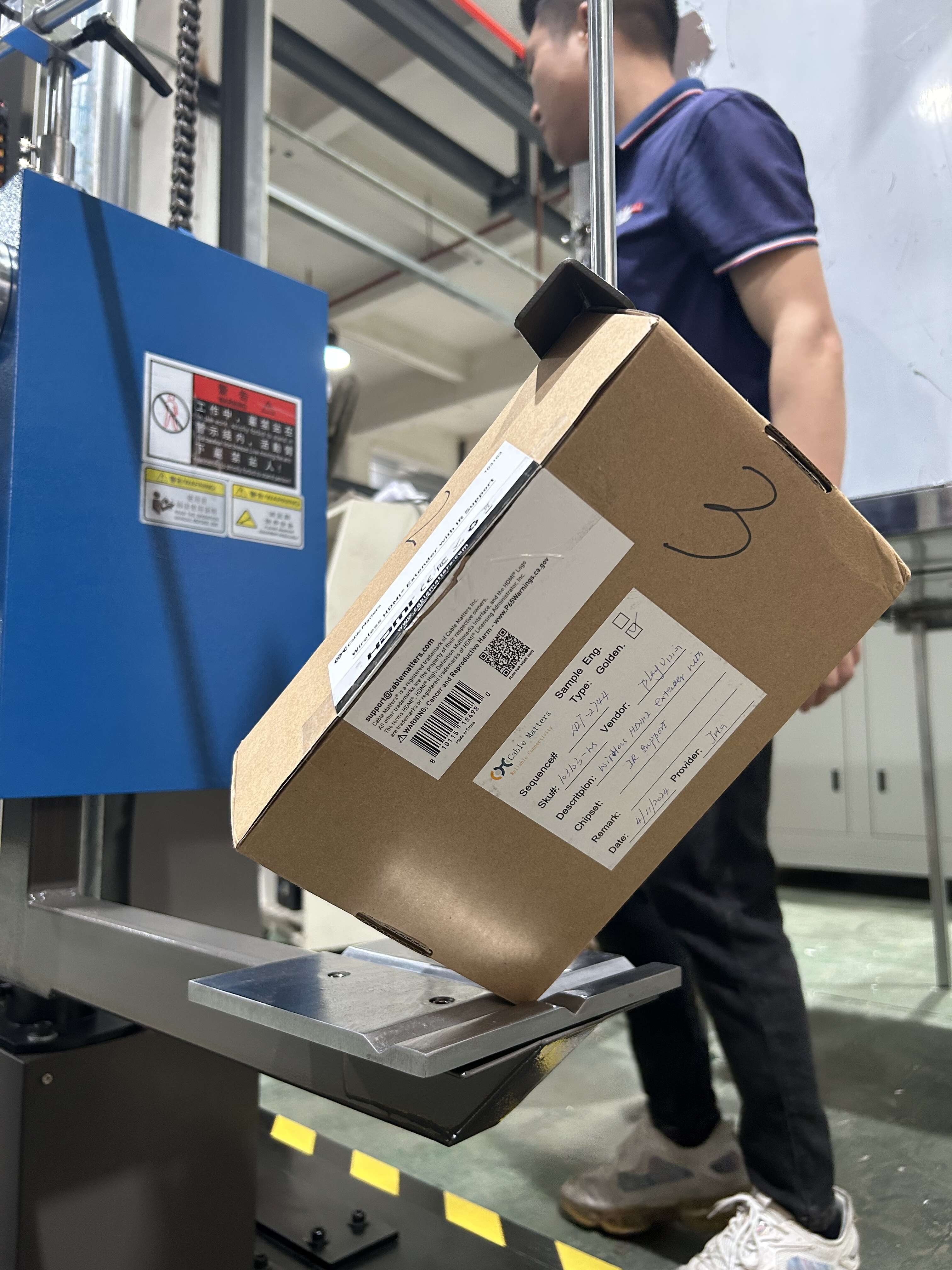

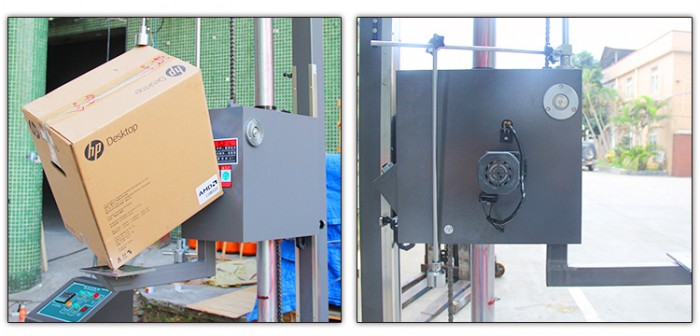

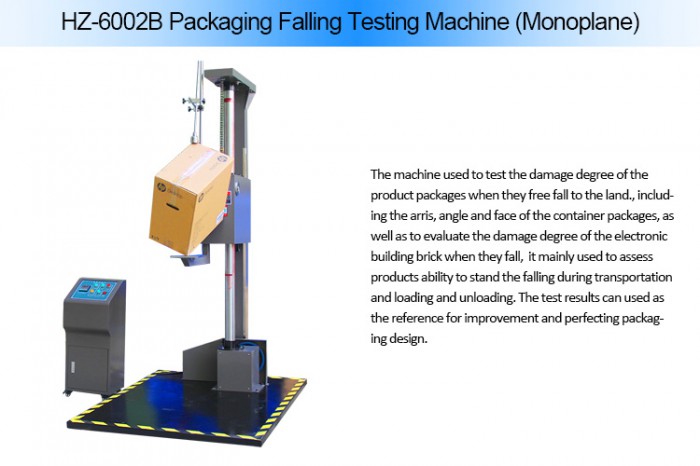

Paper packaging drop test machine (single wing type) HZ-6002B
Product Overview:The packaging drop tester is used to test the degree of damage of various products after free fall after packaging. It can test the diamonds, corners and surfaces of the packaging container, and evaluate the impact resistance of electronic components when they are dropped during tra
  • Tel:+86 13711888650
  • Product Details

Product Overview:

The packaging drop tester is used to test the degree of damage of various products after free fall after packaging. It can test the diamonds, corners and surfaces of the packaging container, and evaluate the impact resistance of electronic components when they are dropped during transportation. It is mainly used to assess the ability of product packaging to withstand drops during transportation and loading and unloading, so as to improve and perfect the packaging design.


Standards met:

GB/T4857.5-92 ISO2248-1985(E) GB/T2423.8 IEC68-2-27, etc.

Applicable industries:

Suitable for various factories, enterprises, technical supervision departments, commodity inspection agencies, scientific research institutes, colleges and universities, etc. Ideal testing and research equipment


Technical parameters:


Model

HZ-6002B

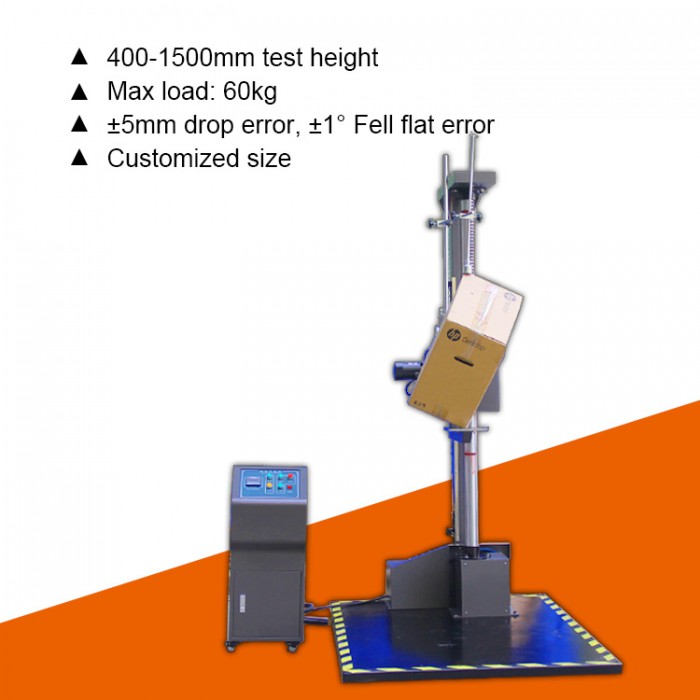

Test height

40~150cm

Maximum weight of specimen

60Kg

Maximum size of specimen

600*600*600mm

Single arm support length

42 cm

Vertical acceleration value of the center of the pallet

 2g

Parallel error between the pallet and the impact panel

 2°

Angle error between the falling surface of the package and the horizontal during the falling process

 2°

Drop error

±5mm

Drop height

Lift the package in the predetermined state, and the error between the lifting height and the predetermined drop height shall not exceed ±2% of the predetermined height or 5mm (whichever is greater).

Support device

The device supporting the test sample should be able to keep the test sample in the required predetermined state before release

Release device

During the release of the test sample, the test sample should not touch any part of the device to ensure its free fall

Falling plane error

1°

Power supply

1∮220V

Machine size

1570×1100×2350 mm(长×宽×高)

Machine weight

200 kg
