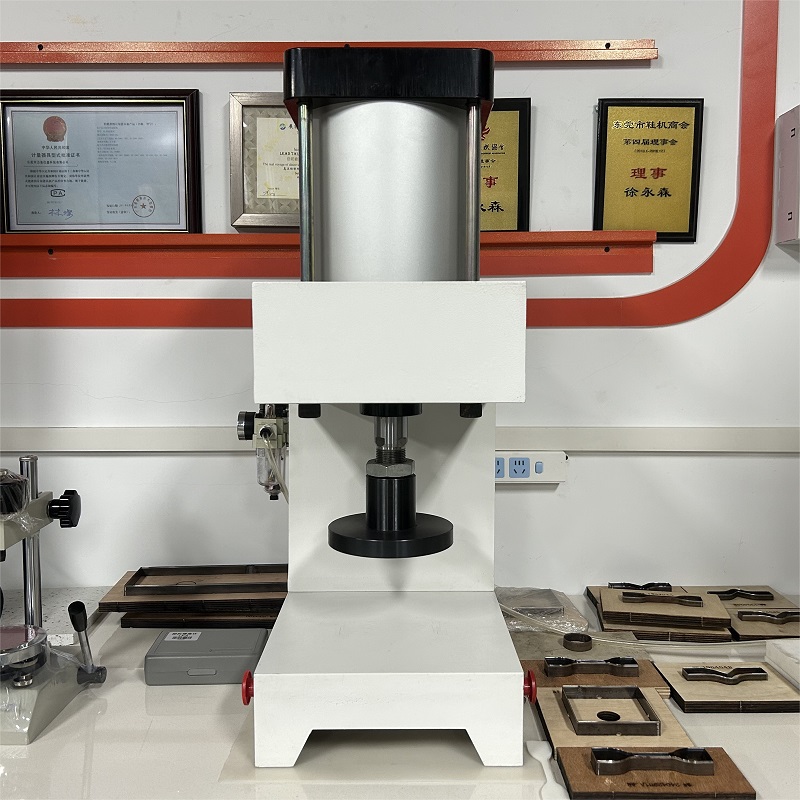

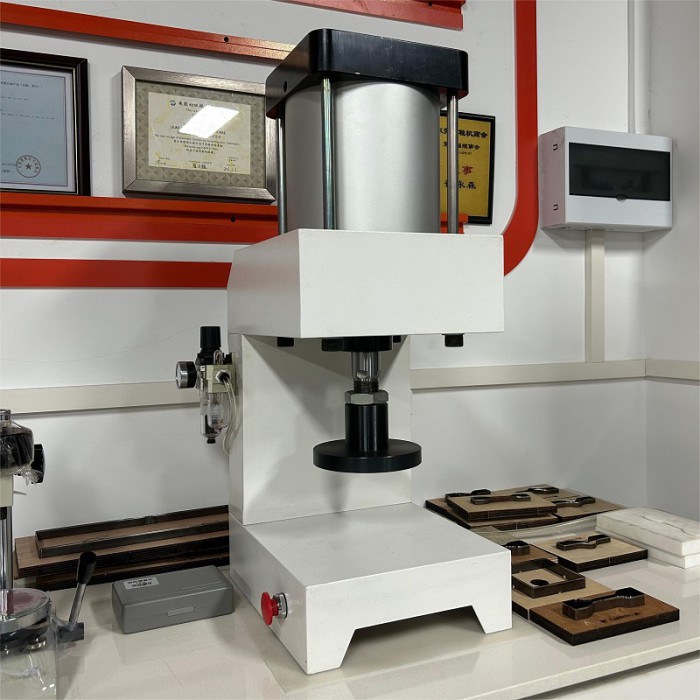

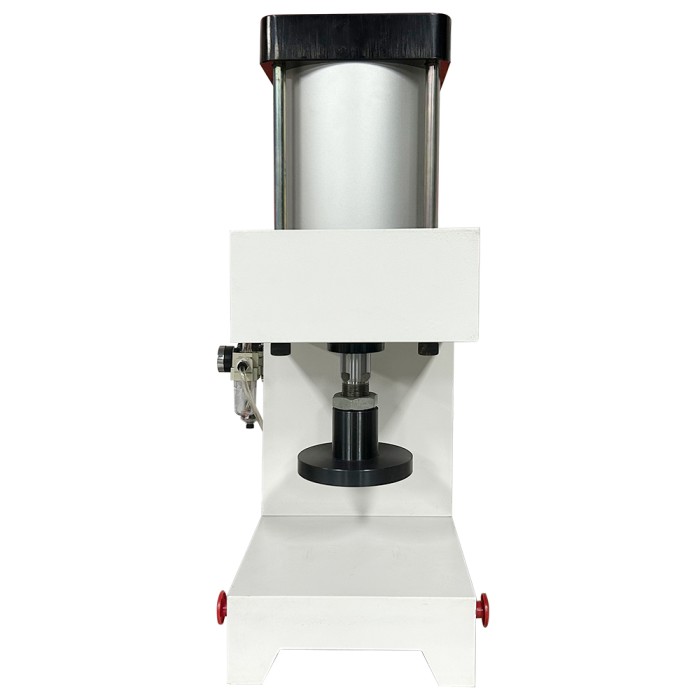

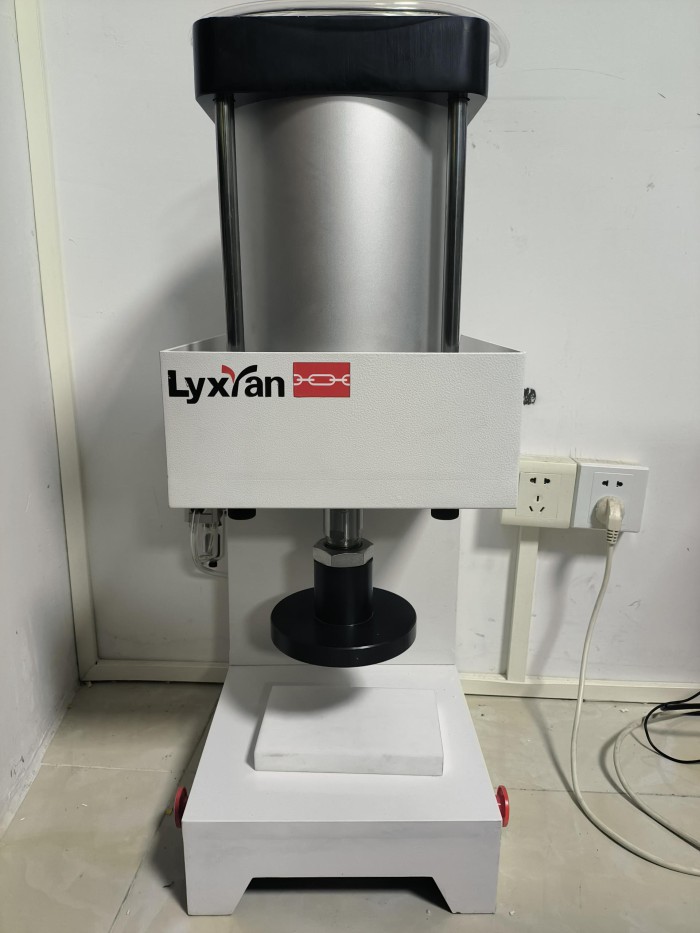

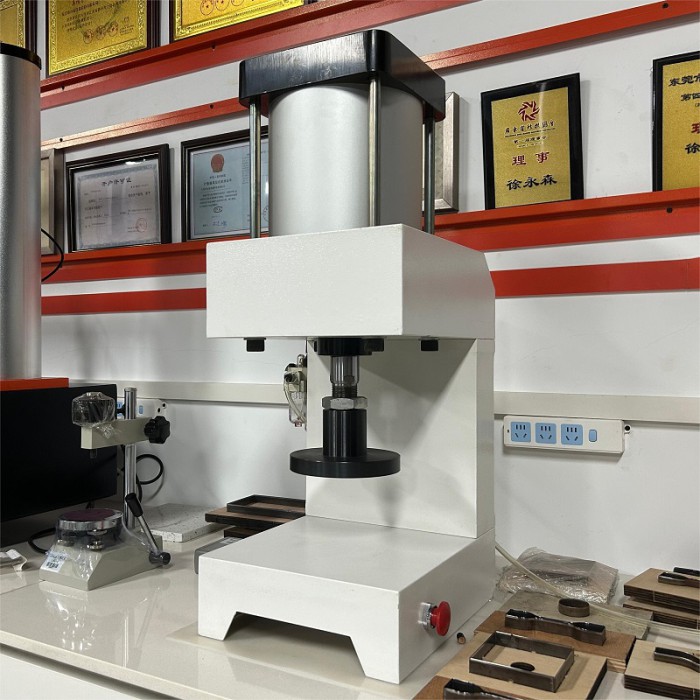

Rubber Sample Pneumatic slicer equipment HZ-7040
Rubber Sample Pneumatic slicer equipment HZ-7040 uses pneumatic cut all kinds of specimens for laboratory cut rubber, plastics, leather. Test with dumbbell specimens, and other special materials, can also act as small presses.
  • Tel:+86 13711888650
  • Product Details

Equipment Overview

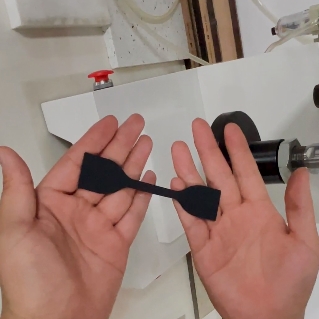

Pneumatic cut specimen machine uses pneumatic cut all kinds of specimens for laboratory cut  rubber,  plastics,  leather. Test with dumbbell specimens, and other special materials, can also act as small presses.



Feature

  1. Pneumatic Rubber Sample Cutting Machines is equipped with a steel base. Customer does not need to prepare the working table.

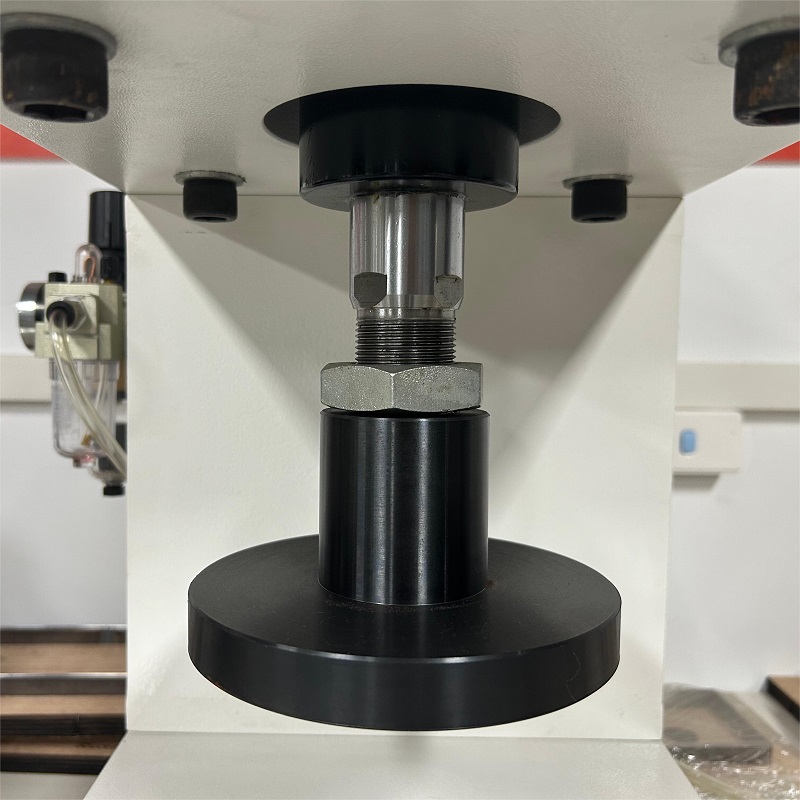

  2. Pneumatic Rubber Sample Cutting Machines adopts the rectangle compression platen , which is install with four guide rods. That is aimed to ensure the parallelism between compression platen and workbench and keep stable during running.

  3. Using air cylinder with engine bore. It can provide pressure of 1T at the gas pressure.

   4.Equipped with dual boot switch, in order to keep safety of operator.




Technical Parameters



Capacity1T
Output sourceMin.5kg/cm2
Pneumatic cylinder stroke50mm
Cut thickness15mm
Effective use space400×350×100mm
Volumeabout 47×40×70cm
Weightabout 95kg
Standard equipment1.a air compressor

2.2 dumb knives
