In the adhesives and sealants industry, bond performance is the ultimate measure of product reliability. From structural adhesives used in automotive assembly and electronics manufacturing to pressure-sensitive tapes for packaging and medical applications, every adhesive bond must withstand specified mechanical stresses throughout its service life. At Guangdong Lixian Instruments Co., Ltd. , we provide advanced testing equipment engineered to meet the rigorous demands of adhesive quality assurance. Our HZ-1007E Desktop Computer Servo Universal Testing Machine delivers precise, repeatable, and standards-compliant mechanical testing for all adhesive materials, helping manufacturers validate bond integrity, optimize formulations, and ensure long-term performance -
Why Adhesive Testing is Essential for the Bonding Industry
Adhesives are complex formulations whose performance depends on precise interactions between chemistry, substrate, and application conditions. Without rigorous mechanical validation, manufacturers risk inconsistent bond strength, premature debonding, and field failures that can compromise product safety and brand reputation. The HZ-1007E Desktop Computer Servo Testing Machine from Guangdong Lixian Instruments Co., Ltd. addresses these challenges through comprehensive mechanical characterization, enabling manufacturers to assess critical parameters essential for adhesive evaluation.

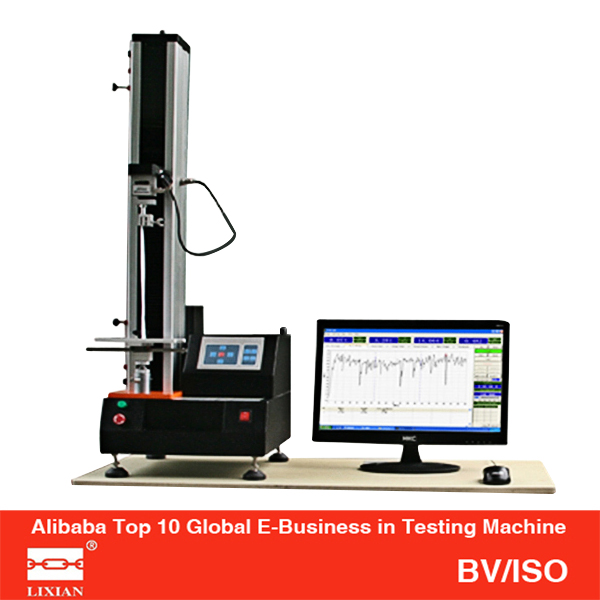

Key Features of the HZ-1007E Desktop Computer Servo Universal Testing Machine
Advanced Servo Control Technology: The HZ-1007E utilizes a high-performance Taiwan Delta AC servo motor and driver, driving the crosshead through a precision transmission mechanism for stable, accurate load application. The entire control system offers high reliability and smooth, consistent operation, ensuring test accuracy across the full test speed range of 0.001 to 500 mm/min -4-7.
High-Precision Force Measurement: Equipped with high-accuracy load sensors available in capacities from 50N to 1000N (50N, 100N, 200N, 500N, 1000N options), the system achieves force control accuracy of ±0.5% of indicated value (0.5-class accuracy), ensuring every data point is reliable and repeatable. With resolution of 1/200,000 of full load, the machine detects even subtle variations in adhesive bond strength -1-7.
Comprehensive Testing Capabilities for Adhesives: The HZ-1007E supports a full range of mechanical tests essential for adhesive evaluation:
180-degree peel strength testing for tapes, labels, and flexible bonded materials (per ASTM D3330, GB/T 2792) -6-9
90-degree peel strength testing for rigid substrate adhesion evaluation
Tensile shear strength testing for structural adhesives
T-peel testing for flexible-to-flexible bonded assemblies
Tensile bonding strength for adhesive films and pressure-sensitive materials
Compression testing for sealants and gap-filling adhesives
Specialized Adhesive Testing Fixtures: The system accommodates interchangeable fixtures designed specifically for adhesive samples—including 90° and 180° peel test fixtures, ensuring proper alignment and reliable results for bond strength evaluation -6.
Intelligent Computerized Control & Software: The system features full microcomputer control throughout the testing process, with real-time dynamic display of load values, displacement values, deformation, test speed, and test curves. The Windows-based testing software provides powerful data and graphics processing capabilities, automatically calculating key parameters including maximum force, tensile strength, peel strength, elongation at break, and more. Test results are automatically saved, and complete test reports with curves can be immediately printed -4.
Comprehensive Safety Features: Equipped with electronic limit protection, overload protection (automatic shutdown at 10% over capacity), emergency stop, and travel limit functions to ensure operator safety and equipment protection during all test procedures -4-7.
Technical Specifications at a Glance
| Parameter | Specification |
|---|---|
| Model | HZ-1007E Desktop Computer Servo Universal Testing Machine |
| Maximum Load | 50N, 100N, 200N, 500N, 1000N (selectable) -1-7 |
| Accuracy Class | 0.5 class (optional 1.0 class) -1-7 |
| Load Measurement Accuracy | ±0.5% of indicated value (0.5 class) -1-7 |
| Resolution | 1/200,000 of full load, constant throughout range -4-7 |
| Test Speed Range | 0.001 – 500 mm/min, fully adjustable -4-7 |
| Effective Tensile Space | 400mm or 500mm options (customizable) -1-4 |
| Effective Test Width | 60mm (clearance to sensor center) -4-7 |
| Drive System | Taiwan Delta AC servo motor + driver -4-7 |
| Control System | Microcomputer control with Windows software -4 |
| Safety Features | Electronic limit protection, overload protection, emergency stop -4 |
| Host Dimensions | 350 × 400 × 1000 mm (L×W×H) -4-7 |
| Host Weight | Approx. 25-70 kg (depending on configuration) -6-7 |
| Power Supply | 220V, 50Hz -4-7 |
Standards Compliance for Global Acceptance
The HZ-1007E Desktop Computer Servo Universal Testing Machine supports testing in accordance with key international and national standards for adhesive materials:
ASTM D3330 – Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape -9
GB/T 2790 – Adhesives – 180° peel strength test method for flexible-to-rigid bonded assemblies -6
GB/T 2791 – Adhesives – T-peel strength test method for flexible-to-flexile bonded assemblies -6
GB/T 2792 – Test method for peel strength of adhesive tapes -6
JIS K 6854 – Adhesives – Determination of peel strength of bonded assemblies -6-9
ISO 11339 – Adhesives – T-peel test for flexible-to-flexible bonded assemblies
ASTM D1876 – Standard Test Method for Peel Resistance of Adhesives (T-peel test)
Applications Across the Adhesive Industry
The HZ-1007E serves diverse applications throughout adhesive manufacturing and quality control -1-3-4:
Pressure-Sensitive Adhesives: Testing tapes, labels, and films for peel adhesion (180° and 90°) per ASTM D3330
Structural Adhesives: Evaluating epoxies, polyurethanes, and acrylics for tensile shear strength
Packaging Adhesives: Validating seal strength for food, pharmaceutical, and industrial packaging
Medical Adhesives: Testing skin-contact tapes, bandages, and surgical adhesives for bond performance
Automotive Adhesives: Evaluating vibration-resistant bonds for interior trim and structural assemblies
Electronics Adhesives: Testing PCB bonding adhesives and display panel tapes
A Trusted Partner in Precision Testing
As a leading manufacturer of testing instruments and detection equipment, Guangdong Lixian Instruments Co., Ltd. combines decades of instrument R&D experience with deep industry knowledge. Every HZ-1007E undergoes strict quality inspection, performance testing, and validation before shipment, guaranteeing stable and reliable long-term operation in demanding laboratory or production environments -2-6.
Comprehensive Customer Support
Beyond high-quality testing equipment, Guangdong Lixian Instruments Co., Ltd. provides complete support to ensure your success:
12-month product warranty with lifetime service support
Pre-sales consultation: Expert guidance to select appropriate test methods and equipment parameters based on your specific adhesive materials and quality requirements
Installation and training: On-site commissioning and operation training to ensure your team quickly masters equipment use
After-sales service: Professional maintenance team providing timely repairs, spare parts replacement, and technical support
Customized test protocols: Assistance in developing test programs that meet specific ASTM, ISO, or customer requirements
Test with Confidence, Bond with Certainty
In the competitive adhesive industry, where bond performance directly impacts product reliability and customer satisfaction, only manufacturers who rigorously validate mechanical properties can earn customer trust and maintain competitive advantage. The HZ-1007E Desktop Computer Servo Universal Testing Machine from Guangdong Lixian Instruments Co., Ltd. offers the precision, reliability, and standards compliance needed to ensure your adhesives meet the most demanding performance requirements—from initial bond formation through years of service life.
Contact Guangdong Lixian Instruments Co., Ltd. today to learn more about how our universal testing equipment can enhance your adhesive material evaluation processes. Request a detailed technical specification, arrange a product demonstration, or consult with our application specialists to discuss your specific testing requirements.
Guangdong Lixian Instruments Co., Ltd. — Precision Engineered for Bonding Excellence.
