In the packaging and printing industry, the integrity of your packaging is the last line of defense between your products and the challenges of the supply chain. From the warehouse floor to the delivery truck, corrugated boxes and containers endure stacking pressures, vibration, and handling stresses that can compromise both the package and its contents. At Guangdong Lixian Instruments Co., Ltd. , we provide precision testing equipment engineered to meet these critical quality assurance needs. Our HZ-6001A Box Compression Tester delivers accurate, repeatable, and standards-compliant compression testing, helping packaging manufacturers validate structural integrity, optimize material usage, and ensure product protection throughout the distribution cycle .
Why Box Compression Testing is Essential for Packaging & Printing Materials
Box compression testing, also known as BCT (Box Crush Test), is a fundamental method for evaluating the compressive strength of fiberboard packaging, particularly corrugated boxes and containers -4. This test simulates the stacking pressures experienced during storage and transportation, providing critical data on how packaging will perform under real-world conditions -4. Without rigorous validation, manufacturers risk:
Package collapse under warehouse stacking loads, damaging contents
Insufficient stacking strength leading to crushed boxes in transit
Material over-engineering resulting in unnecessary costs
Inconsistent performance from batch-to-batch variations in board quality
Non-compliance with customer specifications and international standards
The HZ-6001A Box Compression Tester from Guangdong Lixian Instruments Co., Ltd. simulates these conditions in a controlled laboratory environment, enabling manufacturers to predict packaging performance, validate designs, and ensure compliance with global standards -1.

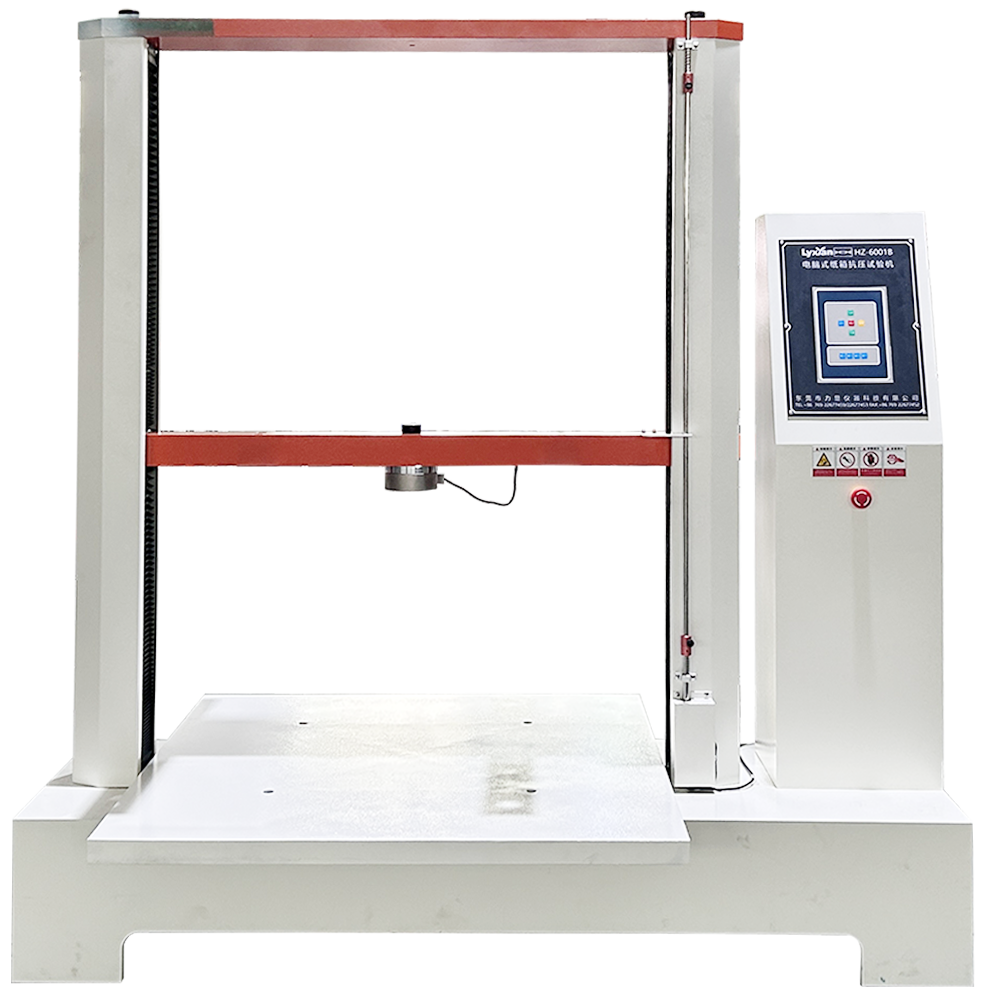

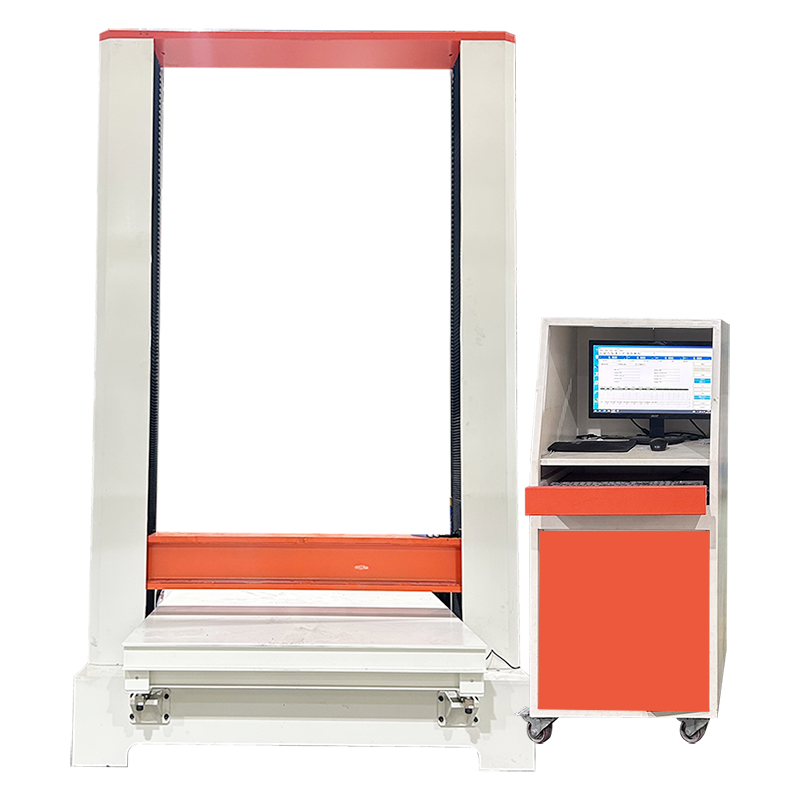

Key Features of the HZ-6001A Box Compression Tester
Precise Compression Measurement: The HZ-6001A is designed to test the compressive strength of cartons, containers, and other packaging structures. It employs dynamic holding pressure technology to simulate stacking tests, providing essential data on how product packaging withstands compression and impact during transportation and stacking -1-5.
Robust Drive System: The system features a Taiwan AC frequency conversion motor with synchronous belt drive, ensuring smooth, consistent, and reliable operation. The gapless ball screw lifting mechanism provides precise, stable movement essential for accurate test results -2-7.
High-Precision Load Measurement: Equipped with a U.S. high-precision explosion-proof load cell, the HZ-6001A delivers accurate force measurement with a resolution of 1/10,000 and accuracy within ±1% -1-2.
Intelligent Control & Display: The instrument features an HZ-2000 LCD touch screen display that shows compressive strength values, maximum compressive strength (crush force), displacement, and carton deformation in real-time -2-5. A Japan high-precision encoder accurately measures displacement during testing -7.
Comprehensive Safety Features: Multiple safety protections ensure operator safety and equipment longevity, including:
Leakage protection
Overload automatic shutdown protection
Displacement limit protection -1
Automatic Data Printing: The system automatically prints test results including maximum force, average values, breakpoint ratio, and date—streamlining documentation for quality records -1-5.
Technical Specifications at a Glance
| Parameter | Specification |
|---|---|
| Model | HZ-6001A Box Compression Tester |
| Maximum Load | 1000 KG or 2000 KG (selectable) -1 |
| Unit Switching | kgf, lbf, N -1 |
| Resolution | 1/10,000 -1 |
| Accuracy | ±1% -1 |
| Display | HZ-2000 LCD / Touch Screen Display -5 |
| Compression Space | 100 × 100 × 100 cm or 80 × 80 × 80 cm (customizable) -1 |
| Test Speed | 12 – 120 mm/min (adjustable) -1 |
| Drive System | AC frequency converter, gear, motor -1 |
| Safety Protection | Leakage protection, overload auto-shutdown, displacement limit -1 |
| Printing Function | Automatic ticket printing (max force, average, breakpoint ratio, date) -1 |
| Dimensions (W×D×H) | 153 × 121 × 180 cm -1 |
| Power Supply | 1∮, AC 220V, 5A -1 |
Standards Compliance for Global Acceptance
The HZ-6001A Box Compression Tester is designed and manufactured to meet key international and national standards for packaging testing, ensuring your test results are recognized worldwide -1:
GB/T 4857.4 – Packaging – Transport packages – Compression test method -1
GB/T 4857.16 – Packaging – Transport packages – Stacking test method -1
ISO 2872 – Packaging – Complete, filled transport packages – Pressure test -1
ASTM D642 – Standard test method for compression resistance of shipping containers -1
TAPPI T804 – Compression test for fiberboard containers -1
JIS Z0212 – Compression test method for packaging containers -1
ISO 12048 – Packaging – Complete, filled transport packages – Compression and stacking tests using a compression tester -6
ASTM D4169 – Standard practice for performance testing of shipping containers -6
How the HZ-6001A Enhances Packaging Quality Assurance
The HZ-6001A Box Compression Tester provides critical capabilities for packaging manufacturers, converters, and quality control laboratories -1:
Validate Package Designs: Test new box structures and material combinations before committing to production, ensuring designs meet required stacking strength
Optimize Material Usage: Identify opportunities to reduce board grades while maintaining required strength, lowering material costs without compromising protection -4
Ensure Compliance: Meet customer specifications and international standards for packaging performance
Conduct Incoming Inspection: Verify that purchased corrugated board and finished boxes meet compression strength requirements
Reduce Transit Damage: Identify and correct packaging weaknesses before products ship, minimizing damage claims and customer returns -4
Support R&D Initiatives: Develop and validate new packaging concepts with reliable compression data
Applications Across the Packaging & Printing Industry
The HZ-6001A serves diverse applications throughout packaging manufacturing and quality control -1:
Corrugated Box Manufacturers: Testing finished boxes for compression strength to validate production quality
Packaging Converters: Evaluating raw material performance for corrugated board
Consumer Goods Companies: Validating primary and secondary packaging for new product launches
E-commerce Fulfillment: Testing shipping boxes for direct-to-consumer delivery robustness
Pharmaceutical Packaging: Ensuring packaging meets regulatory requirements for stacking strength
Food & Beverage: Validating beverage cartons and food containers for pallet stacking
Third-Party Testing Laboratories: Providing compression testing services to packaging clients
Working Principle of Box Compression Testing
The box compression test is performed by placing a test specimen between two compression platens. The system applies a vertical compressive load at a constant speed until the box structure fails -4. The test records:
Maximum Compression Load: The peak force at failure (kN or N) -4
Deflection at Failure: The amount of compression before collapse (mm) -4
Failure Mode: Panel buckling, edge collapse, or corner crushing -4
This data provides packaging engineers with the information needed to optimize designs, select appropriate materials, and ensure that packaging can withstand the stacking loads encountered during storage and transportation -4.
A Trusted Partner in Precision Testing
As a leading manufacturer of testing instruments and detection equipment, Guangdong Lixian Instruments Co., Ltd. combines decades of instrument R&D experience with deep industry knowledge. Founded in 2000 and headquartered in Dongguan, Guangdong province, the company operates a modern 6000-square-meter production facility and serves clients in over 60 countries with products certified to CE, ISO, ASTM, and other international standards.
Our professional R&D team, rigorous quality management systems, and advanced manufacturing capabilities ensure that every HZ-6001A undergoes strict quality inspection, performance testing, and validation before shipment, guaranteeing stable and reliable long-term operation in demanding laboratory or production environments.
Comprehensive Customer Support
Beyond high-quality testing equipment, Guangdong Lixian Instruments Co., Ltd. provides complete support to ensure your success:
12-month product warranty with lifetime service support
Pre-sales consultation: Expert guidance to select appropriate test methods and equipment parameters based on your specific packaging materials and quality requirements
Installation and training: On-site commissioning and operation training to ensure your team quickly masters equipment use
After-sales service: Professional maintenance team providing timely repairs, spare parts replacement, and technical support to minimize production disruption
Calibration services: Regular calibration to maintain accuracy and compliance
Test with Confidence, Package with Certainty
In the competitive packaging industry, where product protection directly impacts customer satisfaction and brand reputation, only manufacturers who rigorously validate compression strength can ensure consistent quality and reliable performance. The HZ-6001A Box Compression Tester from Guangdong Lixian Instruments Co., Ltd. offers the precision, reliability, and standards compliance needed to optimize your packaging designs, validate your processes, and deliver products that arrive intact—every time.
Whether you are a small-scale packaging converter or a large-scale manufacturer serving global consumer goods, e-commerce, or industrial markets, our testing equipment delivers the accuracy and dependability required to protect your reputation and ensure product success.
Contact Guangdong Lixian Instruments Co., Ltd. today to learn more about how our box compression testing equipment can enhance your packaging material evaluation processes. Request a detailed technical specification, arrange a product demonstration, or consult with our application specialists to discuss your specific testing requirements.
Guangdong Lixian Instruments Co., Ltd. — Precision Engineered for Packaging Excellence.
