Guarding Against Corrosion: Ensuring Automotive Component Durability with the HZ-2001 Intelligent Salt Spray Tester
In the automotive industry, corrosion resistance is not merely a quality metric—it is a fundamental requirement for safety, reliability, and long-term customer satisfaction. From engine components and chassis parts to fasteners and exterior trim, every metal element is constantly threatened by road salt, humidity, and harsh environmental conditions. At Guangdong Lixian Instruments Co., Ltd. , we provide advanced testing equipment engineered to meet the rigorous demands of automotive quality assurance. Our HZ-2001 Intelligent Salt Spray Test Chamber delivers precise, repeatable, and standards-compliant corrosion testing, helping manufacturers validate material performance and ensure component longevity.
Why Salt Spray Testing is Essential for Automotive Parts
Automotive components operate in some of the most challenging environments imaginable—exposure to de-icing salts, coastal humidity, temperature fluctuations, and chemical contaminants. Without rigorous validation, corrosion can lead to:
Structural weakening of safety-critical components
Premature failure of fasteners and connectors
Unsightly cosmetic degradation affecting brand perception
Costly warranty claims and recalls
The HZ-2001 Intelligent Salt Spray Tester from Guangdong Lixian Instruments Co., Ltd. simulates these corrosive conditions in a controlled laboratory environment, enabling manufacturers to assess material resilience and ensure compliance with international standards -2.

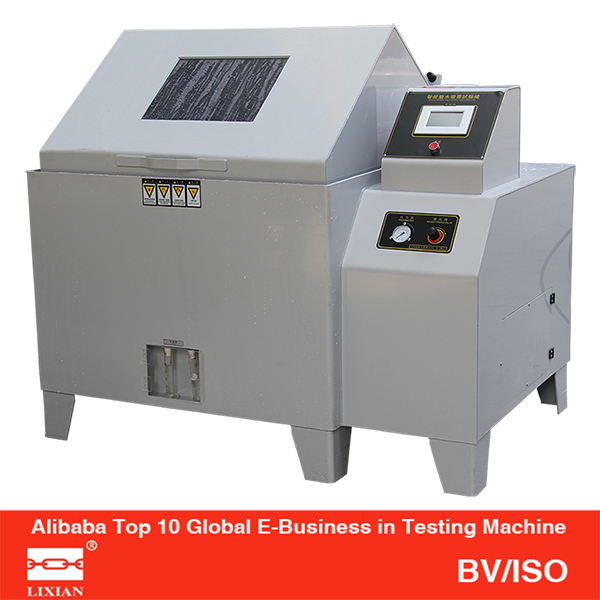

Key Features of the HZ-2001 Intelligent Salt Spray Test Chamber
Comprehensive Standards Compliance: The HZ-2001 is designed to meet a wide range of international testing standards, including ASTM B117, ISO 9227, GB/T 2423.17, GB/T 10125, IEC68-2-11, and JIS H8502—ensuring global acceptance of your test results -3-5-10.
Intelligent Control System: Equipped with a high-precision microcomputer touchscreen controller featuring intuitive human-machine interface, the system dynamically displays temperature, time, alarms, defogging, and spray functions. Platinum temperature sensors deliver overall temperature accuracy of ±0.1°C -7.
Multiple Test Modes: Supports Neutral Salt Spray (NSS), Acetic Acid Salt Spray (AASS), and Copper Accelerated Acetic Acid Salt Spray (CASS) testing, with programmable continuous or intermittent spray functions to meet diverse automotive requirements -5-10.
Advanced Spray System: Based on the Bernoulli principle, the atomizer ensures uniform雾化 without crystallization blockage. The precision glass nozzle (PYREX) is adjustable for spray volume and angle, with guaranteed 10,000 hours of operation without clogging -7.
Precise Environmental Control: Testing room temperature maintained at 35°C ±1°C for NSS tests and 50°C ±1°C for CASS tests. Saturated air barrels provide corresponding temperature control at 47°C ±1°C and 63°C ±1°C respectively -5.
Multiple Chamber Sizes: Available in 108L, 270L, and 480L capacities to accommodate everything from small components to larger automotive assemblies -5.
Robust Construction: Testing room fabricated from PVC polyvinyl chloride plate (Taiwan import) for acid and alkali resistance, with easy-cleaning properties. The viewing cover uses 5mm imported acrylic panels for clear observation during testing -5.
Technical Specifications at a Glance
| Parameter | NSS / ACSS Test | CASS Test |
|---|---|---|
| Testing Room Temperature | 35°C ±1°C | 50°C ±1°C |
| Pressure Barrel Temperature | 47°C ±1°C | 63°C ±1°C |
| Spray Volume | 1.0–2.0ml/80cm²/h (16-hour average) | |
| Salt Concentration | 5% NaCl or 5% NaCl + 0.26g/L CuCl₂·2H₂O | |
| pH Range | 6.5–7.2 | 3.0–3.2 |
| Air Pressure | 1.00 ±0.01 kgf/cm² |
Driving Quality and Innovation in Automotive Manufacturing
Whether you are validating coatings for chassis components, testing fasteners for corrosion resistance, or qualifying new material suppliers, the HZ-2001 Intelligent Salt Spray Tester provides critical insights to:
Ensure compliance with OEM-specific corrosion standards such as SAE J2334, FLTM BI 103-01, and JASO M609 -4-6-8
Optimize coating formulations for enhanced durability
Reduce the risk of field failures and warranty claims
Accelerate development cycles through reliable accelerated testing
A Trusted Partner in Precision Testing
As a leading manufacturer of testing instruments and detection equipment, Guangdong Lixian Instruments Co., Ltd. combines technical expertise with industry knowledge to deliver solutions that meet the evolving needs of automotive manufacturers. Our HZ-2001 test chamber reflects our commitment to accuracy, reliability, and ease of use—helping automotive producers achieve the highest standards of quality and durability.
Test with Confidence, Perform with Certainty
In an industry where failure is not an option, equip your laboratory with testing equipment that delivers precise, repeatable results. The HZ-2001 Intelligent Salt Spray Test Chamber from Guangdong Lixian Instruments Co., Ltd. offers the technological sophistication and reliability needed to ensure your automotive components withstand the harshest corrosive environments.
Contact Guangdong Lixian Instruments Co., Ltd. today to learn more about how our salt spray testing equipment can enhance your automotive material validation processes. Request a detailed technical specification or schedule a product demonstration to experience our detection instruments in action.
Guangdong Lixian Instruments Co., Ltd. — Engineering Precision for Automotive Excellence.
