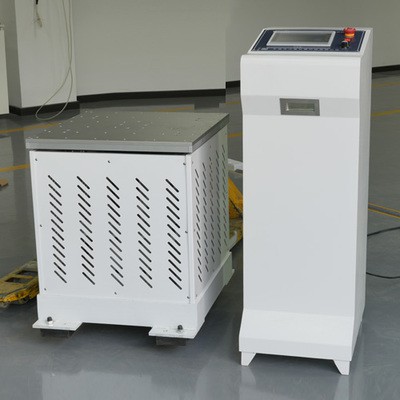

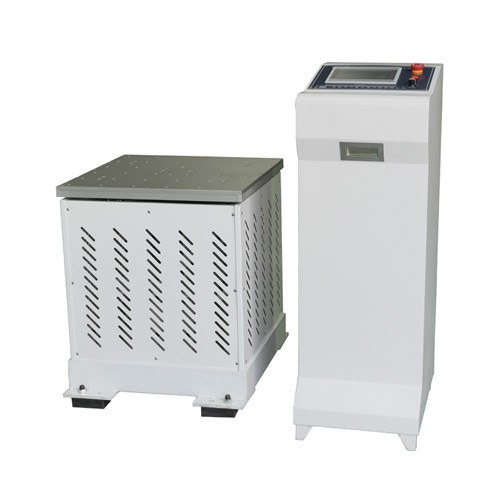

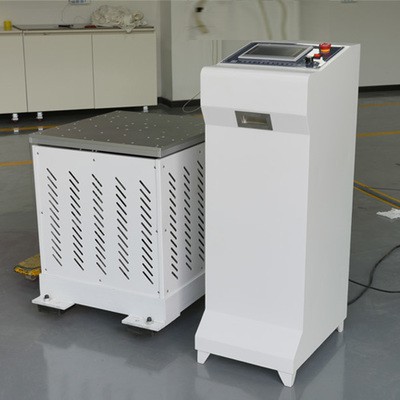

Three-axis electromagnetic vibration table (X+Y+Z axis)
Equipment OverviewThis machine suitable for plastic industry polymer material mixing and processing such as, PVC, color master batch. Making the raw material and compound mixing, and achieve the required color and quality. The machine adopts special heated mold, roll surface temperature unifor
  • Tel:+86 13711888650
  • Product Details

Equipment Overview



This machine suitable for plastic industry polymer material mixing and processing such as, PVC, color master batch. Making the raw material and compound mixing, and achieve the required color and quality. The machine adopts special heated mold, roll surface temperature uniformity, never take off a layer, sample thickness can be mixed, the machine safety protection device, convenience to use.


satandard:

ISO 2247 packaging Full shipping packages and unit goods Fixed low frequency vibration test

ISO 13355 packaging - full, filled transport packaging and unit load - Vertical random vibration test

IEC 60068 basic environmental test procedures

ASTM d999 test method for vibration testing of shipping containers

ASTM d4728 random vibration test method for shipping containers

ASTM d3580 standard for product vibration test (vertical linear motion)

GB / T 4857 packaging - Basic tests for transport packages

GB / T 2423 environmental test for electric and electronic products

Software functions:

The independently developed CIMS + FCS is adopted for the shaking table software system, which can be expanded and configured with acceleration sensor and PC monitoring. The latest international vibration test standards are quoted to realize the selection of fixed frequency, sweep frequency, frequency doubling, program, logarithm and random vibration modes.



Features

1. X, y and Z axis vibration can be realized on the same table, with program control, accurate and balanced frequency, and no drift during long-term operation;

2. With single point, segment and multi segment time timing;

3. Stepless amplitude adjustment, with frequency sweeping and frequency fixing functions, to meet the test requirements of different industries;

4. Embedded amplitude prediction program, four point synchronous excitation, uniform table vibration;

5. The anti-interference circuit is added to solve the interference of strong electromagnetic field to the control circuit, and the table top is non-magnetic and static.

6. It is made of composite industrial materials, precision processing, beautiful and generous platform, humanized operation and control, and adopts special measurement and control module to make the equipment work more stable.



Technical Parameters

Model

HZ-4006A

Standard

ISO 2247  ISO 13355

Product model

4006A

Frequency modulation range (Hz)

1~600

Product load (kg)

50kg (customized if larger)

Frequency accuracy

0.01 Hz

control mode

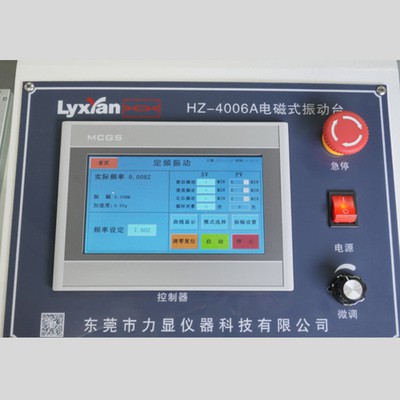

Industrial touch screen

Amplitude (mm)

0.001-5 (Note: it can be displayed only after adding amplitude sensor)

Excitation mode

Electromagnetic type

Amplitude modulation mode

Electronic amplitude modulation

Vibration direction

Triaxial (x + y + Z)

Vibration waveform

sine wave

Test mode

Fixed frequency, sweep frequency, frequency doubling, program, logarithm, random

Time setting range

0-9999h / M / s minute arbitrary setting

Number of cycles

0-9999 arbitrary setting

Table size (mm)

W500 × (D) 500 (one out of three) (W) 750 × (D750;(W1000 × (D1000
