In the adhesive industry, bonding performance is not just a quality metric—it is the fundamental determinant of product reliability, safety, and customer satisfaction. From structural adhesives used in automotive assembly and electronics manufacturing to pressure-sensitive tapes for packaging and medical applications, every bonded joint must withstand specified mechanical stresses throughout its service life. At Guangdong Lixian Instruments Co., Ltd. , we provide advanced testing equipment engineered to meet the rigorous demands of adhesive quality assurance. Our HZ-1001A Computer Servo Universal Testing Machine delivers precise, repeatable, and standards-compliant mechanical testing for all adhesive materials, helping manufacturers validate bond integrity and ensure long-term performance -
3.
Why Universal Testing is Essential for Adhesive Materials
Adhesives are complex materials whose performance depends on formulation, substrate compatibility, curing conditions, and environmental exposure. Without rigorous mechanical validation, manufacturers risk -2-3:
Bond failure in critical structural applications
Inconsistent peel strength affecting product usability
Insufficient shear resistance compromising joint integrity
Premature debonding under load or environmental stress
Non-compliance with industry standards and customer specifications

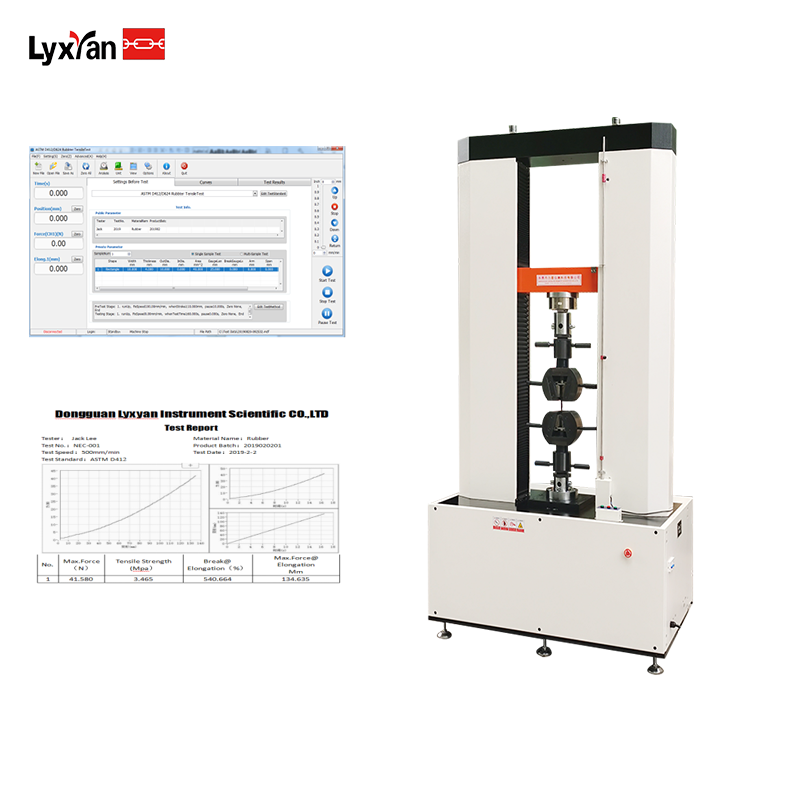

The HZ-1001A Computer Servo Universal Testing Machine from Guangdong Lixian Instruments Co., Ltd. addresses these challenges through comprehensive mechanical characterization, enabling manufacturers to assess critical parameters including tensile strength, shear strength, peel resistance, and elongation properties -1-3.
Key Features of the HZ-1001A Computer Servo Universal Testing Machine
High-Precision Servo Drive Technology: The HZ-1001A utilizes a high-performance servo motor system combined with precision ball screw transmission, ensuring stable, accurate load application with exceptional control precision. This electromechanical design eliminates the force fluctuation common in hydraulic systems, delivering consistent results across batch tests -3-10.
Superior Force Measurement Accuracy: Equipped with high-precision load sensors, the system achieves force control accuracy of ±0.5% of indicated value (0.5-class accuracy), ensuring every data point is reliable and repeatable. With resolution of 1/200,000 of full load, the machine detects even subtle bonding variations critical for low-tack adhesives and medical applications -1-4-10.
Wide Test Speed Range: Adjustable test speeds from 0.001 to 500 mm/min accommodate diverse adhesive types and testing standards, from slow controlled-rate testing for structural adhesives to higher speeds for tape peel applications -4-10.
Comprehensive Testing Capabilities: The HZ-1001A supports a full range of mechanical tests essential for adhesive evaluation -1-3-8:
Peel strength testing (180° and 90°) for tapes, labels, and flexible bonded materials
Tensile shear strength testing for structural adhesives per ASTM D1002 and ISO 4587
T-peel testing for flexible bonded assemblies per ASTM D1876
Tensile bonding strength for adhesive films and pressure-sensitive materials
Lap shear and butt joint testing for rigid substrate bonding
Hold adhesion and shear adhesion failure temperature (SAFT) with optional temperature control
Specialized Adhesive Testing Fixtures: The system accommodates interchangeable fixtures designed specifically for adhesive samples—peel clamps with anti-slip surfaces, shear jigs for precise alignment, and tensile grips for film samples. Customizable to accommodate narrow tape strips (12mm/25mm width) or large bonded panels -3.
Intelligent RealTest® Software: Preloaded with adhesive-specific test methods, the software automates data collection, curve analysis, and report generation. It calculates key metrics (peel force N/mm or N/25mm, shear strength MPa, elongation at break %) and supports batch data comparison—enabling quick identification of production inconsistencies. Data export in Excel/CSV/PDF formats simplifies regulatory compliance and audit trails -3-10.
Robust Mechanical Construction: A rigid steel frame with high-rigidity double-column structure minimizes vibration during high-force testing, ensuring stable operation and long-term durability in demanding laboratory or production environments -1-8.
Comprehensive Safety Features: Equipped with electronic limit protection, overload protection (automatic shutdown at 10% over capacity), and emergency stop functions to ensure operator safety during all test procedures -1-10.
Technical Specifications at a Glance
| Parameter | Specification |
|---|---|
| Model | HZ-1001A Computer Servo Universal Testing Machine |
| Load Capacity | 50N to 500kN options available (multiple sensor configuration supported) -1-4 |
| Accuracy Class | 0.5 class (superior to standard 1-class requirements) -1-4 |
| Load Measurement Accuracy | ±0.5% of indicated value (within 0.4%–100% of range) -1 |
| Resolution | 1/200,000 of full load, constant throughout range -1-10 |
| Test Speed Range | 0.001 – 500 mm/min, fully adjustable -4-10 |
| Displacement Accuracy | ±0.2% of indicated value -1 |
| Effective Test Width | Standard 550mm (customizable) -1 |
| Effective Tensile Space | 1100mm without fixtures (customizable) -1 |
| Power Supply | 220V / 380V, 50Hz -1-10 |
| Compliance | CE, ASTM, ISO, GB/T standards -4 |
Standards Compliance for Global Acceptance
The HZ-1001A Computer Servo Universal Testing Machine supports testing in accordance with key international and national standards for adhesive materials -1-2-3:
ASTM D1002 – Apparent shear strength of single-lap-joint adhesives
ASTM D1876 – Peel resistance of adhesives (T-peel test)
ASTM D3330 – Peel adhesion of pressure-sensitive tape
ISO 4587 – Determination of tensile lap-shear strength of rigid-to-rigid bonded assemblies
ISO 8510-2 – Peel test for flexible-to-rigid bonded assemblies (180° peel)
ISO 29862 – Determination of peel adhesion properties for pressure-sensitive adhesives
GB/T 2790 – 180° peel strength test for adhesives
GB/T 2791 – T-peel strength test for adhesives
GB/T 2792 – Peel strength test for adhesive tapes
GB/T 7124 – Tensile shear strength test for adhesives
GB/T 7753 – Tensile test for adhesives
GB/T 16491 – Electronic universal testing machines
Driving Quality and Innovation in Adhesive Manufacturing
Whether you are developing new adhesive formulations, validating batch consistency, conducting incoming material inspection, or performing failure analysis, the HZ-1001A testing system provides critical insights to -3:
Optimize formulations for enhanced bonding performance across different substrates
Ensure compliance with customer specifications and international standards
Validate cure profiles and processing parameters
Conduct comparative testing of competitive products
Reduce the risk of field failures, warranty claims, and reputation damage
Support R&D initiatives for next-generation adhesive products
Enable statistical process control and continuous quality improvement
Applications Across the Adhesive Industry
The HZ-1001A serves adhesive manufacturers across diverse sectors -2-3-5:
Electronics: Testing PCB bonding adhesives, display panel tapes, and battery component adhesives to ensure vibration resistance and long-term reliability -3
Automotive: Validating structural adhesives for body assembly, interior trim tapes, and underhood adhesive performance under high-temperature conditions -3
Medical Devices: Meeting ISO 10993 standards for skin-contact tapes and surgical adhesives, with precise peel force control to avoid skin irritation -3
Packaging: Ensuring shipping tapes maintain bonding strength under varying temperature and humidity conditions -3
Construction: Testing sealants, structural glazing adhesives, and anchoring systems -5-6
Aerospace: Validating high-performance adhesives for extreme temperature and load conditions -5
A Trusted Partner in Precision Testing
As a leading manufacturer of testing instruments and detection equipment, Guangdong Lixian Instruments Co., Ltd. combines decades of instrument R&D experience with deep industry knowledge. Our HZ-1001A Computer Servo Universal Testing Machine reflects our commitment to accuracy, reliability, and user-centric design—helping adhesive producers achieve the highest standards of quality and performance -3.
With a modern production base, professional R&D team of senior engineers, and rigorous quality management systems, every HZ-1001A undergoes strict quality inspection, performance testing, and validation before shipment, ensuring stable and reliable long-term operation in demanding laboratory or production environments -1-8.
Real-World Impact: Customer Success with HZ-1001A
Adhesive manufacturers report significant improvements after adopting the HZ-1001A -3:
Batch consistency improved by 40%, reducing scrap rates for high-value adhesive products
Test time reduced by 30% compared to manual or hydraulic testing machines
Compliance with international standards streamlined, facilitating global market access
Comprehensive Customer Support
Beyond high-quality testing equipment, Guangdong Lixian Instruments Co., Ltd. provides complete support to ensure your success -3:
Pre-sales consultation: Expert guidance to select appropriate test methods and equipment parameters based on your specific adhesive materials and applications
Customized testing programs: Tailored solutions for specialty adhesives, high-temperature tapes, or unique application requirements
Installation and training: On-site commissioning and operation training to ensure your team quickly masters equipment use
Calibration services: Professional calibration to maintain accuracy and compliance
24/7 technical assistance: Global support team resolving issues quickly to minimize downtime
Upgradeable features: Add temperature chambers, extensometers, or automated sample feeders as your testing needs evolve
Test with Confidence, Bond with Certainty
In the competitive adhesive market, only manufacturers who rigorously validate bonding performance can earn customer trust and maintain competitive advantage. The HZ-1001A Computer Servo Universal Testing Machine from Guangdong Lixian Instruments Co., Ltd. offers the technological sophistication and robust construction needed to ensure your adhesives meet the most demanding performance requirements—from initial bond formation through years of service life -3.
Whether you are a small-scale formulator or a large-scale manufacturer serving automotive, electronics, medical, or packaging industries, our testing equipment delivers the precision and reliability required to protect your brand reputation and bottom line.
Contact Guangdong Lixian Instruments Co., Ltd. today to learn more about how our universal testing equipment can enhance your adhesive material evaluation processes. Request a detailed technical specification, arrange a product demonstration, or consult with our application specialists to discuss your specific testing requirements.
Guangdong Lixian Instruments Co., Ltd. — Precision Engineered for Uncompromised Bonding Performance.
