In the PE film industry, quality is not just a specification—it is the foundation of market competitiveness. Whether for packaging films, protective films, or industrial applications, mechanical properties such as tensile strength, elongation at break, tear resistance, and peel strength directly determine service life, safety, and end-user satisfaction. At Guangdong Lixian Instruments Co., Ltd. , we provide advanced testing equipment engineered to meet the rigorous demands of PE film quality assurance. Our HZ-1007C Desktop Electronic Touch Screen Tensile Tester delivers precise, repeatable, and standards-compliant mechanical testing, helping manufacturers validate material performance, optimize formulations, and ensure consistent quality -
1.
Why Tensile Testing is Essential for PE Film Materials
PE films are subjected to diverse stresses during conversion, filling, transport, and end use. Without rigorous mechanical validation, manufacturers risk:
Film breakage during high-speed packaging operations, causing production interruptions
Insufficient elongation leading to tearing under strain, compromising product protection
Inconsistent mechanical properties affecting downstream converting processes
Poor seal integrity in laminated structures, reducing barrier performance
Quality variations between batches, eroding customer confidence
The HZ-1007C Desktop Electronic Touch Screen Tensile Tester from Guangdong Lixian Instruments Co., Ltd. addresses these challenges through comprehensive mechanical characterization, enabling manufacturers to assess critical parameters including tensile strength, elongation at break, tear resistance, and peel strength—all essential for validating PE film performance -1-3.

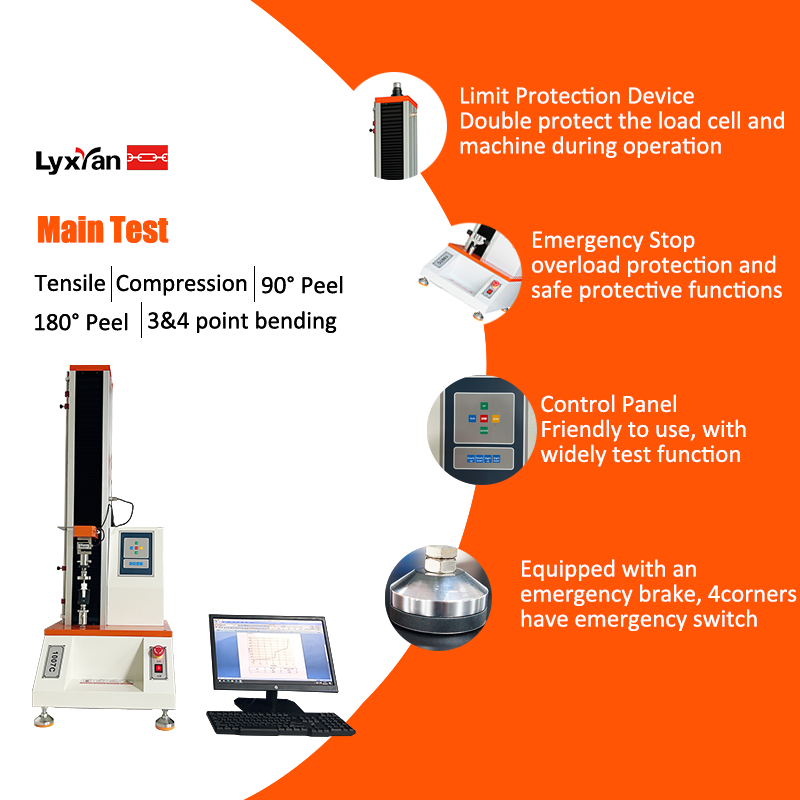

Key Features of the HZ-1007C Desktop Electronic Touch Screen Tensile Tester
Compact Desktop Design with Touch Screen Intelligence: The HZ-1007C features a space-saving desktop configuration, making it ideal for PE film production workshops, laboratories, and quality inspection centers where space is valuable. Its integrated computerized touch screen control system replaces traditional complex operation modes, delivering visualized, intelligent operation that simplifies even complex testing procedures. Even non-professional operators can quickly master the system after minimal training -1.
High-Precision Measurement for PE Film Applications: The system is equipped with high-accuracy load sensors, achieving load measurement accuracy within ±0.5% of indicated value (0.5-class accuracy). With resolution of 1/200,000 of full load, the HZ-1007C detects even subtle variations in film mechanical properties—essential for maintaining consistent quality across production runs -3-4.
Advanced Servo Drive Technology: The HZ-1007C utilizes a Taiwan Delta AC servo motor and driver, driving the crosshead through a precision transmission mechanism for stable, accurate load application. The system ensures stable loading, fast response, and minimal vibration during operation, eliminating test errors caused by unstable equipment performance -1-2.
Wide Test Speed Range for Flexible Testing: With adjustable test speeds from 0.001 to 500 mm/min, the HZ-1007C accommodates different PE film types—from thin packaging films to thicker industrial films—and various testing standards. This flexibility ensures that manufacturers can test a broad range of materials with a single instrument -3-4.
Comprehensive Testing Capabilities: The HZ-1007C supports a full range of mechanical tests essential for PE film evaluation:
Tensile strength testing for film base materials
Elongation at break measurement to assess ductility
Tear strength evaluation for film toughness
90-degree and 180-degree peel strength for laminated and coated films
Intelligent Data Management & Reporting: Real-time dynamic display of load values, displacement, deformation, test speed, and test curves allows operators to monitor tests as they run. Test results are automatically saved, and after test completion, complete test reports and curves can be immediately printed. The system supports curve comparison and analysis, enabling detailed material characterization -2-4.
Robust Safety Features: The HZ-1007C is equipped with electronic limit protection, overload protection, and emergency stop functions, ensuring operator safety and equipment protection during all test procedures -2-3.
Technical Specifications at a Glance
| Parameter | Specification |
|---|---|
| Model | HZ-1007C Desktop Electronic Touch Screen Tensile Tester |
| Load Capacity Options | 50N, 100N, 200N, 500N, 1000N |
| Accuracy Class | 0.5 class (optional 1.0 class) |
| Load Measurement Accuracy | ±0.5% of indicated value (0.5 class) |
| Resolution | 1/200,000 of full load |
| Test Speed Range | 0.001 – 500 mm/min |
| Effective Tensile Space | 400mm or 500mm options |
| Effective Test Width | 60mm (clearance to sensor center) |
| Drive System | Taiwan Delta AC servo motor + driver |
| Control System | Integrated touch screen controller |
| Power Supply | 220V, 50Hz |
| Power | 0.4KW (configurable) |
| Host Weight | Approx. 60 kg |
| Host Dimensions | 450 × 550 × 1400 mm |
How the HZ-1007C Enhances PE Film Quality Assurance
The HZ-1007C Desktop Electronic Touch Screen Tensile Tester provides critical capabilities for PE film manufacturers, converters, and quality control laboratories -1:
Validate Material Selection: Ensure incoming film materials meet specified mechanical properties before production
Optimize Formulations: Compare different resin blends, additive packages, and processing parameters to achieve target performance
Ensure Compliance: Meet international standards such as ASTM D882 (tensile properties of thin plastic sheeting), ISO 527-3, and GB/T 1040.3
Conduct Incoming Inspection: Verify supplier quality for purchased films and materials
Perform Routine Quality Control: Maintain consistent production standards through regular testing
Support R&D Initiatives: Characterize new film formulations and validate product improvements
Reduce Field Failures: Identify potential weaknesses before products reach customers
Standards Compliance for Global Acceptance
The HZ-1007C Desktop Electronic Touch Screen Tensile Tester supports testing in accordance with key international and national standards for PE film materials:
ASTM D882 – Standard Test Method for Tensile Properties of Thin Plastic Sheeting
ISO 527-3 – Plastics – Determination of tensile properties – Part 3: Test conditions for films and sheets
GB/T 1040.3 – Plastics – Determination of tensile properties – Part 3: Conditions for films and sheets
GB/T 13022 – Plastics – Determination of tensile properties of films
JIS K 7127 – Plastics – Determination of tensile properties – Part 3: Test conditions for films and sheets
A Trusted Partner in Precision Testing
As a leading manufacturer of testing instruments and detection equipment, Guangdong Lixian Instruments Co., Ltd. combines nearly 20 years of instrument R&D experience with deep industry knowledge -1-5. Founded in 2000 and headquartered in Dongguan, Guangdong province, the company operates a modern 6000-square-meter production facility and serves clients in over 60 countries with products certified to CE, ISO, and other international standards -5-6.
The company has introduced advanced processing equipment including CNC machining centers and数控车床 (CNC lathes), and has obtained CMC measurement license and ISO9001:2008 quality management system certification. With a professional R&D team, rigorous quality management systems, and 31 patents and multiple software copyrights, every HZ-1007C undergoes strict quality inspection, performance testing, and validation before shipment, ensuring stable and reliable long-term operation in demanding laboratory or production environments -1-5.
Comprehensive Customer Support
Beyond high-quality testing equipment, Guangdong Lixian Instruments Co., Ltd. provides complete support to ensure your success:
Pre-sales consultation: Expert guidance to select appropriate test methods and equipment parameters based on your specific PE film materials and quality requirements
Installation and training: On-site commissioning and operation training to ensure your team quickly masters equipment use
After-sales service: Professional maintenance team providing timely repairs, spare parts replacement, and technical support to minimize production disruption
12-month warranty: Comprehensive warranty coverage with lifetime service support -5
Test with Confidence, Produce with Certainty
In the competitive PE film market, only manufacturers who rigorously validate mechanical performance can earn customer trust and maintain competitive advantage. The HZ-1007C Desktop Electronic Touch Screen Tensile Tester from Guangdong Lixian Instruments Co., Ltd. offers the precision, reliability, and comprehensive testing capabilities needed to ensure your PE films meet the most demanding performance requirements—from thin packaging films to heavy-duty industrial applications -1.
Whether you are a small-scale film converter or a large-scale manufacturer serving global packaging markets, our testing equipment delivers the accuracy and dependability required to protect your reputation and bottom line.
Contact Guangdong Lixian Instruments Co., Ltd. today to learn more about how our tensile testing equipment can enhance your PE film material evaluation processes. Request a detailed technical specification, arrange a product demonstration, or consult with our application specialists to discuss your specific testing requirements.
Guangdong Lixian Instruments Co., Ltd. — Precision Engineered for Film Excellence.
