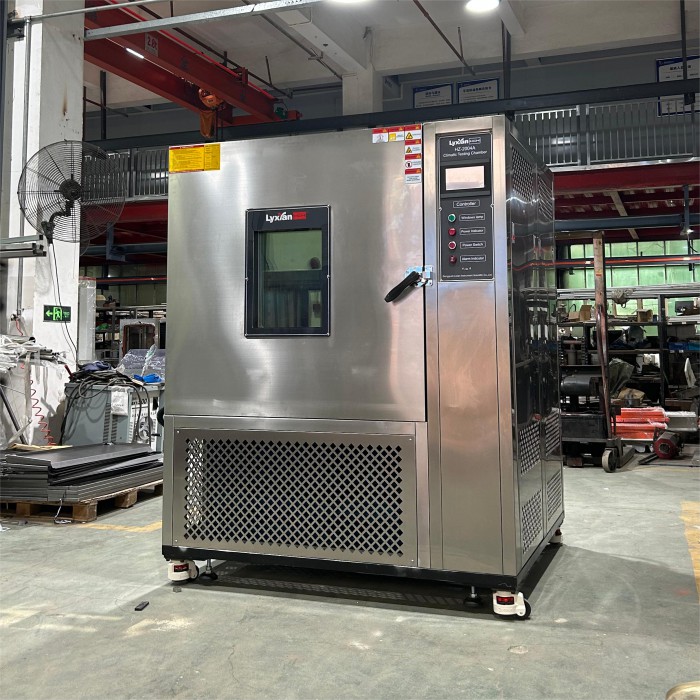

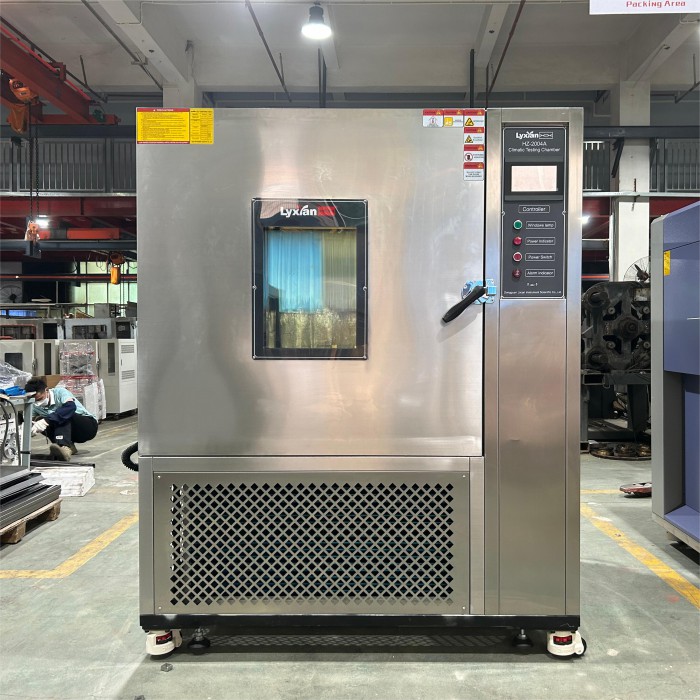

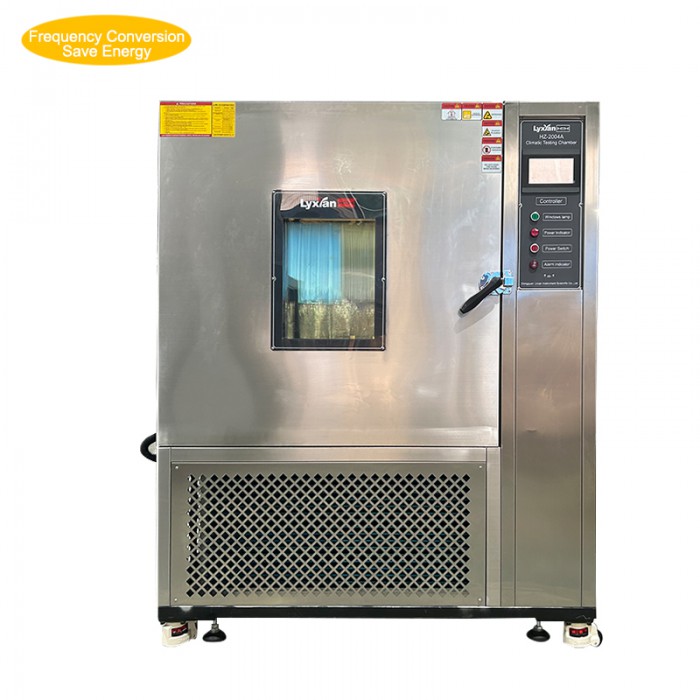

Battery constant temperature and humidity test chamber
Constant Temperature And Humidity Test Chamber is applied to test the luggage suitcase in heat-resistance, cold-resistance, dry-resistance, moisture-resistance.The language can choose either English or Chinese and with the touch-screen liquid crystal display screen, simple to operate and program easy to edit.
  • Tel:+86 13711888650
  • Product Details


Corresponding Standard
International Electrotechnical Commission Standard

 IEC68-2-03_test method Ca_Steady damp-heat
 IEC68-2-01_test method A_cold
 IEC68-2-02_test method B_dry heat
 Military Standards
 MIL-STD-810F-507.4 humidity
 MIL-STD-810F-501.4 high temperature
 MIL-STD-810F-502.4 low temperature
 MIL-STD883C test method 1004.2 temperature and humidity cycling test
 MIL-STD810D test method 502.2
 MIL-STD810 test method 507.2 procedure 3
 Japanese Industrial Standard
 JIS C60068-2-3-1987 test method Ca: Steady damp-heat
 JIS C60068-2-2-1995 test method B: dry heat
 JIS C60068-2-1-1995 test method A: low temperature
 USA Semiconductor Industry Standard
 JESD22-A101-B-2004 Constant temperature and humidity test
 JESD22-A103-C-2004 High Temperature Storage Test
 JESD22-A119-2004 Low Temperature Storage Test

Applicable Industries
Constant temperature and humidity test chamber applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.


Detailed Parameters

ModelHZ-80
 (A~G)
HZ-150
 (A~G)
HZ-225
 (A~G)
HZ-408
 (A~G)
HZ-608
(A~G)
HZ-800
(A~G)
HZ-1000
 (A~G)
Inside size W*H*D(cm)40x50x4050x60x5050x75x6060x85x8080x95x80100x100x80100x100x100
Outside size W*H*D(cm)90x136x94100x146x104100x161x117110x171x137130x181x137150x186x137150x186x157
Temperature Range-70℃~+100℃(150℃)  (A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃)
Humidity Range20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific condition
Accuracy/ Uniformly±0.1℃±0.1%R.H./ ±1.0℃±3.0%R.H.
Accuracy / Volatility±1.0℃±2.0%R.H./ ±0.5℃±2.0%R.H.
Heating / Cooling TimeAbout 4.0℃/minabout 1.0℃/min5~10℃/mm is the specific condition
Inside MaterialStainless steel SUS 304#
Insulation MaterialHigh-temperature high-density amino acid ethyl ester foam insulation materials,
Cooling SystemAir-cooled/ single-stage compressor(-20℃) wind, water cooled/two-stage compressor(-40℃~-70℃)
ProtectionCompressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system
AccessoriesRecorder(purchase)view window50mm testing holePL lampclapboardDry and wet gauze ball

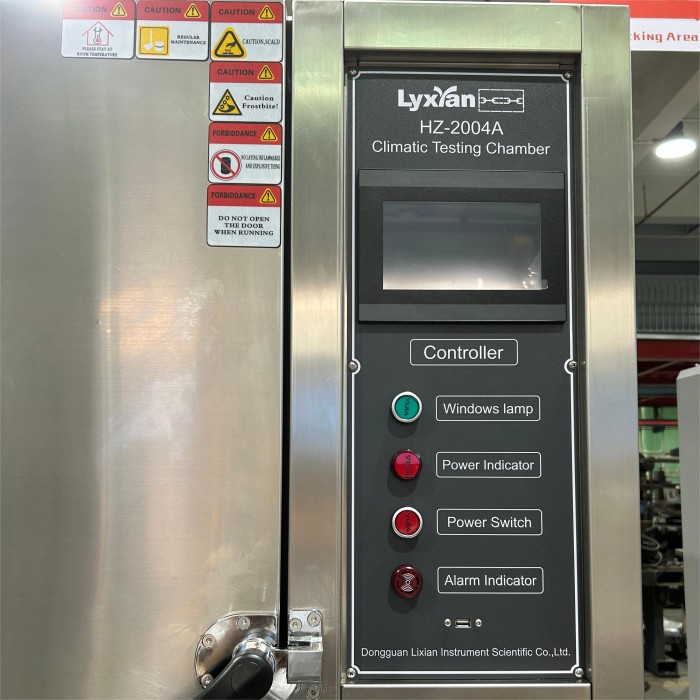

ControllerTEMI880 touch screen controller from South Korea,"Weilun" from Taiwan
