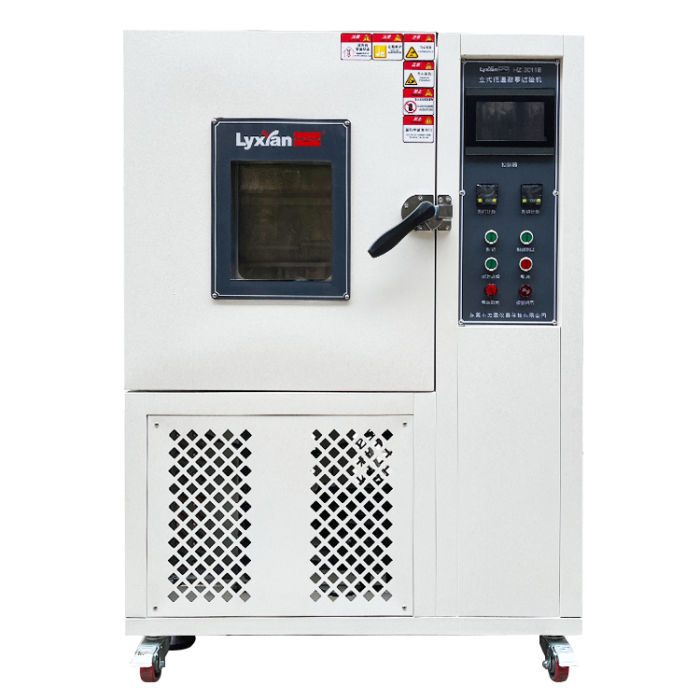

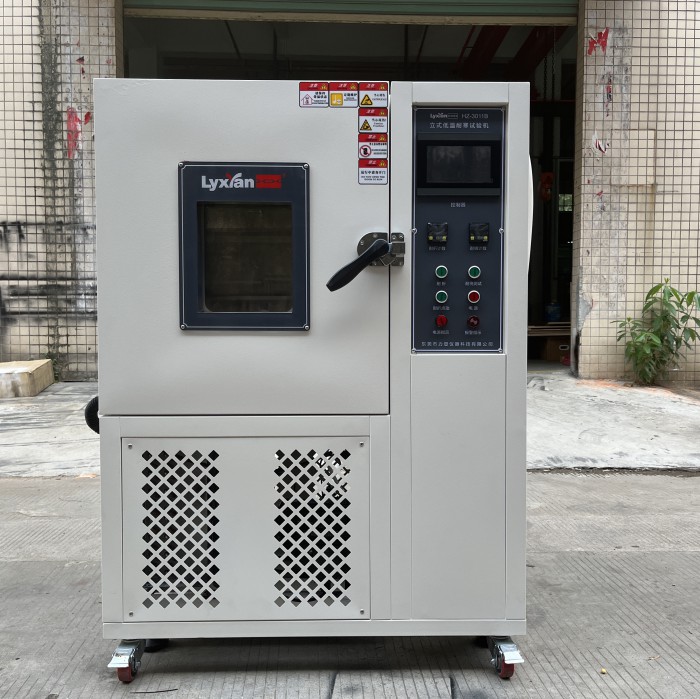

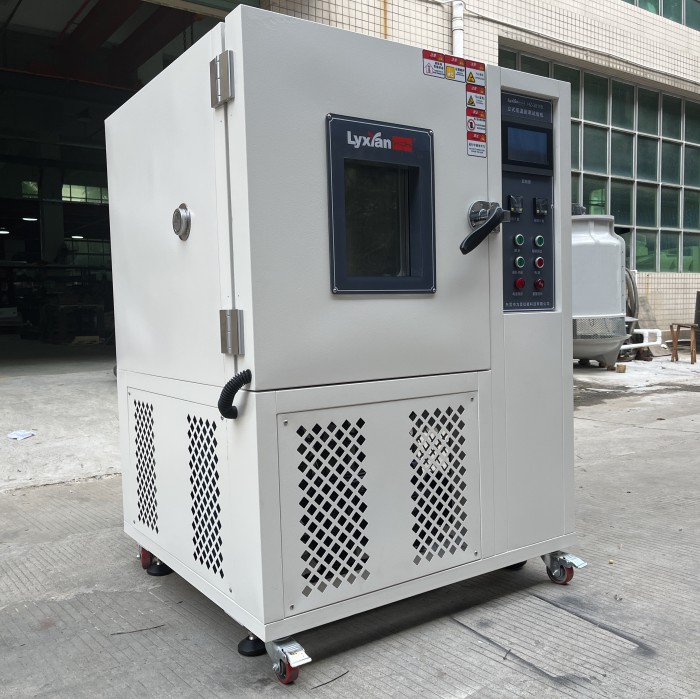

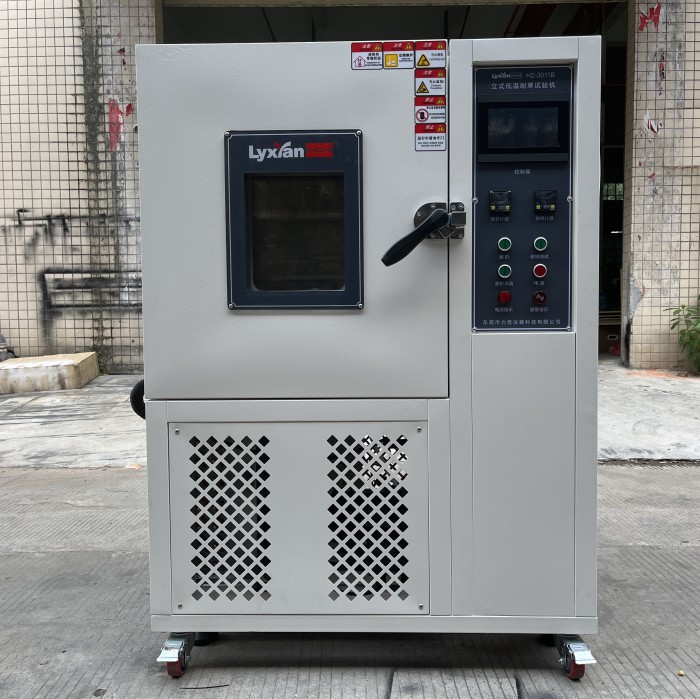

Temperature Test Equipment HZ-3011B
Temperature Test Equipment is a machine which adopt vertical design, do not have to bend over to grip specimen, easy to operate, thus more handy, it used to test the finished shoes, rubber, plastics, shoe soles, synthetic leather and other material in a cryogenic or cool regions environment.
  • Tel:+86 13711888650
  • Product Details
Equipment summary:
HZ-3011B Temperature Test Equipment is a machine which adopt vertical design, do not have to bend over to grip specimen, easy to operate, thus more handy, it used to test the finished shoes, rubber, plastics, shoe soles, synthetic leather and other material in a cryogenic or cool regions environment. The machine is made of stainless steel, and can install various fixture to suit different requirements.

Corresponding standard:
operative standard :ASTM-D1790,D1593,JIS-K6545 .

Applicable industry:
 Applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories; commodity inspection, arbitration and technical supervision departments.

Technical parameters:
ModelHZ-3011B
Inside size D×W×H400×500×400mm (L*W*H)

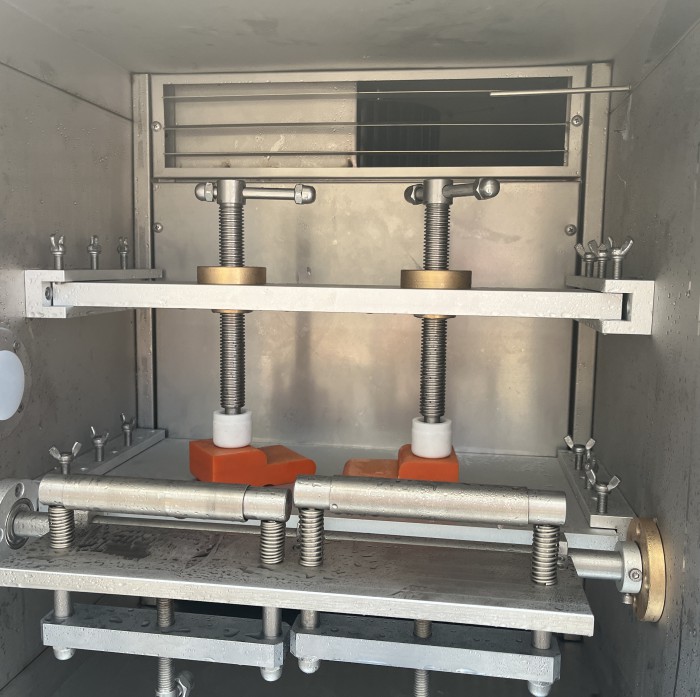

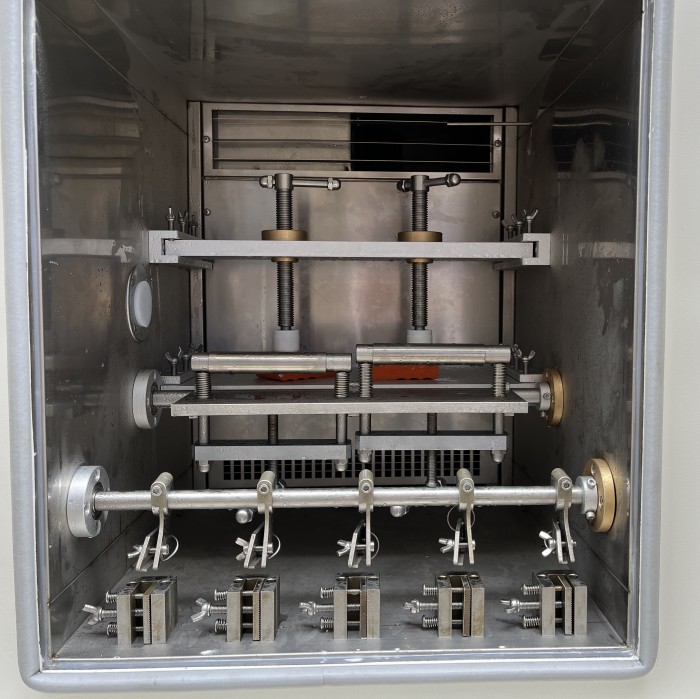

FixtureBased on actual demand, such as sole folding, leather folding and shoes folding
IndexTemperature rangeNormal temperature  -30

uniformity≤±0.5/.+2-3

Cooling time-25℃~-30(about 80min)
SystemcontrollerLED digital(from Taiwan) PID +SSR.microcomputer controller

Accurate rangeSetting accuracytemperature ±0.1℃,directed accuracytemperature ±0.1℃,resolution ±0.1

Cooling systemTotally enclosed air-cooled single-stage compression refrigerate mode / original from French "Taikang" /
totally enclosed air-cooled re-compression refrigerate mode

Compressor start delay5min

Circular systemTemperature, low-noise, air-conditioning-type motor. Multi-vane centrifugal wind wheel
MaterialOutside materialHigh-quality carbon steel plate. Phosphide electrostatic spray treatment / SUS304 stainless steel hairline treatment

Inside materialSUS304 High-quality stainless steel light board

Insulation materialRigid polyurethane foam, ultra-fine glass fiber cotton
Standard collocationa set of Multi-heated glass window attached lighting, testing product shelf 2 pcs, test leads holes (25,50 mm) 1 pcs
Safe protectionLeak current, short circuit, over temperature, motor overheating, over-pressure compressor, overload, over-current protection
Timing0.1999.9SMHadjustable
Power2.5KW
VoltageAC380V±10 50±0.5Hz  Three-phase five-wire system
Environmental temperature5℃~+30 ≤85R.H
