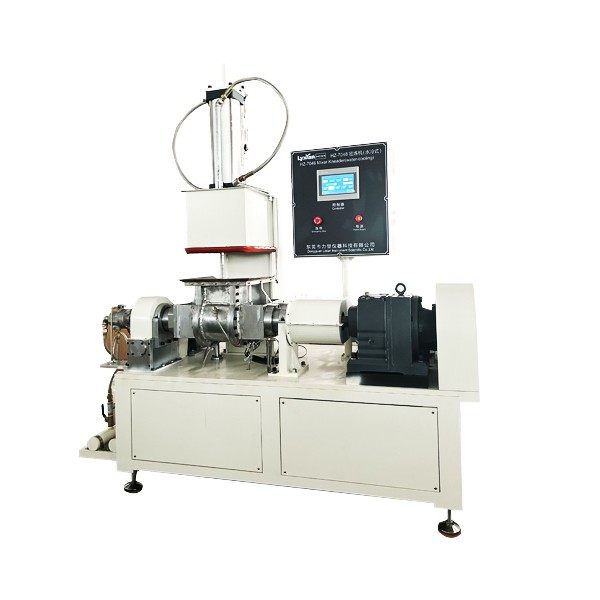

Rubber Mixer HZ-7048
Banbury Kneader with Taiwan technical drawings, advanced technology in China and imported core components, this machine has character itself as environmental-friendly, high-efficiency and good dispersing effect, with human-orientated design and easy to reload and clean, it has been recognized by factory lab, universities and R&D institutions for recipe researching and small-scale production.
  • Tel:+86 13711888650
  • Product Details

Banbury Kneader with Taiwan technical drawings, advanced technology in China and imported core components, this machine has character itself as environmental-friendly, high-efficiency and good dispersing effect, with human-orientated design and easy to reload and clean, it has been recognized by factory lab, universities and R&D institutions for recipe researching and small-scale production.



Equipment summary:
Banbury Kneader with Taiwan technical drawings, advanced technology in China and imported core components, this machine has character itself as environmental-friendly, high-efficiency and good dispersing effect, with human-orientated design and easy to reload and clean, it has been recognized by factory lab, universities and R&D institutions for recipe researching and small-scale production. It can also be used in electric wire, cable, electronics, sole, sports equipments and auto parts industries for rubber, plastic and chemical production mixing and plasticizing.

Detailed Product Description:
Banbury Kneader is applicable to rubber, plastic and chemical industry. And most suitale kneading application: EVA., rubber, TPR, sole, rubber roller, hoses, belts, sponges, vibration insulator, elastic cord, sealing materials, tire, tapes, master batches, pigment, ink, electric rubber parts, chemical industry compounds.

The feature for dispersion kneader:
1. An automatic temperature and time control system to provide a 100% mixing result.
2. Easy to clean chamber and changing colors.
3. In6~10minutes/batch of output equivalent to 2 units of open mixing mill.
4. Pressurized and sealed mixing chamber to provide high mixing performance and prevent the environment.
5. Easy installation, operation and maintenance, lower the running cost.

Technical parameters:
 Model HZ-7048 Banbury Kneader
 Volume 1L, 2L, 3L, 4L, 5L
 Productivity 0.6-3kg/time
 Drive motor 2.2KW
 Turning motor 0.4KW
 Turning angle 110°
 Rotor speed 0-80r/min
 Air Compressor 2.2KW
 The maximum pressure of the mound 0.3MPa
 Discharge method quick opening
 Feeding Method Front materials
 Water cooling (rubber mixing) 0.2-0.4MPa
 Electric heating 1KW
 Weight 600KG
 Dimension 1600X700X2000mm
 Power 380V AC



Customized capacity:
 Capacity (L)123510152025355575
 Drive motor (kW)2.25.55.57.5152230375575110
 Rotating motor (kW)0.20.20.40.40.7511.51.52.234
 Turning angle110°110°110°110°110°110°110°110°140°140°140°
 Air Compressor (kW)2.22.22.22.22.25.55.55.55.55.57.5
 Cooling water (MPa)0.2-0.40.2-0.40.2-0.40.2-0.40.2-0.40.2-0.40.2-0.40.2-0.40.3-0.40.3-0.40.3-0.4
 Electric heating (kW)0.70.81.21.81.92.144.5101518
 Weight (kg)8009001000120023002800450050006500780010800
