ASTM D2295 Glue aging test high and low temperature test chamber

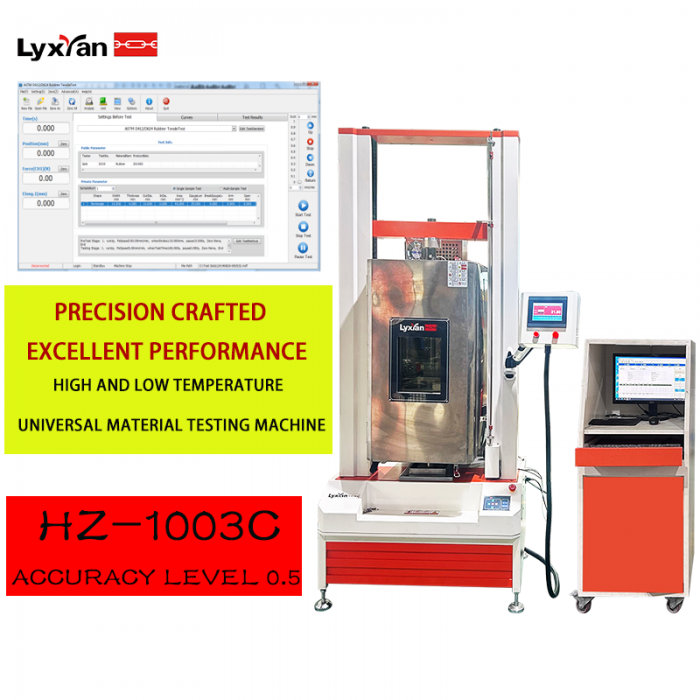

High and Low Temperature Tensile Testing Device HZ-1003C for tests in a temperature range from -70°C to 150°C are used to determine the thermal-elastic behavior, heat resistance and re-crystallization temperature of materials.
  • Tel:+86 13711888650
  • Product Details

Main function:

High and Low Temperature Tensile Testing Device HZ-1003C mainly applied to test the force of metallic and non-metallic materials in the high temperature environment, the force such as tension, compression, bending, shear, peel, tear or two-points extensions (need to add extensometer) and others., the material such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire .

Corresponding standard :
GB/T16491, GB/T 4338, GB/T 6037, GB/T 2951, GB/T 13239, GB/T 2039, HB 5150, HB 5195, HB 5211, HG/T 3868, ASTM D2295, JIS H7601-2, JIS R1606, NF EN 12814-6, BS EN 12814-6

Technical parameter:
ModelHZ-1003C
Load cell1kN, 2kN, 5kN, 10kN
Accurate grade1 grade /0.5 grade
Effective measuring range0.2%100% (1grade) / 0.4%100% (0.5 grade)
Measuring accuracyTolerance ±1% /  tolerance ±0.5%
Tester resolution1/200000
Effective testing width380mm
Effective tensile stroke 1000mm
Range of testing speed0.001500mm/min
Accuracy of displacement measurementTolerance: ±0.5% / tolerance: ±0.2%
Overload protectionOverload 10%, automatic protection
Power systemPanasonic AC Servo Motor + Driver + high-precision ball screw
Temperature rangeNormal temperature200°C
Inside space300*350*500mm
Cooling systemCompression from France
Power supply220V, 50HZ
UnitsKg, N, LB, TON can be exchanged.
