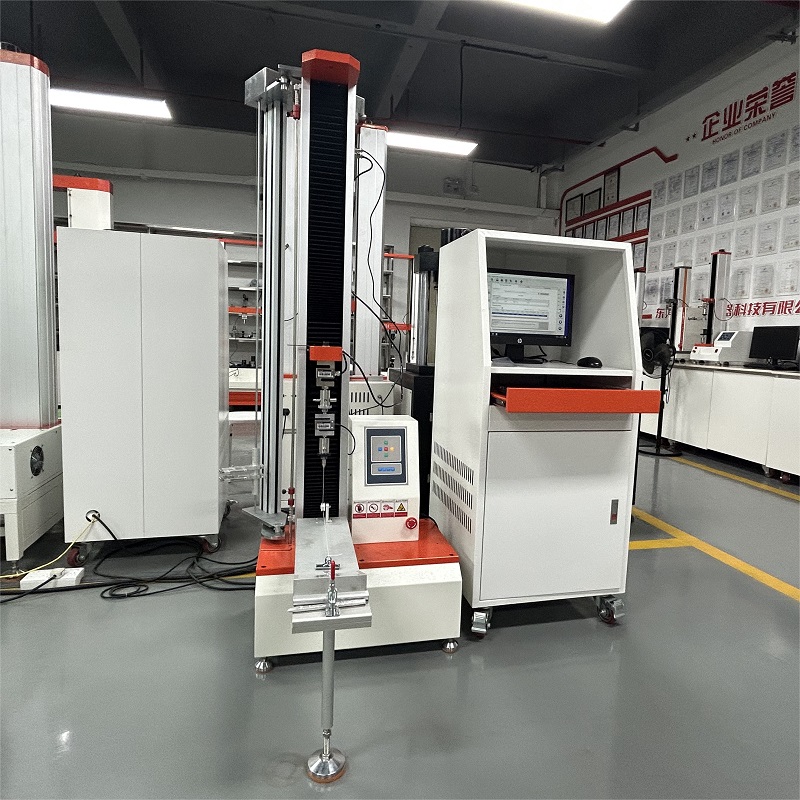

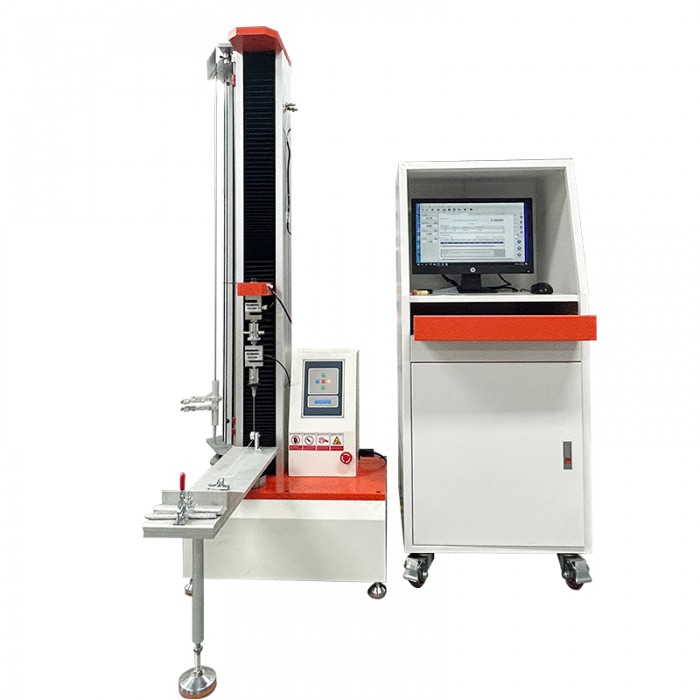

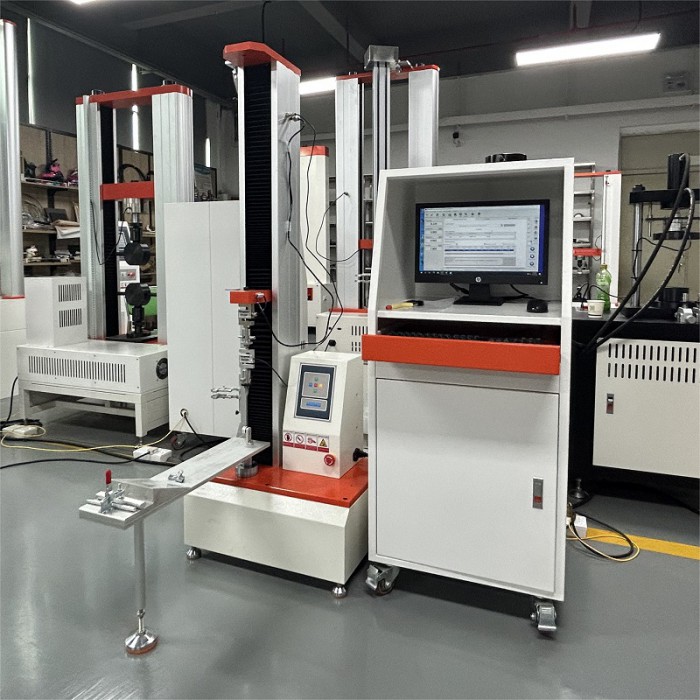

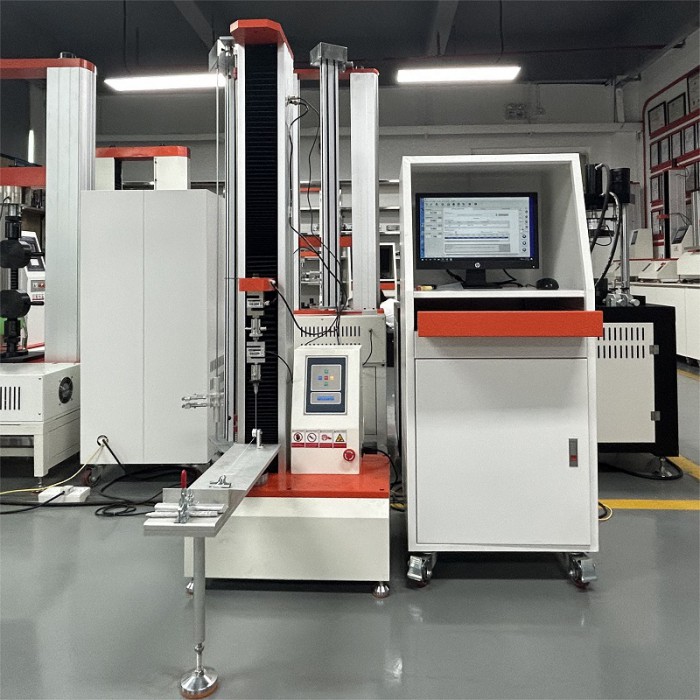

ASTM D5458 Test Standard Plastic Thin Film Elastic Peel adhesion Testing Equipment HZ-1005B
Thin Film Elastic Peel adhesion Testing Equipment is suitable for testing and analyzing mechanical properties such as stretching, compression, tearing, peeling (90 degrees and 180 degrees) of rubber, tires, hoses, tapes, soles, plastics, films, acrylic, FRP, ABS, EVA, PU, ​​aluminum-plastic pipes, composite materials, waterproof materials, fibers, textiles, wires and cables, paper, gold foil, belts, silk threads, springs, wood, medical packaging materials, tapes, etc. It can calculate parameters such as maximum force, tensile strength, bending strength, compressive strength, elastic modulus, elongation at break, yield strength, etc.
  • Tel:+86 13711888650
  • Product Details


Equipment summary:

ASTM D5458 Plastic Thin Film Elastic Peel adhesion Testing Equipment is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This series of machine using single-space structure, operational space at the bottom, it is mainly applied to test Thin Film material Puncture tester which the load is less than 5KN, it has the parameters, such as stress, strain, control mode of displacement,calculated max force, puncture test, tensile strength, bending strength, compressive strength, elastic modulus, rate of elongation, yield strength and others.

Main functions:
HZ-1005B can be test all the material in tensile, compression, bending, shear, peel, tear, two-point extended (need add extensometer) and others for control products quality. Such as textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials.


Corresponding standard:
ASTM D5458

Technical parameters:
Model Number
1005B
Certification
ASTM D5458
Maximum load
5KN
Accurate grade
0.5 grade
Effective tensile stroke
300mm
Test speed
0.01~500mm/min
Unit
KG,N,LB, TON can be exchanged.
Measuring accuracy
the value±0.5%
power
400w
Motor
Delta AC servo motor and drive
Overload protection
Overload 10%, automatic protection

①. Single test, 10-point statistics manually and automatically calculate its average and break values;
②. Multi-unit automatically exchange such as kg, Lb, N;
③. Function of free to take poin
t;
④. With multi-calibration function;
⑤. Auto printing function;
⑥. Using 24-bit AD acquisition, resolution 1 / 200000;
⑦. Decimal digits 0 to 4 arbitrary choice;
⑧. Starting up using password protection feature, which can effectively prevent the non-operators to use
⑨. Ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine

⑩. Overload protection function can be set, effectively preventing machine from overload;
