- Product Details
Equipment summary:

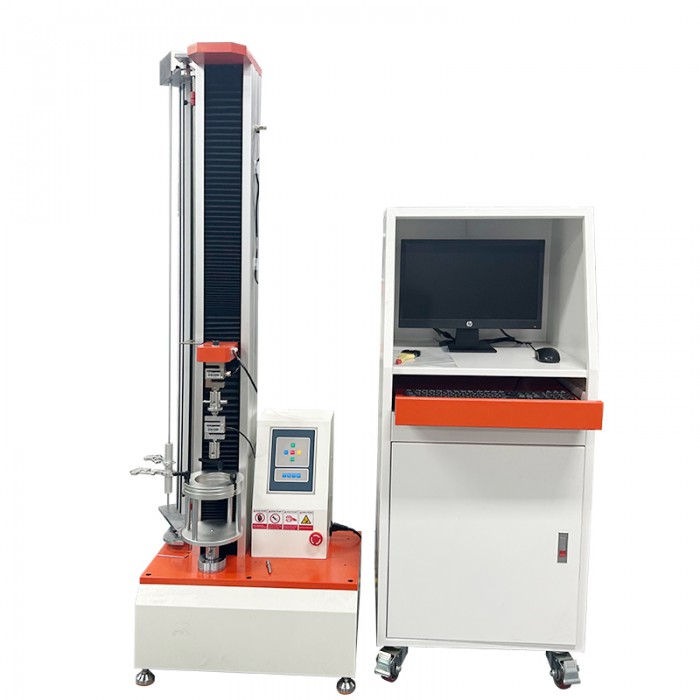

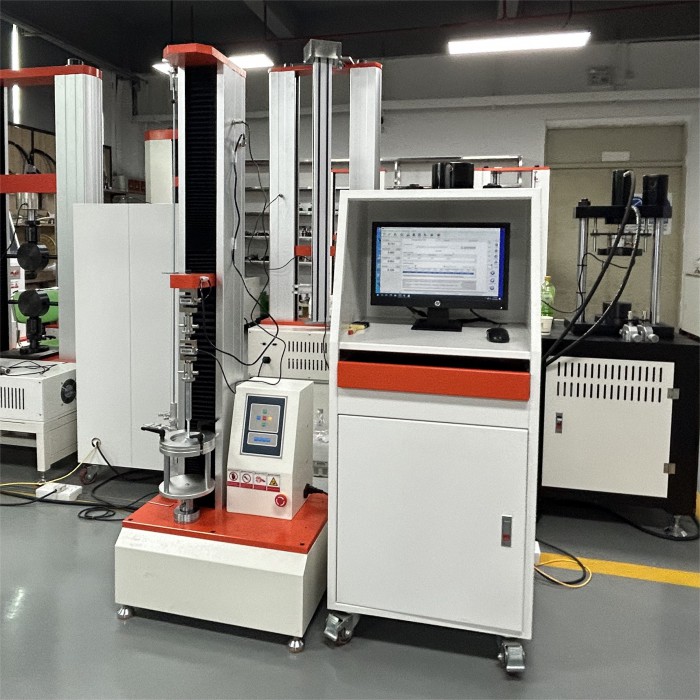

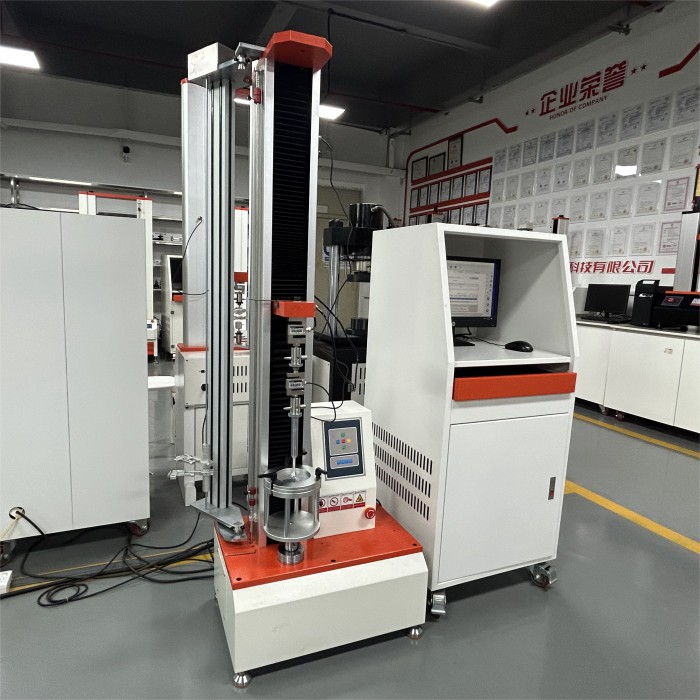

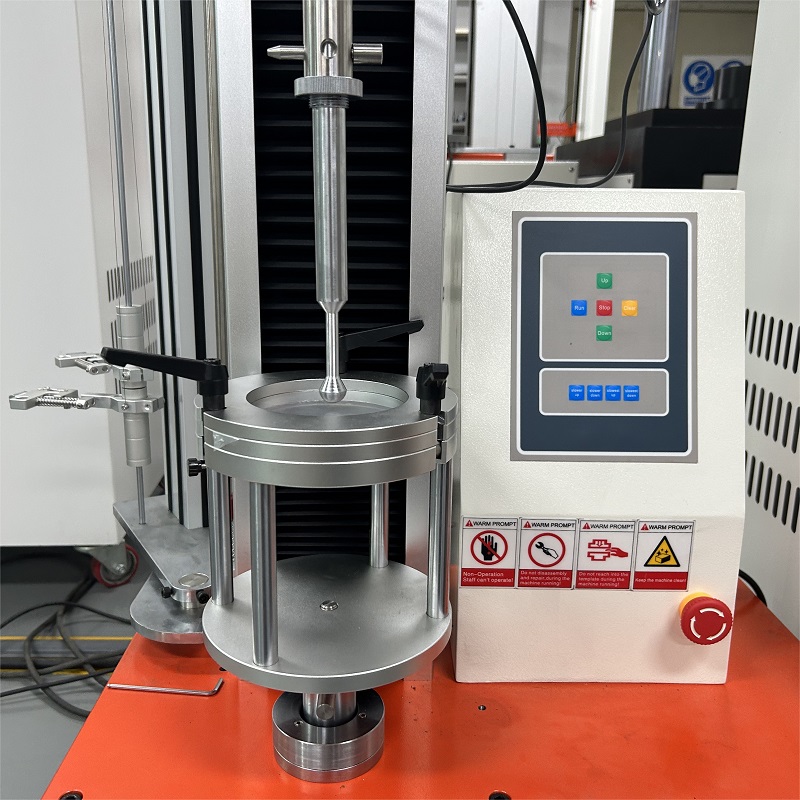

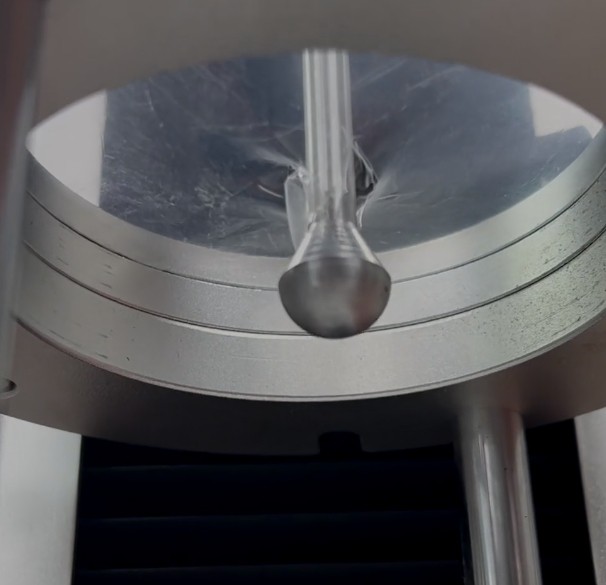

ASTM D5748 Thin Film 5kn Film puncture Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This series of machine using single-space structure, operational space at the bottom, it is mainly applied to test Thin Film material Puncture tester which the load is less than 5KN, it has the parameters, such as stress, strain, control mode of displacement,calculated max force, puncture test, tensile strength, bending strength, compressive strength, elastic modulus, rate of elongation, yield strength and others.Main functions:
HZ-1005B can be test all the material in tensile, compression, bending, shear, peel, tear, two-point extended (need add extensometer) and others for control products quality. Such as textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials.
Corresponding standard:
ASTM D5748
Technical parameters:
Machine has function of printing.
Can store 10 testing results and auto-calculate its average, auto-grab maximum force and the force at break.
Display: HZ-2000 dark blue LCD display, membrane touch keys, with the following functions.
①. Single test, 10-point statistics manually and automatically calculate its average and break values;
②. Multi-unit automatically exchange such as kg, Lb, N;
③. Function of free to take point;
④. With multi-calibration function;
⑤. Auto printing function;
⑥. Using 24-bit AD acquisition, resolution 1 / 200000;
⑦. Decimal digits 0 to 4 arbitrary choice;
⑧. Starting up using password protection feature, which can effectively prevent the non-operators to use
⑨. Ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine
Display: HZ-2000 dark blue LCD display, membrane touch keys, with the following functions.
①. Single test, 10-point statistics manually and automatically calculate its average and break values;
②. Multi-unit automatically exchange such as kg, Lb, N;
③. Function of free to take point;
④. With multi-calibration function;
⑤. Auto printing function;
⑥. Using 24-bit AD acquisition, resolution 1 / 200000;
⑦. Decimal digits 0 to 4 arbitrary choice;
⑧. Starting up using password protection feature, which can effectively prevent the non-operators to use
⑨. Ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine
⑩. Overload protection function can be set, effectively preventing machine from overload;
More machine types
 |  |  |  |  |  |
| HZ-1007A | HZ-1007C | HZ-1007E | HZ-1003E | HZ-1005B | HZ-1005A |
| Max Force:200kg | Max Force:200kg | Max Force:100kg | Max Force:500kg | Max Force:500kg | Max Force:500kg |
 |  |  |  |  |  |
| HZ-1003A | HZ-1004A | HZ-1009A | HZ-1010A | HZ-1009C | HZ-1009B |
| Max Force:3T | Max Force:500kg | Max Force:10T | Max Force:3T | Max Force:10T | Max Force:30T |
