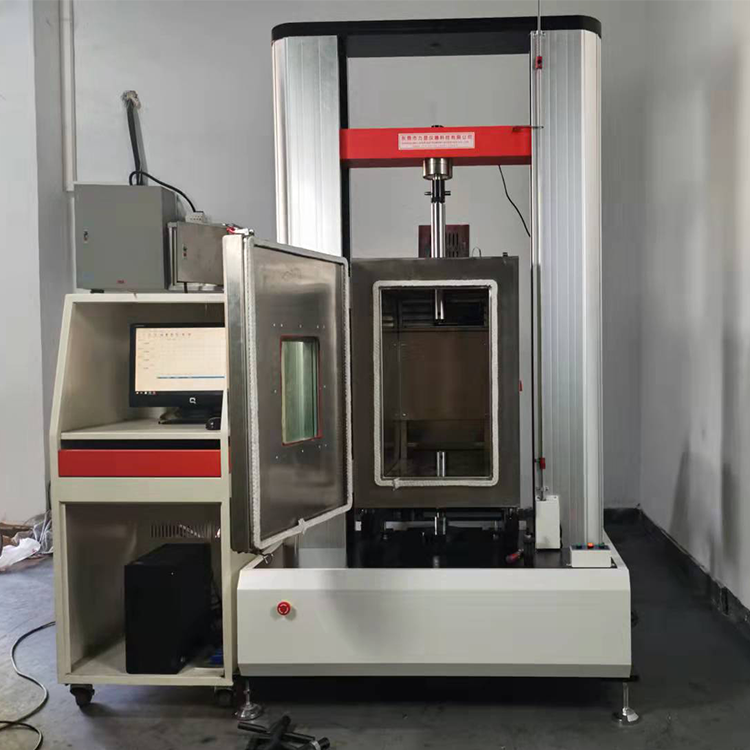

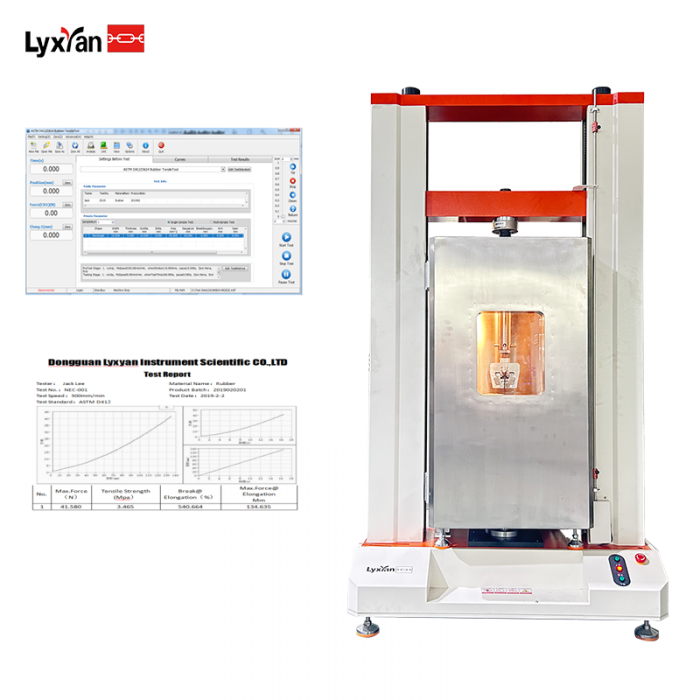

Computerized high temperature servo material testing machine HZ-1009C
HZ-1009C manufacturers is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement. Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement.
  • Tel:+86 13711888650
  • Product Details
Equipment summary:
Universal testing machine manufacturers HZ-1009C is simple to operate, especially suitable for controlling quality in production line This series of machine is mainly applied to test the non-metallic and metallic materials which the load is 20ton.

Main function:

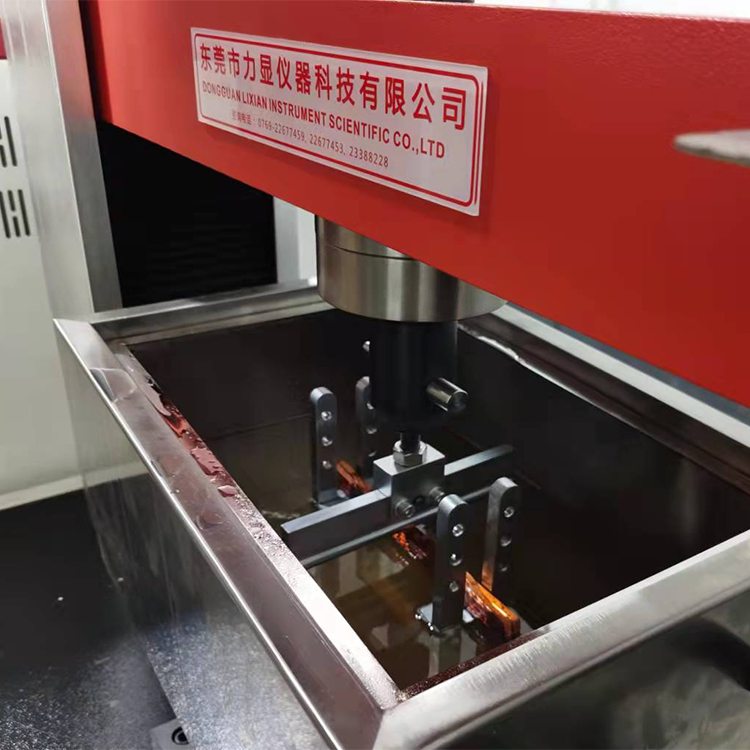

Universal testing machine manufacturers HZ-1009C mainly applied to test the force of metallic and non-metallic materials in the high or low temperature environment, the force such as tension, compression, bending, shear, peel, tear or two-points extensions and others., the material such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire.

Corresponding standard:
GB/T16491, GB/T 4338, GB/T 6037, GB/T 2951, GB/T 13239, GB/T 2039, HB 5150, HB 5195, HB 5211, HG/T 3868, ASTM D2295, JIS H7601-2, JIS R1606, NF EN 12814-6, BS EN 12814-6

Technical parameter:
ModelHZ-1009C
Maximum load2ton, 5ton, 10ton, 20 ton option
Accurate grade1grade /0.5 grade
Effective measuring range0.2%100% (1 grade) / 0.4%100% (0.5 grade)
Measuring accuracythe value ±1% / the value ±0.5%
Tester resolutionMax load 1/200000, regardless of inside and outside, constant the resolution
Load sensorBasic configurationsensormax load: one
Effective testing width400mm (can be customized)
Effective tensile stroke1000mm; 1200mm; 1400mm (can be customized)
Range of testing speed0.001500mm/min
Accuracy of displacement measurementTolerance: ±0.5%/ tolerance: ±0.2%
Deformation of measured systemMin span: 10mm, Max range of deformation: 800mm
Extended deformation span: 25mm, 50mm, 100mm, Max range of deformation: 5mm, 10mm, 25mm
Accuracy of measured deformationTolerance: ±0.5% (according to requirement of customer to choose the larger or small deformation)
SafetyElectronic-limit protection
Testing platform moving  deviceFast /slow  two speeds to control, can jog
Return backManual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protectionOverload 10%, automatic protection
FixtureAccording to customer's need
Machine size107*56*210cm (length*width*height)
MotorPanasonic AC servo motor and drive
Temperature range20°C300°C
Form of temperature displayDigital display 4 digits

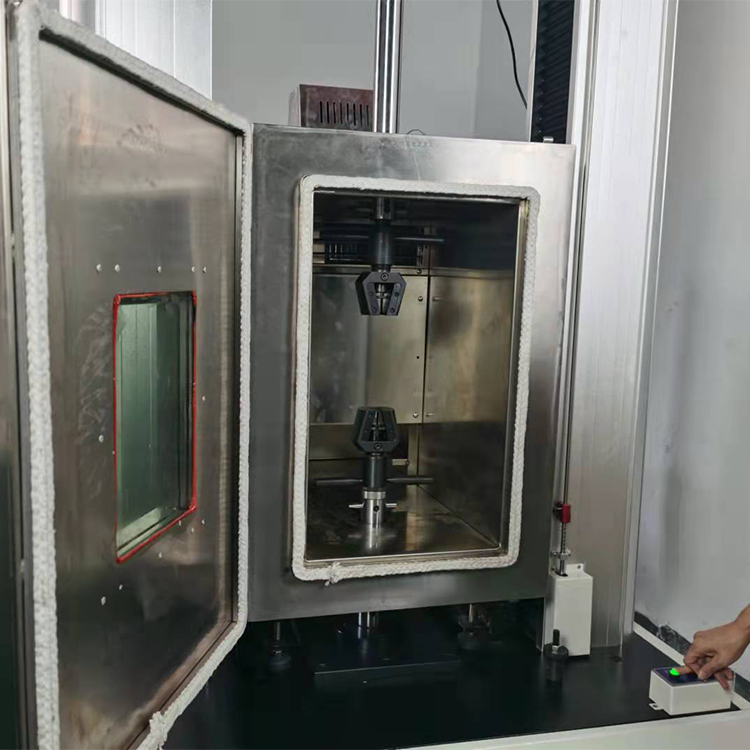

Inside space360*360*600mm
Cooling systemCompressor from France Tecumseh
Power supply220V, 50HZ
Power0.75KW (depending on different demand of force, using different motor)
Weight(about) 320Kg
UnitKg, N, LB, TON can be exchanged.
