Features
1.Test curves and data results can dynamic display on the computer, and arbitrary set, curve operation more simpleand easy.
2. Could curve editorial, overlay, separation, scaling, print all electronic display monitor, etc, any time.

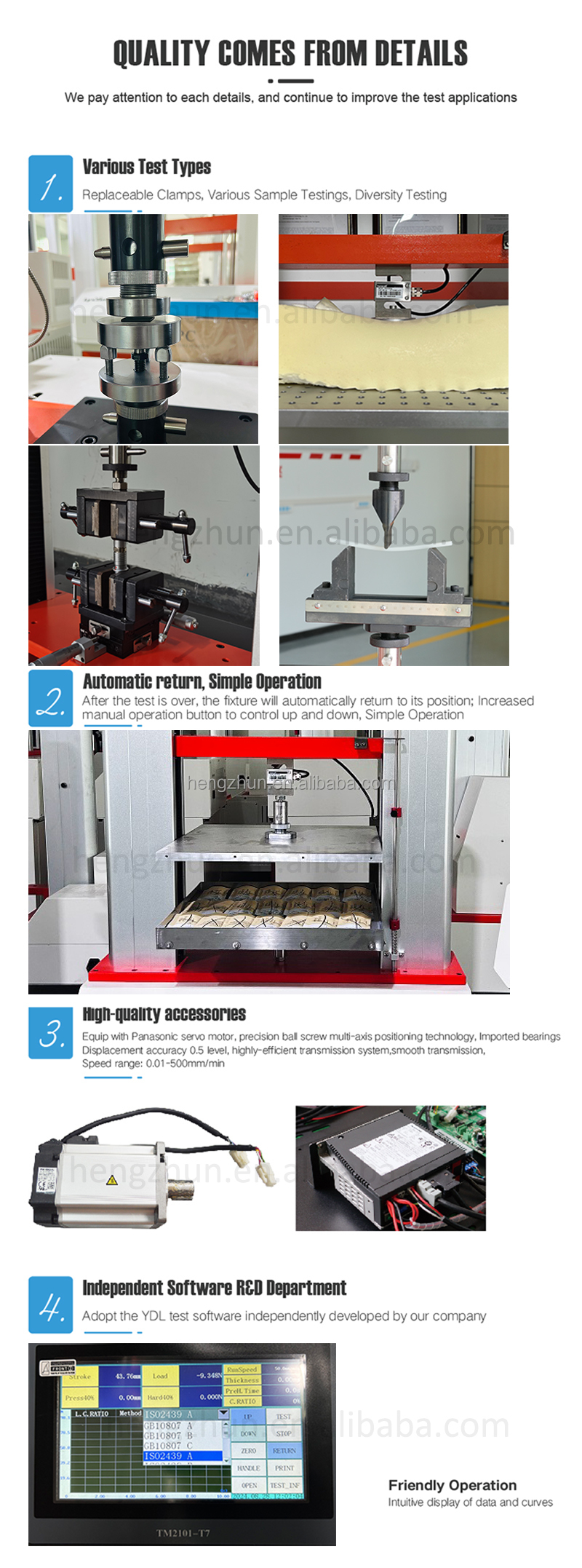

3. The entire data acquisition step, use servo motor and reducer, drive the ball screw make the displacement of the machine up and down，balancing and stableto lengthen the service life of the machine and use efficiency;

4. The system can reflect more accurate force value, deformation, time and contact computer to realize the full computer control and print the standard test report.

Test maininterface

Can set the sample parameters, set thefixed speed, positioning shift, positioningforce and other tests

Test Graph

Showing the real time test procedure，Including Force，time，elongation etc， optional.

Test Result

Can output word，Excel，PDF file test result，company title，LOGO and test information can beedited.

Software Features
The software description about Computer Servo Type Universal Testing Machine
1. Function of standard modular: provide users with the necessary applications to thetest, covering GB, ASTM, DIN, JIS, BS ... and other testing standard specification.
2. Tested product information: provide users with the data to set about the products, one time to input and re-use permanently. For improving the accuracy, the data can be corrected by the formula automatically.
3. Dual-Report Editor: provide users with the reported format that users choose (testing program add EXCEL reported format, Extend the previous single pattern of statements)
4.The data’s unit of length and force can be exchanged, unit of force is T, Kg, N, KN, g, lb, unit of length is mm, cm, inch.

5. Auto-optimization of graphic scale, display the best measurement of graphics. It can test the moving exchange in graphics. It has the load - displacement, load - time, displacement - time, stress - strain load -2 points extending maps, and lots of graph compared.

6. Test results can be output in EXCEL,Word,PDF * Testing result can be automatically preserved or manual preserved, after the test, it can automatically calculate the most strength, up and down yield strength, loop method, best method, non-proportional extended strength, tensile strength, compressive strength, tensile strength at any point, constant load extension, elastic modulus, rate of elongation, peel range of maximum force, minimum force, average force, total energy, bending modulus, x% load in break displacement, load X% in break displacement, and so on . the test data can be stored in any disk.
