PE protective film tensile strength testing equipment

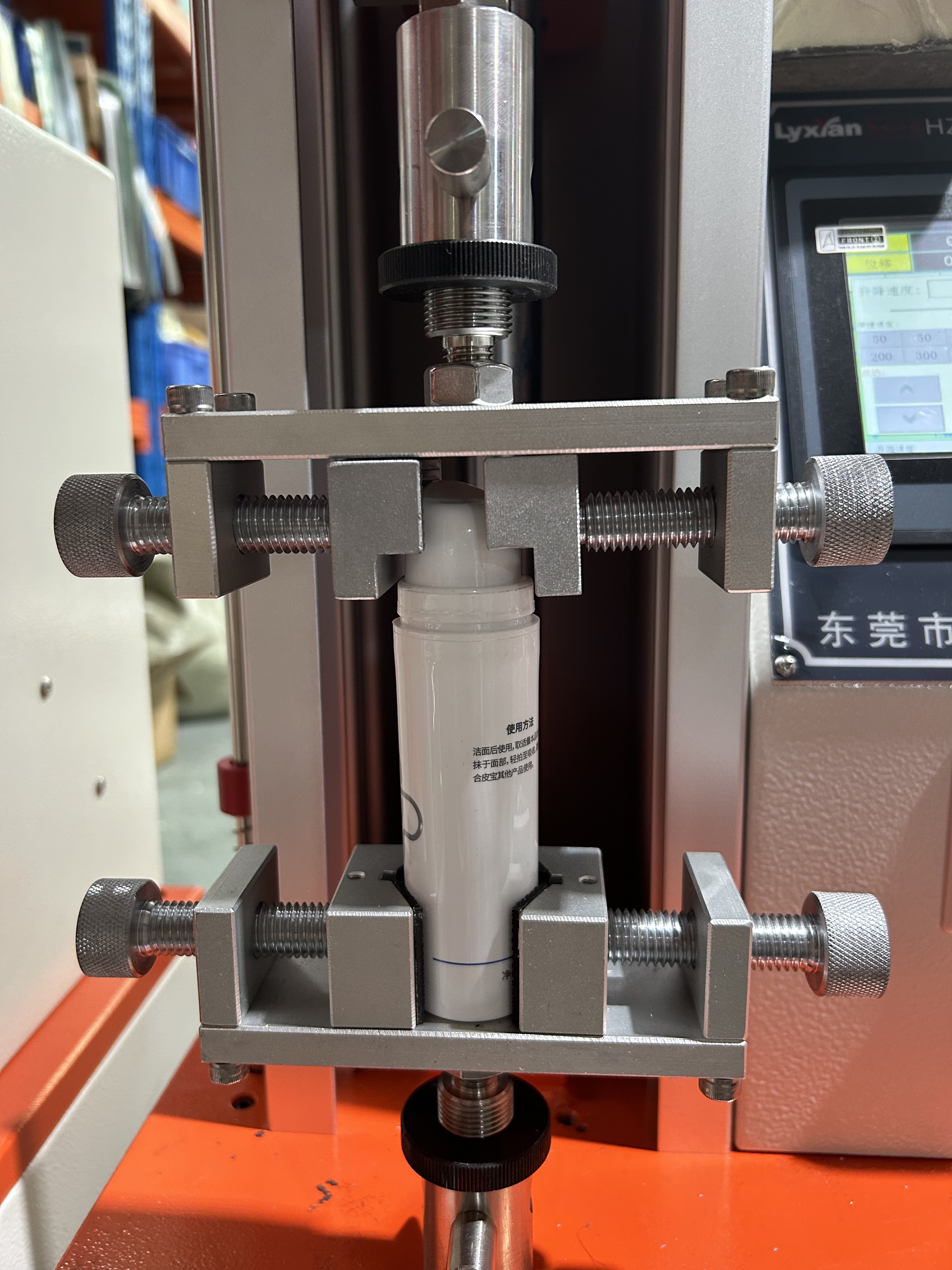

PE protective film tensile strength testing equipment is a simple type machine, simple structure, convenient operation, it can be tested on the operated table, Using the electronic control systems, load sensor is rising and falling to test the tension or compression through the motor rotation, transmission machinery and T-screws.
  • Tel:+86 13711888650
  • Product Details
Main feature:
1. Excellent design. my company has focused on product appearance over the years, company has developed many products that is similar with the foreign products, the surface of product is made of aluminum and   process by electrostatic spray.
2. Digital force displayed by LCD, discernible tension or pressure, LCD display clearly.
3. Three kinds of units: N, Kg, Lb, Ton option or automatically exchange;
4. LCD with backlight can be used in low-light environments.
5. Single measurement, it can record the max force of tension and compression in both directions, automatic or manual cleared to zero.
6. The system would shut down if overload or over-trip.
7. Structure of single-column is beautiful and sophisticated, seating operation, relaxation and nature.

Corresponding standard:
GB/T 16491, GB/T 1040, GB/T 8808, ASTM D3759, ASTM D3330, ASTM D882, JIS K 6854, ASTM E4, ASTM D828, ASTM D1938, ASTM F88, ASTM F904, ISO 37, JIS P8113.

Technical parameters:

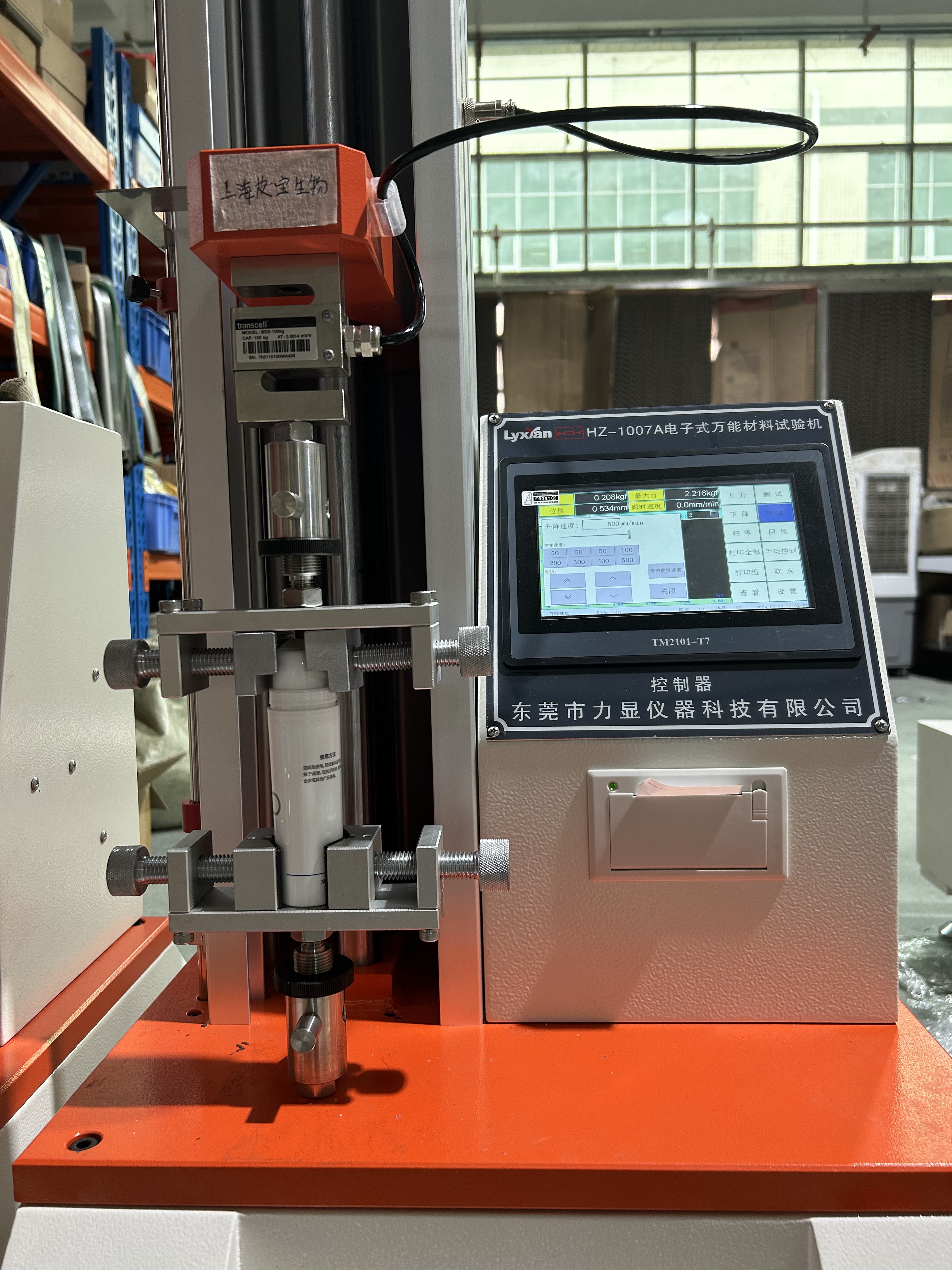

 Model HZ-1007A PE protective film tensile strength testing equipment
 Maximum load 100kg
 Capacity choice 20kg, 50kg, 100kg or less than can be self-selected
 Unit KG,N,LB, TON can be exchanged.
 Measurement system Load cell + HZ-2000
 Accuracy load of measurement the load cell + HZ-2000 screen ± 0.5% (full range of 5% -100%)
 Resolution 1 / 50000
 Maximum test stoke About 500mm (excluding gripper, can be customized)
 Test speed 50-300mm/min with stepless speed and 5 fixed-speed (can be customized)
 Data sampling frequency 200times/sec
 Display HZ-2000 dark blue LCD display, membrane touch keys, with the following functions.
 Machine size 45x55x140cm (length*width*height)
 Weight 75KG
 Ratio of  Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine,
 realizing stop machine at any position.
 Safety The system would shut down if overload or over-trip.
 Shape column shell is made of aluminum material.
 Power system AC Motor
 Power 120W (depending on different motors)
 Power supply 1Φ, 220V, 15A
