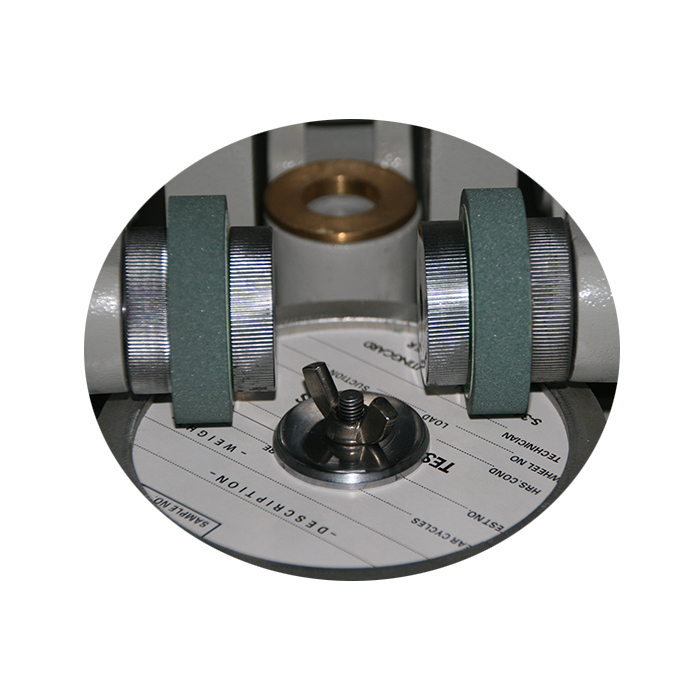

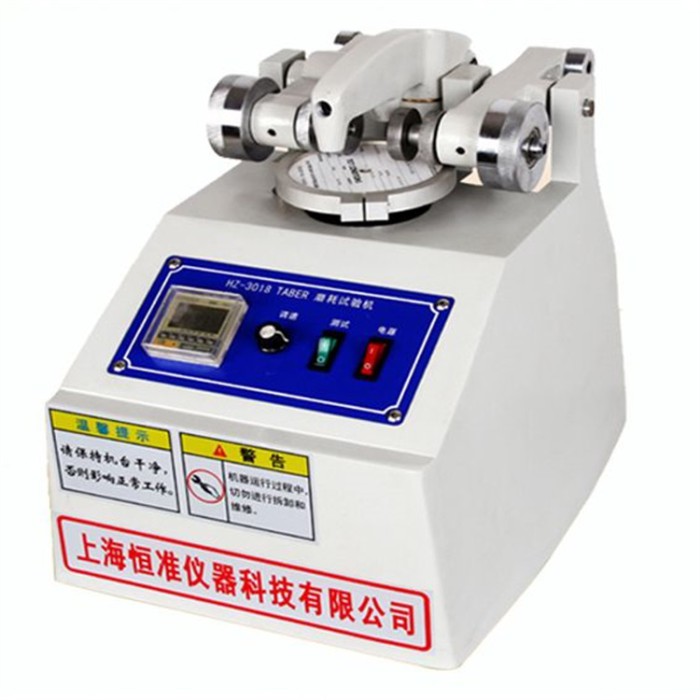

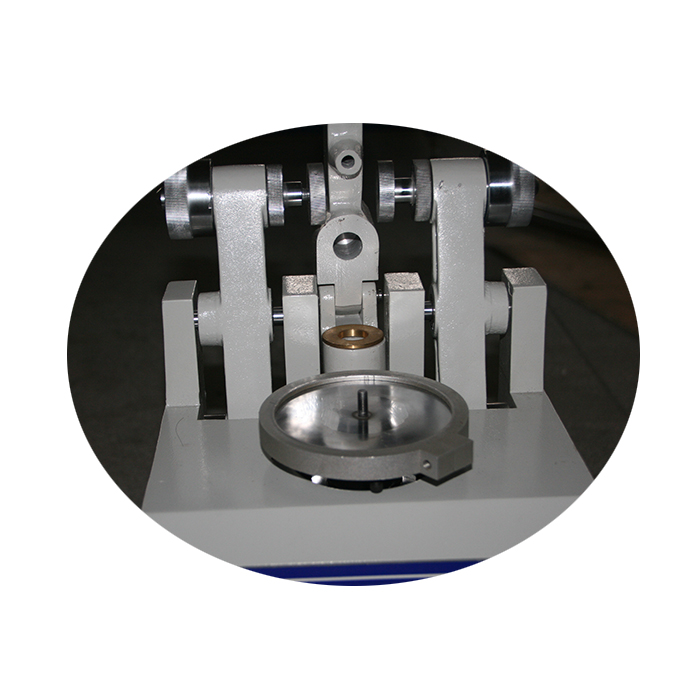

The abrasion tester is suitable for the wear test of leather, cloth, paint, paper, floor, plywood, glass, natural rubber, etc. The method is to cut the test piece with a standard cutter, use a specified type of grinding wheel, and wear it with a certain weight. After the specified number of revolutions, take out the test piece and observe the condition of the test piece after grinding or the weight difference between the test piece before and after the test. The grinding wheel models available are: H18, H22, CS17, S32, S33

The standards met by the abrasion tester:

DIN-53754, 53799, 53109, 52347, TAPPI-T476, ASTM-D1044, D3884, ISO-5470

Industries where the abrasion tester is used:

Travel luggage, carpets, cardboard, clothing, glass, plastic coatings, tiles, metal plating, paint, varnish, decorative sheets, high-pressure sheets, plastics, textiles, elastic floor mats, traffic paint, anodized layers, blankets, electronic components, decorative panels, wax, labels, leather cases, dental materials, automotive interior decorations, resins, furniture and scientific research laboratories; commodity inspection arbitration, technical supervision departments, etc. to test the performance of leather products

Test reference:

Technical parameters:

Test piece: 120×6.5×3mm

Weight: 250g, 500g, 1000g

Counter: 6-digit electronic display, automatic shutdown

Test plate speed: 0-70 adjustable

Machine size: 30×43×30cm

Machine weight: 30kg

Accessories: 1 wrench, 1 set of grinding wheels, 2 weights (250g, 500g, 750g) each. 1 vacuum cleaner.

Power supply: AC220V/50HZ
