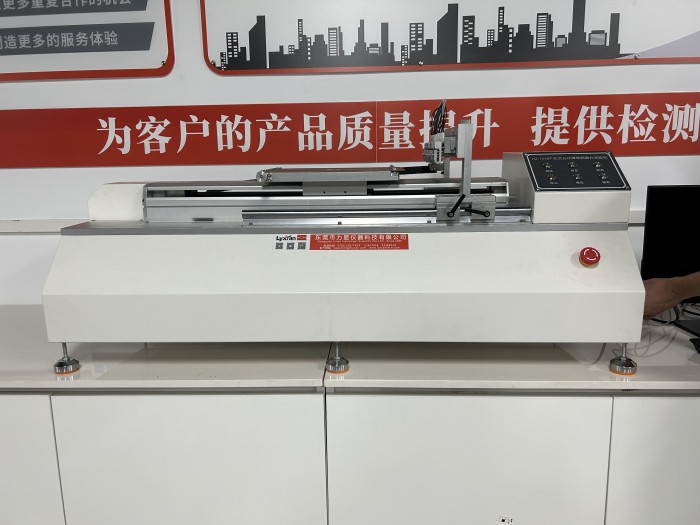

Tape 20-station horizontal photovoltaic peel tester

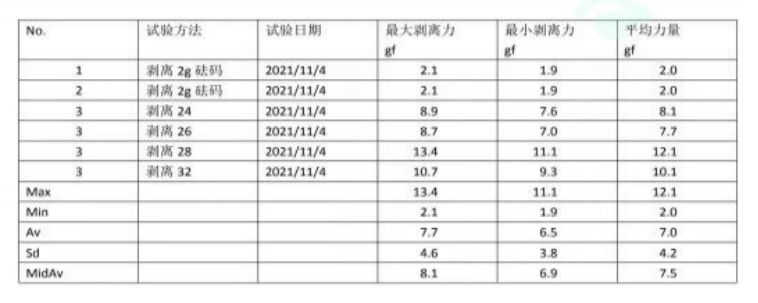

The MN Series horizontal peel tester uses a PC and interface board to collect, store, process, and print test results. It can calculate parameters such as maximum force, tensile strength, elongation at break, maximum peel force, minimum peel force, average peel force, maximum peel strength, minimum peel strength, average peel strength, range, loop tack, unwinding force, puncture force, puncture strength, bag sealing force, and adhesive strength. The system is also powerful with multi-curve processing, multi-sensor support, a graphical interface, flexible data processing, and MS-ACCESS 2003 database support. The system supports multiple languages, and the display names of test data database fields are automatically translated based on the selected text, making data easily viewable in the local language and suitable for use worldwide. It supports three types of units: SI international standard units, kg-cm units, and Lb-inch imperial units, as well as six common units: N-mm-MPa, kN-mm-MPa, gf-cm-kgf/cm, kgf-cm-kgf/cm², Lb-inch-kpsi, and kP-inch-kpsi. Unit switching is easy, meeting the needs of different regional standards.

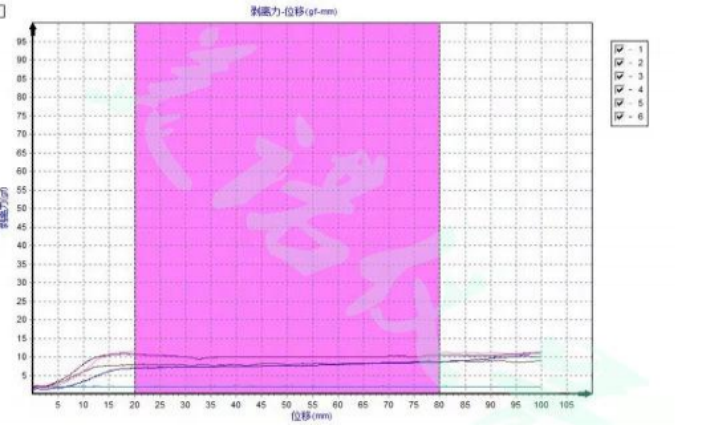

It is suitable for various mechanical testing items (such as peeling, tensile, tearing, compression, bending, shearing, splitting strength, four-point bending, three-point bending, peeling, puncture, bag sealing force, roll adhesive unwinding force, etc.) for various materials, copper foil, aluminum foil, pole pieces, photovoltaic industry, adhesives, release films and release papers, self-adhesive labels, protective films, composite films, plastics, polymer materials, composite materials, safety belts, alloy materials and other non-metallic materials and metal materials. It is fully computer-controlled, with automatic shutdown and reset, automatic data saving, automatic OK/NG judgment, display of force curve, and generation of data reports.
