In the electromagnetic wire industry, mechanical performance is inseparable from electrical reliability. From motor windings and transformer coils to generator components and automotive electrical systems, magnet wire must maintain precise mechanical properties while withstanding the stresses of winding, installation, and operation. At Guangdong Lixian Instruments Co., Ltd. , we provide advanced testing equipment engineered to meet the rigorous demands of electromagnetic wire quality assurance. Our HZ-1003A Computer Servo Universal Testing Machine delivers precise, repeatable, and standards-compliant mechanical testing for all electromagnetic wire materials, helping manufacturers validate performance and ensure long-term reliability .
Why Universal Testing is Essential for Electromagnetic Wire Materials
Electromagnetic wires are subjected to diverse mechanical stresses during manufacturing and service—from high-speed winding operations to thermal cycling and vibration in end-use applications. Without rigorous mechanical validation, manufacturers risk:
Wire breakage during coil winding operations, causing production interruptions and scrap
Insufficient elongation leading to cracking under thermal stress or during installation
Poor tensile strength compromising reliability in high-vibration environments
Inconsistent mechanical properties affecting downstream processes and final product performance
Non-compliance with industry standards and customer specifications
The HZ-1003A Computer Servo Universal Testing Machine from Guangdong Lixian Instruments Co., Ltd. addresses these challenges through comprehensive mechanical characterization, enabling manufacturers to assess critical parameters including tensile force, tensile strength, elongation at break, yield strength, and elastic modulus .

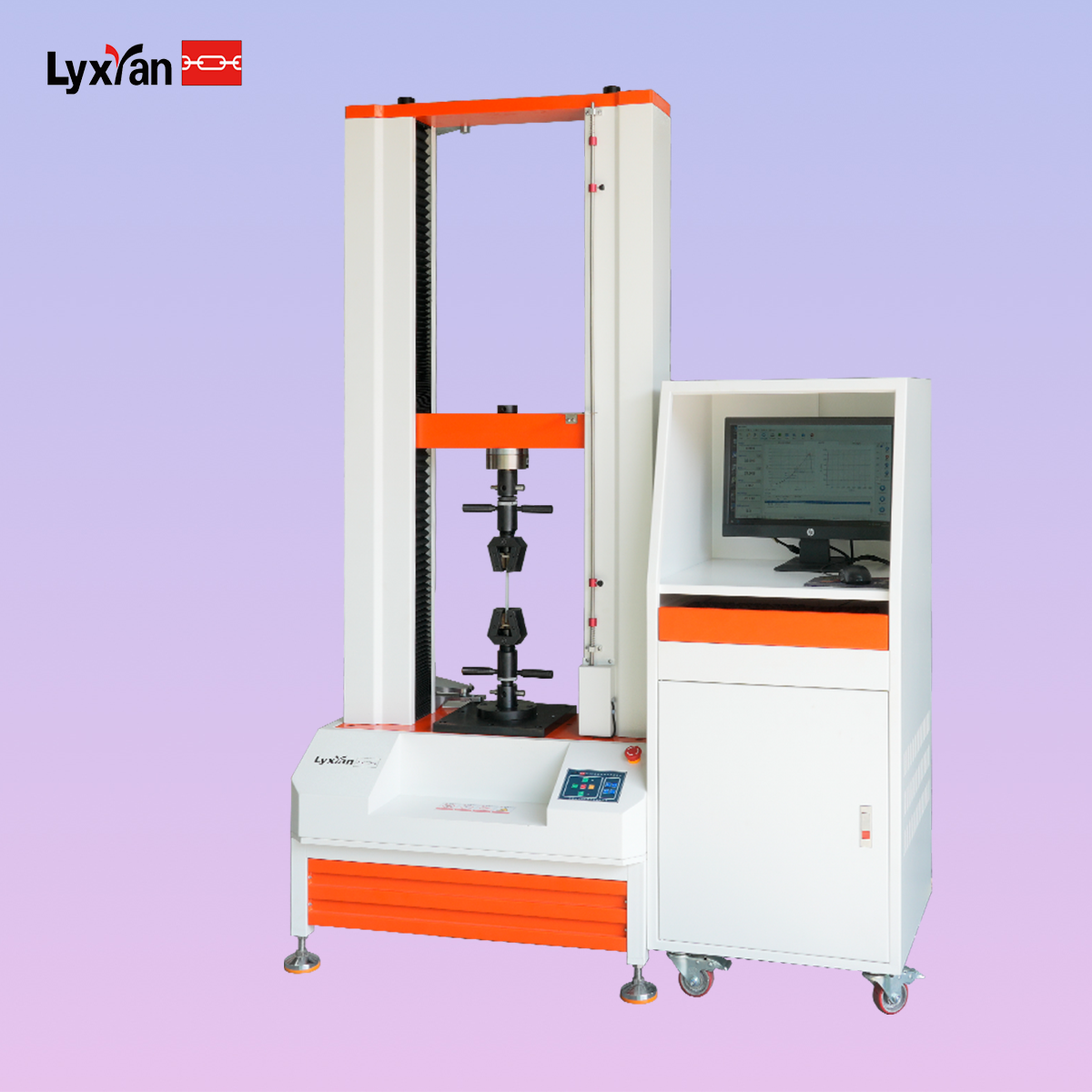

Key Features of the HZ-1003A Computer Servo Universal Testing Machine
Advanced Servo Control Technology: The HZ-1003A utilizes a high-performance servo motor system combined with precision ball screw transmission, ensuring stable, accurate load application with exceptional control precision across the entire test speed range of 0.001 to 500 mm/min .
Superior Force Measurement Accuracy: Equipped with high-precision load sensors, the system achieves force control accuracy of ±0.5% of indicated value (0.5-class accuracy), ensuring every data point is reliable and repeatable. With resolution of 1/200,000 of full load, the machine detects even subtle variations in wire mechanical properties .
Comprehensive Testing Capabilities: The HZ-1003A supports a full range of mechanical tests essential for electromagnetic wire evaluation:
Tensile strength testing for copper, aluminum, and alloy conductors
Elongation at break measurement to assess ductility
Yield strength determination for material characterization
Elastic modulus calculation for design data
Stress-strain curve generation for comprehensive material analysis
Specialized Electromagnetic Wire Gripping Solutions: Designed specifically for wire applications, the system accommodates grips suitable for various wire diameters—from fine magnet wire (0.1mm and above) to heavy rectangular conductors—ensuring secure clamping without slippage or damage during tensile testing .

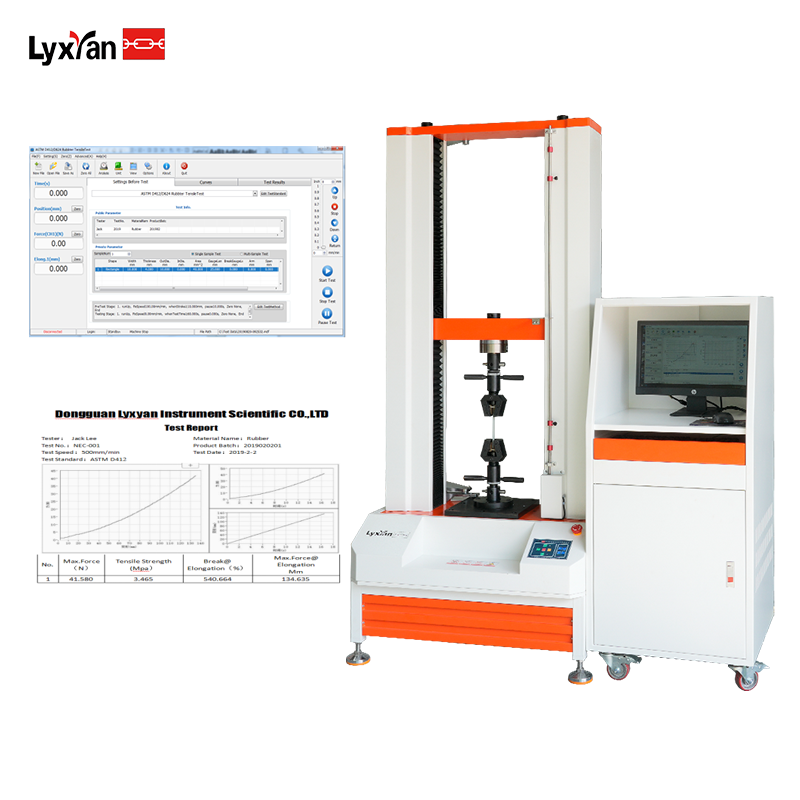

Intelligent RealTest® Software: Preloaded with comprehensive testing functions, the software automates data collection, curve analysis, and report generation. It automatically calculates tensile stress, tensile strength, elongation at break, fixed stress, and other key parameters, enabling quick identification of production inconsistencies .
Robust Mechanical Construction: A rigid double-column structure with effective test width and tensile stroke up to 800mm ensures stable operation and long-term durability in demanding laboratory or production environments .
Comprehensive Safety Features: Equipped with electronic limit protection, overload protection (automatic shutdown at 10% over capacity), and emergency stop functions to ensure operator safety during all test procedures .
Technical Specifications at a Glance
| Parameter | Specification |
|---|---|
| Model | HZ-1003A Computer Servo Universal Testing Machine |
| Maximum Load | 100N to 20KN options available (customizable for electromagnetic wire applications) |
| Accuracy Class | 0.5 class |
| Effective Force Range | 0.4% – 100% (0.5 class) |
| Load Measurement Accuracy | ±0.5% of indicated value |
| Resolution | 1/200,000 of full load, constant throughout range |
| Test Speed Range | 0.001 – 500 mm/min, fully adjustable |
| Displacement Accuracy | ≤0.5% of indicated value |
| Effective Test Width | 390mm (customizable) |
| Effective Tensile Stroke | 400–800mm (customizable) |
| Power Supply | 220V, 50Hz |
| Host Weight | Approx. 300 kg |
| Drive System | High-performance AC servo motor + driver + high-precision ball screw |
How the HZ-1003A Enhances Electromagnetic Wire Quality Assurance
The HZ-1003A Computer Servo Universal Testing Machine provides critical capabilities for electromagnetic wire manufacturers, motor and transformer producers, and quality control laboratories :
Validate Conductor Properties: Ensure copper, aluminum, or alloy conductors meet specified tensile strength and elongation requirements for reliable winding and operation .
Optimize Annealing Processes: Correlate mechanical properties with annealing parameters to achieve optimal ductility for fine wire applications .
Ensure Compliance: Meet IEC 60851, GB/T 4074, ASTM B193, and customer specifications for wire mechanical performance .
Conduct Incoming Inspection: Verify supplier quality for purchased wire stock before production .
Support R&D Initiatives: Characterize new conductor alloys and insulation systems for next-generation products .
Reduce Field Failures: Identify potential weaknesses before wires reach customer applications, minimizing warranty claims .
Standards Compliance for Global Acceptance
The HZ-1003A Computer Servo Universal Testing Machine supports testing in accordance with key international and national standards for electromagnetic wire materials:
IEC 60851 – Winding wires – Test methods (all parts)
GB/T 4074 – Winding wires – Test methods
ASTM B193 – Standard Test Method for Resistivity of Electrical Conductor Materials
ASTM B624 – Standard Specification for High-Strength, High-Conductivity Copper-Alloy Wire for Electronic Application
ISO 6892 – Metallic materials – Tensile testing
GB/T 16491 – Electronic universal testing machines
JIS C 3003 – Test methods for magnet wires
Applications Across the Electromagnetic Wire Industry
The HZ-1003A serves diverse applications throughout electromagnetic wire manufacturing and related industries :
Magnet Wire Manufacturers: Testing round, rectangular, and shaped conductors for motor, transformer, and generator applications
Cable Producers: Validating mechanical properties of stranded conductors and insulated wires
Motor Manufacturers: Incoming inspection of winding wire for quality assurance
Transformer Producers: Verifying conductor properties for reliable coil winding
Automotive Suppliers: Testing wire for electric vehicle motors, sensors, and electrical systems
Aerospace & Defense: Validating high-reliability wire for critical applications
Research Institutions: Characterizing new materials and developing improved wire designs
A Trusted Partner in Precision Testing
As a leading manufacturer of testing instruments and detection equipment, Guangdong Lixian Instruments Co., Ltd. combines decades of instrument R&D experience with deep industry knowledge. Founded in 2000 and headquartered in Dongguan, Guangdong province, the company operates a modern 6000-square-meter production facility and serves clients in over 60 countries with products certified to CE, ISO, ASTM, and other international standards .
Our professional R&D team, rigorous quality management systems, and advanced manufacturing capabilities ensure that every HZ-1003A undergoes strict quality inspection, performance testing, and validation before shipment, guaranteeing stable and reliable long-term operation in demanding laboratory or production environments .
Comprehensive Customer Support
Beyond high-quality testing equipment, Guangdong Lixian Instruments Co., Ltd. provides complete support to ensure your success:
12-month product warranty with lifetime service support
Pre-sales consultation: Expert guidance to select appropriate test methods and equipment parameters based on your specific wire materials and quality requirements
Installation and training: On-site commissioning and operation training to ensure your team quickly masters equipment use
After-sales service: Professional maintenance team providing timely repairs, spare parts replacement, and technical support to minimize production disruption
Calibration services: Regular calibration to maintain accuracy and compliance
Test with Confidence, Conduct with Certainty
In the competitive electromagnetic wire market, where reliability directly impacts motor performance, transformer efficiency, and electrical system safety, only manufacturers who rigorously validate mechanical properties can earn customer trust and maintain competitive advantage. The HZ-1003A Computer Servo Universal Testing Machine from Guangdong Lixian Instruments Co., Ltd. offers the precision, reliability, and comprehensive testing capabilities needed to ensure your electromagnetic wires meet the most demanding performance requirements—from fine magnet wire to heavy rectangular conductors.
Whether you are a small-scale wire producer or a large-scale manufacturer serving global motor, transformer, and automotive markets, our testing equipment delivers the accuracy and dependability required to protect your reputation and bottom line.
Contact Guangdong Lixian Instruments Co., Ltd. today to learn more about how our universal testing equipment can enhance your electromagnetic wire evaluation processes. Request a detailed technical specification, arrange a product demonstration, or consult with our application specialists to discuss your specific testing requirements.
Guangdong Lixian Instruments Co., Ltd. — Precision Engineered for Conducting Excellence.
