In the rubber and plastics industry, the vulcanization process is the critical transformation that turns raw polymer compounds into finished products with the desired mechanical properties, durability, and performance characteristics. From automotive seals and industrial gaskets to footwear soles and medical tubing, the quality of the vulcanization process directly determines product success. At Guangdong Lixian Instruments Co., Ltd. , we provide precision testing equipment engineered to meet these critical challenges. Our HZ-7014 Flat Vulcanizing Press delivers accurate, repeatable, and controlled compression molding and vulcanization, helping manufacturers optimize formulations, control quality, and ensure consistent product performance.
Why Flat Vulcanizing Press Testing is Essential for Rubber & Plastic Materials
The vulcanization process involves complex chemical crosslinking that transforms rubber from a thermoplastic to an elastomeric state. Without precise control of temperature, pressure, and timing, manufacturers risk:
Inconsistent cure states leading to under-cured (weak) sticky parts or over-cured (brittle) products
Processing difficulties due to improper flow characteristics affecting mold filling
Batch-to-batch variability compromising product reliability and consistency
Material waste from improper cure parameters and trial runs
Non-compliance with industry standards and customer specifications
The HZ-7014 Flat Vulcanizing Press from Guangdong Lixian Instruments Co., Ltd. provides a controlled, efficient, and repeatable environment for sample preparation and process evaluation, enabling manufacturers to simulate production conditions on a laboratory scale -1-3.

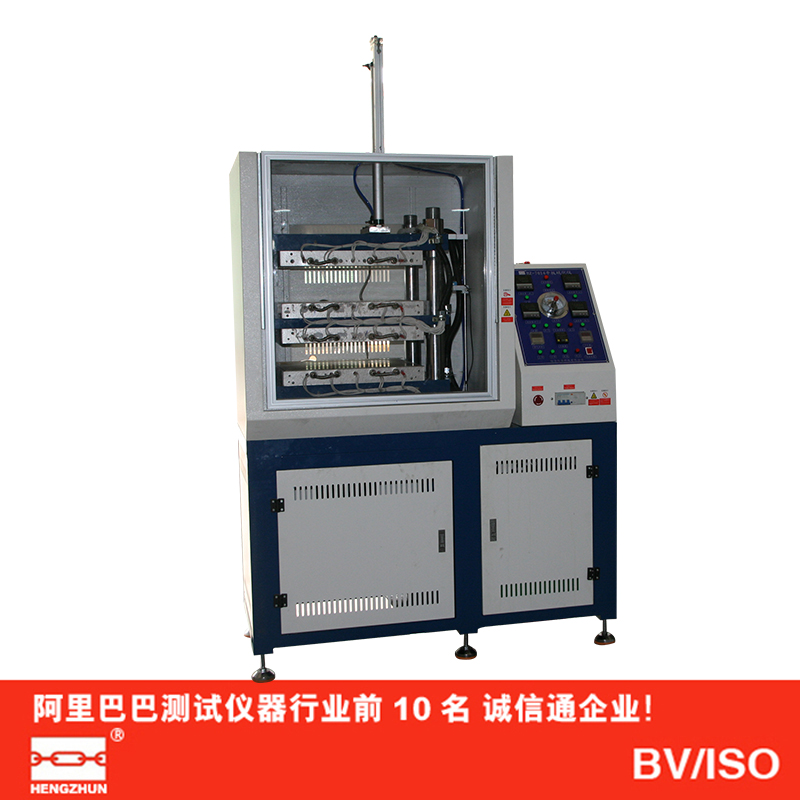

Key Features of the HZ-7014 Flat Vulcanizing Press
Versatile Material Application: The HZ-7014 is designed to handle a wide range of materials essential to the rubber and plastics industry -1-3:
Rubber Compounds: Natural rubber (NR), SBR, EPDM, silicone rubber, nitrile rubber, and more for products like seals, gaskets, O-rings, and automotive parts
Plastic Compounds: Thermosetting plastics, foam rubber, PVC, and various thermoplastic compounds
Silicone Products: Medical silicone parts, keypads, baby bottle nipples, and food-grade products
Composite Materials: Multi-layer products requiring precise temperature and pressure control
Precise Temperature Control System: Consistent material properties depend on precise thermal management. The HZ-7014 features a temperature range from room temperature to 300°C with accuracy of ±2°C, ensuring stable, repeatable processing conditions essential for reliable sample preparation and material evaluation -1-3.
Flexible Pressing Capacity: The system offers adjustable capacity from 5 to 50 tons (with options up to 80-100 tons), accommodating a wide range of material types and sample sizes. The hot plates are available in 500×500 mm size with single-layer or multi-layer configurations -1-4.

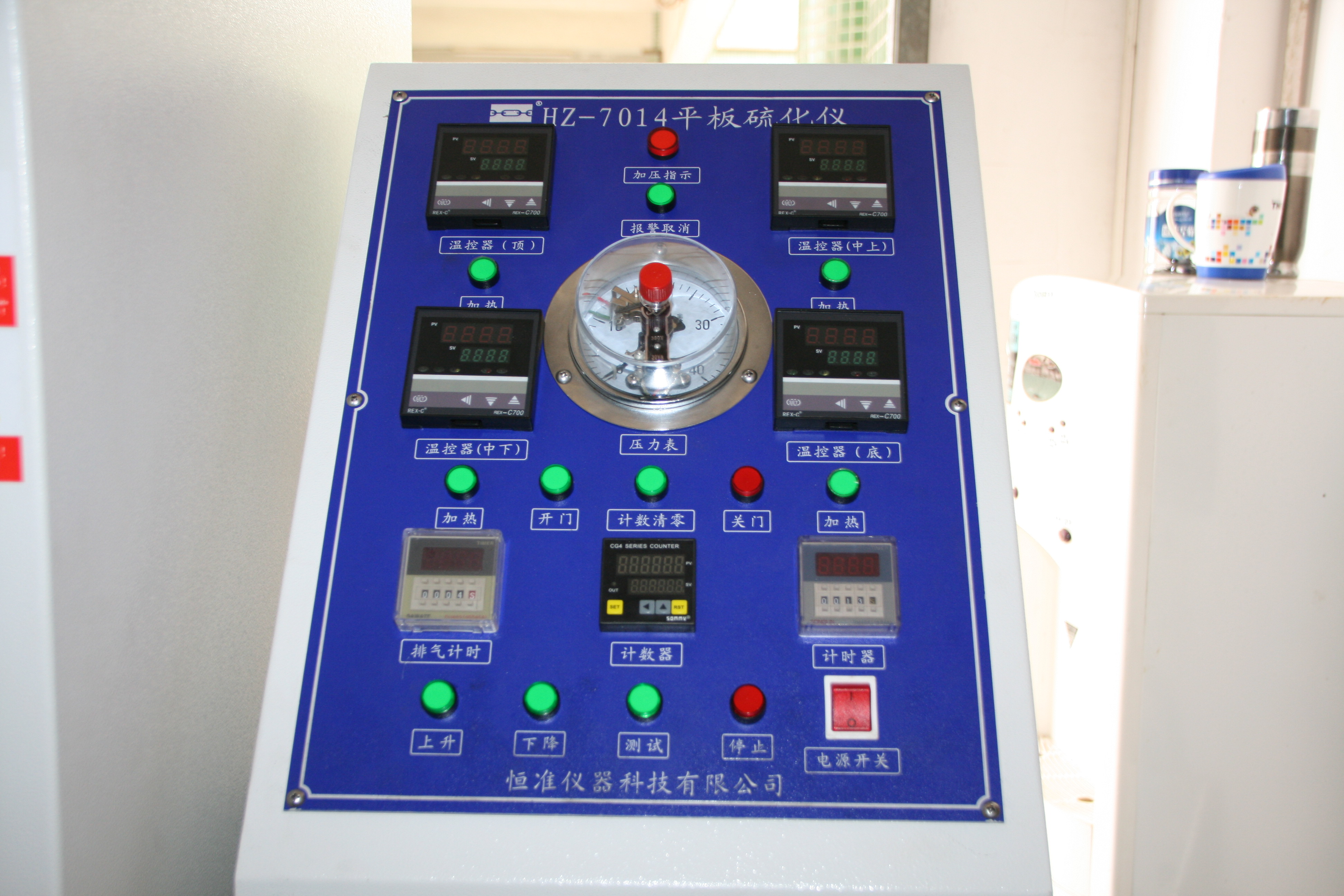

Advanced Control System: The HZ-7014 features multiple operation modes:
LED digital temperature controller with precise setpoint and display
Programmable timer ranging from 0.01 seconds to 999 hours
Automatic exhaust function (low pressure automatically exhaust 3-10 times per minute, adjustable)
Manual, semi-automatic, and automatic operation modes for flexible process control -1-3
Reliable Hydraulic System: Equipped with a high-performance hydraulic system featuring:
Automatic pressure compensation during the vulcanization process
Adjustable pressing speed and stroke control
Large cylinder stroke up to 300mm with smooth, stable operation
German imported hydraulic technology for reliable sealing and long service life -1-2
Safety-Enhanced Design: The HZ-7014 features a protective safety shield to ensure operator protection during operation. The system can automatically identify incorrect commands, preventing accidents caused by improper operation -1-3.
Robust Construction: Built for the demands of a busy laboratory or quality control environment, the HZ-7014 features a four-post rigid structure with high-durability components, ensuring long-term stable performance with minimal maintenance -2-4.
Technical Specifications at a Glance
| Parameter | Specification |
|---|---|
| Model | HZ-7014 Flat Vulcanizing Press |
| Capacity | 5-50 tons (adjustable, options up to 80-100T) -1-4 |
| Temperature Range | Room temperature to 300°C -1-3 |
| Temperature Accuracy | ±2°C -1-3 |
| Temperature Controller | LED digital display -1 |
| Heating Method | Electric heating with heating tubes -1 |
| Heating Time | RT to 160°C in approximately 15 minutes -1 |
| Timer Range | 0.01 sec – 999 min – 999 hours -1 |
| Hot Plate Size | 500 × 500 mm (high-hardness treated steel plate) -1 |
| Hot Plate Layers | Single-layer (multi-layer options available) -3 |
| Exhaust Function | Low pressure auto exhaust, 3-10 times/min (adjustable) -1-3 |
| Hydraulic System | Proportional hydraulic flow closed-loop control -1 |
| Cylinder Stroke | Max 300 mm -1 |
| Cylinder Speed | 11 mm/s -1 |
| Pressure Gauge | 0–200 kg/sq.cm -1 |
| Dimensions (W×D×H) | 1400 × 650 × 2300 mm -1 |
| Weight | Approx. 1600 kg -1 |
| Power Supply | 3∮, AC380V, 20A -1 |
How the HZ-7014 Enhances Rubber & Plastics Development
The HZ-7014 Flat Vulcanizing Press is an indispensable tool for manufacturers seeking to improve their materials and processes -1-3:
Sample Preparation: Prepare standardized test specimens for tensile, tear, hardness, and other mechanical property evaluations
Formulation Optimization: Experiment with new filler loadings, plasticizer types, or stabilizer packages to achieve target properties like tensile strength, elongation, or hardness
Process Simulation: Replicate the temperature, pressure, and time profile of production-scale vulcanization to ensure smooth scale-up from lab to factory floor
Raw Material Validation: Test incoming lots of polymers, carbon black, or process oils to ensure they meet specifications and will perform consistently in your compounds
Failure Analysis: When a product fails in the field, the HZ-7014 can be used to recreate and analyze the material compound to identify the root cause
Quality Control: Regular testing of production samples to ensure consistent cure characteristics across batches
Applications Across the Rubber & Plastics Industry
The HZ-7014 serves diverse applications throughout rubber and plastic manufacturing -1-3:
Rubber Seals & Gaskets: O-rings, automotive seals, industrial gaskets, and custom profiles
Silicone Products: Medical silicone parts, baby bottle nipples, kitchenware, and food-grade products
Keypads & Electronics: Mobile phone keypads, remote control buttons, computer keyboard components
Automotive Parts: Rubber mounts, bushings, vibration dampers, and sealing components
Industrial Products: Conveyor belts, transmission belts, rubber rollers, and matting
Consumer Products: Rubber soles, sporting goods, toys, and household items
A Trusted Partner in Material Testing
As a leading manufacturer of testing instruments and detection equipment, Guangdong Lixian Instruments Co., Ltd. combines decades of instrument R&D experience with deep industry knowledge. Founded in 2000 and headquartered in Dongguan, Guangdong province, the company operates a modern 6000-square-meter production facility and serves clients in over 70 countries with products certified to CE, ISO, ASTM, and other international standards -3.
Our professional R&D team, rigorous quality management systems, and advanced manufacturing capabilities ensure that every HZ-7014 undergoes strict quality inspection, performance testing, and validation before shipment, guaranteeing stable and reliable long-term operation in demanding laboratory or production environments -3.
Comprehensive Customer Support
Beyond high-quality testing equipment, Guangdong Lixian Instruments Co., Ltd. provides complete support to ensure your success:
12-month product warranty with lifetime service support
Pre-sales consultation: Expert guidance to select appropriate test methods and equipment parameters based on your specific rubber and plastic materials
Installation and training: On-site commissioning and operation training to ensure your team quickly masters equipment use
After-sales service: Professional maintenance team providing timely repairs, spare parts replacement, and technical support to minimize production disruption
Calibration services: Regular calibration to maintain accuracy and compliance
Mold with Confidence, Produce with Certainty
In the competitive rubber and plastics market, where material performance directly impacts product safety and customer satisfaction, only manufacturers who rigorously control their vulcanization process can ensure consistent quality and reliable performance. The HZ-7014 Flat Vulcanizing Press from Guangdong Lixian Instruments Co., Ltd. offers the robust construction, precise control, and versatile performance needed to ensure your materials are optimized, consistent, and ready for production.
Whether you are a small-scale compounder or a large-scale manufacturer serving automotive, industrial, medical, or consumer markets, our testing equipment delivers the accuracy and dependability required to protect your reputation and ensure product success.
Contact Guangdong Lixian Instruments Co., Ltd. today to learn more about how our flat vulcanizing press equipment can enhance your rubber and plastic material evaluation processes. Request a detailed technical specification, arrange a product demonstration, or consult with our application specialists to discuss your specific compounding and testing requirements.
Guangdong Lixian Instruments Co., Ltd. — Precision Formulations, Superior Materials.
