In the demanding world of electromagnetic wire manufacturing, reliability under extreme temperature fluctuations is not optional—it is essential. From motor windings and transformer coils to automotive harnesses and aerospace components, electromagnetic wires must endure rapid and repeated thermal cycling without compromising insulation integrity, conductivity, or mechanical strength. At Guangdong Lixian Instruments Co., Ltd. , we provide precision testing equipment engineered to meet these rigorous challenges. Our HZ-2012A Two-Zone Thermal Shock Test Chamber offers a powerful, reliable, and repeatable solution for evaluating the durability of electromagnetic wire materials under extreme hot-to-cold transitions -
Why Thermal Shock Testing is Critical for Electromagnetic Wires
The thermal shock test is specifically designed to study the heat tolerance of enameled wire film under mechanical stress -5. During operation, electromagnetic wires experience significant temperature variations that can induce material fatigue. In thermal shock testing, the extended film itself will shrink due to heat exposure, but the copper conductor bonded to the film prevents this shrinkage, creating internal stresses -5. The film strength of different types of enameled wires varies considerably, and the strength of various films decreases to different degrees as temperature rises -5.
Without rigorous validation, these thermal cycles can lead to:
Insulation cracking or delamination compromising dielectric strength -2
Conductor fatigue and premature failure under load -2
Loss of electrical performance under continuous thermal stress -2
Deformation or breakage during winding or installation -2
The HZ-2012A Thermal Shock Tester from Guangdong Lixian Instruments Co., Ltd. simulates these real-world conditions in a controlled laboratory environment, enabling manufacturers to assess material resilience and ensure compliance with international standards -3-4-5.
Key Features of the HZ-2012A Two-Zone Thermal Shock Test Chamber
The HZ-2012A integrates advanced dual-chamber design with servo-controlled transfer technology, delivering exceptional performance for electromagnetic wire testing -4:
Two-Zone Design for Rapid Thermal Cycling: The test chamber features independent high-temperature and low-temperature zones (upper high temperature, lower low temperature), with a movable sample basket that transfers specimens between zones -3-6-7. This "air-to-air" thermal shock method simulates sudden temperature changes that electromagnetic wires experience during real-world operation -4.
Rapid Temperature Transition: The sample basket transfers between hot and cold zones in as little as 10 seconds, with temperature recovery achieved within 3–5 minutes (stabilization time ≥30 minutes) -4-6-8. This rapid cycling ensures efficient testing while accurately simulating real-world thermal stresses.
Wide Temperature Range: The system offers:
Low-temperature test zone: -10°C to -40°C -6-8
Customizable options extend to -70°C~180°C for special requirements -4Precise Control & Accuracy: Temperature control accuracy of ±2°C and resolution of 0.01°C, ensuring consistent, repeatable test conditions for reliable material evaluation -4-6-8.
Spacious Test Capacity: The high/low-temperature test area measures 50cm (W) × 50cm (H) × 50cm (D) , with a sample basket size of 30cm (W) × 40cm (H) × 30cm (D) , accommodating specimens up to 10kg -4-6-8.

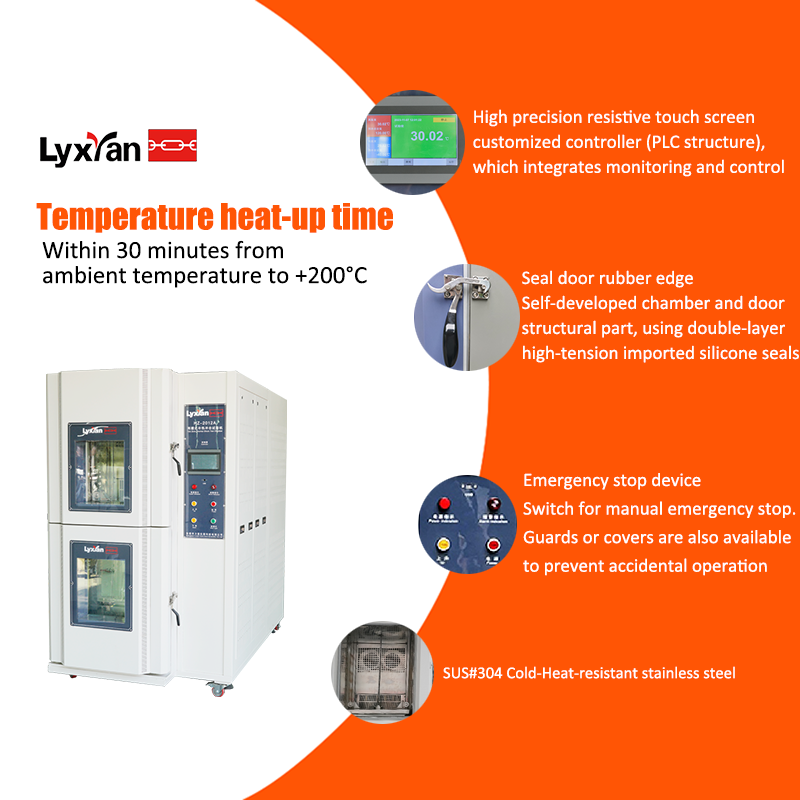

Rapid Temperature Change Rates: High-temperature zone heats from ambient to +200°C in approximately 35 minutes, while low-temperature zone cools from ambient to -40°C in approximately 50 minutes (at room temperature of +5 to +30°C) -6-8.
Robust Construction: Industrial-grade design with SUS#304 stainless steel inner chamber, high-density glass wool and PU foam insulation, ensuring thermal efficiency and long-term durability -4-6-8.
Comprehensive Safety Features: Multi-layer safety protection including over-temperature alarm, emergency stop, and anti-condensation heating system -4.
Standards Compliance for Global Acceptance
The HZ-2012A Two-Zone Thermal Shock Test Chamber is designed to meet key international and national standards for electromagnetic wire and general material testing -3-8:
IEC 60068-2-14 – Environmental testing – Part 2: Tests – Test N: Change of temperature -4
ISO 16750-4 – Road vehicles – Environmental conditions and testing for electrical and electronic equipment -4
SAE J1211 – Recommended Environmental Practices for Electronic Equipment Design -4
Driving Quality and Innovation in Electromagnetic Wire Production
The heat resistance of enameled wire is an important indicator, especially for motors and components with temperature rise requirements, as it directly affects the design and use of electrical equipment -5. If enameled wire with higher heat resistance and supporting materials can be used, greater power can be obtained without changing the structure, or the size and weight can be reduced while keeping the power unchanged, reducing the consumption of non-ferrous metals and other materials -5.
Whether you are developing advanced insulation materials, validating new wire constructions, or conducting routine quality control, the HZ-2012A Thermal Shock Tester provides critical insights to:
Evaluate thermal endurance and resistance to cracking under mechanical stress -5
Assess film strength degradation at elevated temperatures -5
Validate performance against customer and regulatory specifications -2
Reduce the risk of field failures and warranty claims -2
Support R&D initiatives for next-generation wire products with enhanced thermal resistance
A Trusted Partner in Precision Testing
As a leading manufacturer of testing instruments and detection equipment, Guangdong Lixian Instruments Co., Ltd. combines decades of instrument R&D experience with deep industry knowledge. Founded in 2000 and located in Dongguan, Guangdong province, the company operates a modern 6000-square-meter production facility and serves clients in over 70 countries with products certified to CE, ISO, ASTM, and other international standards -1.
Our HZ-2012A Two-Zone Thermal Shock Test Chamber reflects our commitment to accuracy, reliability, and user-centric design—helping electromagnetic wire producers achieve the highest standards of quality and durability -2-5.
Comprehensive Customer Support
Beyond high-quality testing equipment, Guangdong Lixian Instruments Co., Ltd. provides complete support to ensure your success:
12-month product warranty with lifetime service support -1
Professional installation, calibration, and technical training worldwide -4
Customized test protocols aligned with industry-specific standards -4
Responsive after-sales support to ensure long-term equipment stability -1
Video training and documentation for easy operator training -1
Test with Confidence, Perform with Certainty
In applications where failure is not an option, equip your laboratory with testing equipment that delivers precise, repeatable results. The HZ-2012A Thermal Shock Tester from Guangdong Lixian Instruments Co., Ltd. offers the technological sophistication and reliability needed to ensure your electromagnetic wires withstand the harshest thermal environments—from motor windings to aerospace applications.
Contact Guangdong Lixian Instruments Co., Ltd. today to learn more about how our thermal shock testing equipment can enhance your electromagnetic wire material evaluation processes. Request a detailed technical specification, arrange a product demonstration, or consult with our application specialists to discuss your specific testing requirements.
Guangdong Lixian Instruments Co., Ltd. — Precision Engineered for Conducting Excellence.
