Equipment Description

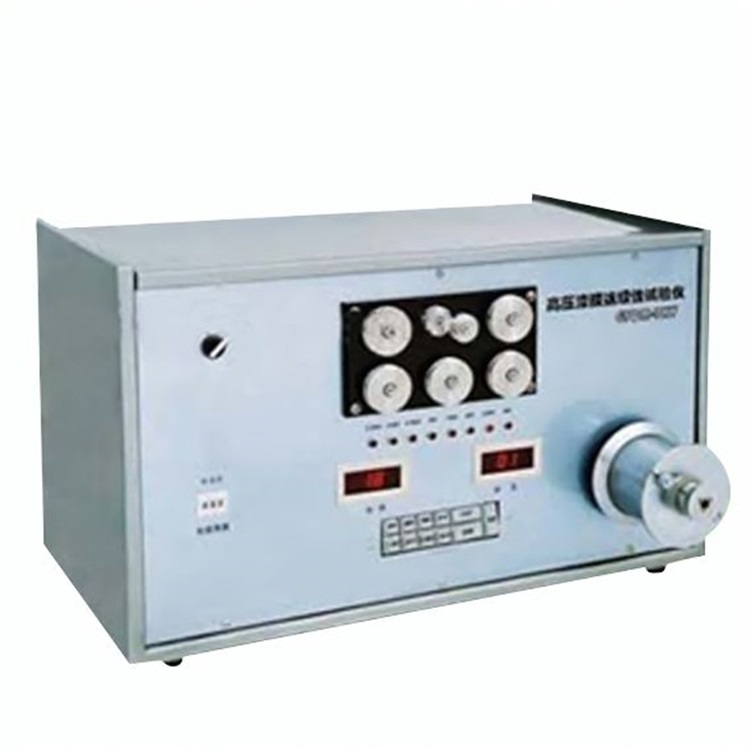

Enameled Wire Break Down Voltage Tester , application of GB / T 4074.5-1999 new standards, with 16.5m/min and 18m/min line speed test, keyboard input selection 350v, 500v, 750v, 1000v, 1500v, 2000v, 2500v, 3000v 8 files test voltage, 0 ~ 99m length of arbitrary choice test, automatically testing process, led display test results.
To meet the standard:
Full compliance with IEC60851-5: 2004 and GB/T4074.5-2008 standard relevant regulations.
Applicable industry:
It is the ideal test instrument for the maget wire manufactruers,research,prodcut supervision,inspection industries and sectors.
Technical parameter:
Model | HZ-4108 |
Test voltage error | <5% |
Steady-state short-circuit current | 25±5a |
Frequency | 500±10 times /min |
50mΩ defect resistance caused voltage drop | <75% |
Response time of defects counting circuit | 5±1μs |
Working environment | Temperature: 0 - 40 centigrace |
External power supply | ac220v±5% 50hz |
Power consumption | <250w |
Outside dimension | 638*480*405mm (L*W*H) |
Weight | 40kg |
