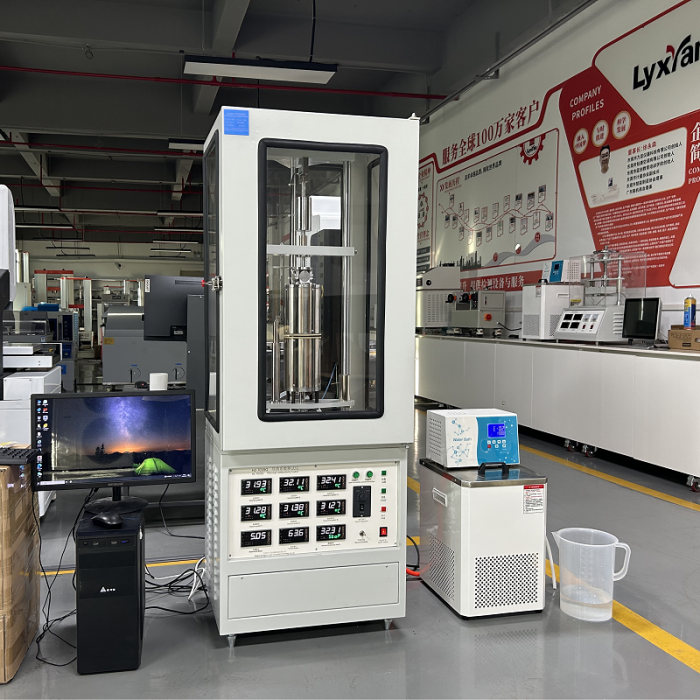

HZ-7039 Solid Electric Insulation Material Silicone Rubber Thermal Conductivity Testing Machine Equipment
Thermal Conductivity Tester mainly tests the thermal resistance of thin thermal conductor, solid electrical insulation material, thermal conductive silicone grease, resin, rubber, beryllium oxide porcelain, alumina porcelain and other materials, as well as the contact thermal resistance at the solid interface and the thermal conductivity of the material.The detection material is solid sheet, and the added frame can detect the powder state material and paste material.
  • Tel:+86 13711888650
  • Product Details

Product summary:

This instrument mainly tests the thermal resistance of thin thermal conductor, solid electrical insulation material, thermal conductive silicone grease, resin, rubber, beryllium oxide porcelain, alumina porcelain and other materials, as well as the contact thermal resistance at the solid interface and the thermal conductivity of the material.The detection material is solid sheet, and the added frame can detect the powder state material and paste material.

Instrument reference standard: MIL-I-49456A (insulating sheet, thermal conductive resin, thermal conductive glass fiber enhancement); GB 5598-85 (determination method of thermal conductivity of beryllium oxide porcelain); ASTM D5470-12 (test standard for thin thermal conductivity of solid electric insulation material), etc.


Instrument features: with automatic pressure, automatic thickness measuring device, and connected to the computer to realize automatic control.The instrument uses a 6-point temperature gradient detection to improve the test accuracy.Can detect the thermal resistance curve under different pressures, use the optimized mathematical model, can measure the material thermal conductivity and thermal resistance and contact thermal resistance at the interface and several parameters.

Widely used in institutions of higher learning, scientific research units, quality inspection departments and production plants of material thermal conductivity analysis and testing.


Machine Structure




 Instrument features: with automatic pressure, automatic thickness measuring device, and connected to the computer to realize automatic control.The instrument uses a 6-point temperature gradient detection to improve the test accuracy. Can detect the thermal resistance curve under different pressures, use the optimized mathematical model, can measure the material thermal conductivity and thermal resistance and contact thermal resistance at the interface and several parameters. Widely used in institutions of higher learning, scientific research units, quality inspection departments and production plants of material thermal conductivity analysis and testing.

Specification
Model Number
HZ-7039O
Standard
ASTM D5470-12
Sample size
30mm
Thickness
0.02-20mm
Thermal polar control temperature range
room temperature-99.99℃
Cold polar temperature control range
0-99.0℃
Test range of thermal conductivity
0.05~45 W / m * k
Thermal resistance test range
0.05~0.000005m2 * K / W
Range of pressure measurement
0~1000N
Displacement measurement range
0~30.00mm

Test accuracy

better than 3%
