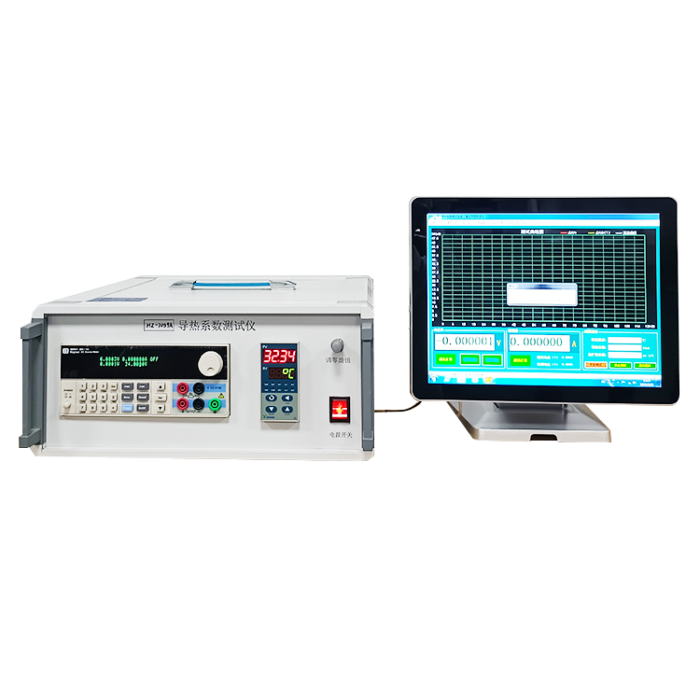

Thermal conductivity testing machine
Equipment OverviewThe method of measuring thermal conductivity can be roughly divided into two categories: steady-state method and dynamic method.The tester uses steady-state method to measure the thermal conductivity of different materials. Its design method is clear, simple and typical and p
  • Tel:+86 13711888650
  • Product Details

Equipment Overview



The method of measuring thermal conductivity can be roughly divided into two categories: steady-state method and dynamic method.The tester uses steady-state method to measure the thermal conductivity of different materials. Its design method is clear, simple and typical and practical.Measuring the thermal conductivity of matter is an important part of thermal experiments. The tester consists of heater, digital display temperature gauge, digital display timer, etc. (using integrated design).



Technical Parameters

Model

HZ-7039A

Power supply

AC 220V; 50HZ

Heat source

heat the copper block with 36V safety voltage

Test materials

silicone rubber, rubber board, aluminum, air, etc., adding a frame can detect powder, granular, rubber materials.

Measured temperature range

room temperature ~100℃, precision ± 1℃;

Timing part

range 0~999.9s; resolution 0.1s

Measurement accuracy

10%

Sample size

130 (1-100) mm

Test range

0.1~300w / m k
