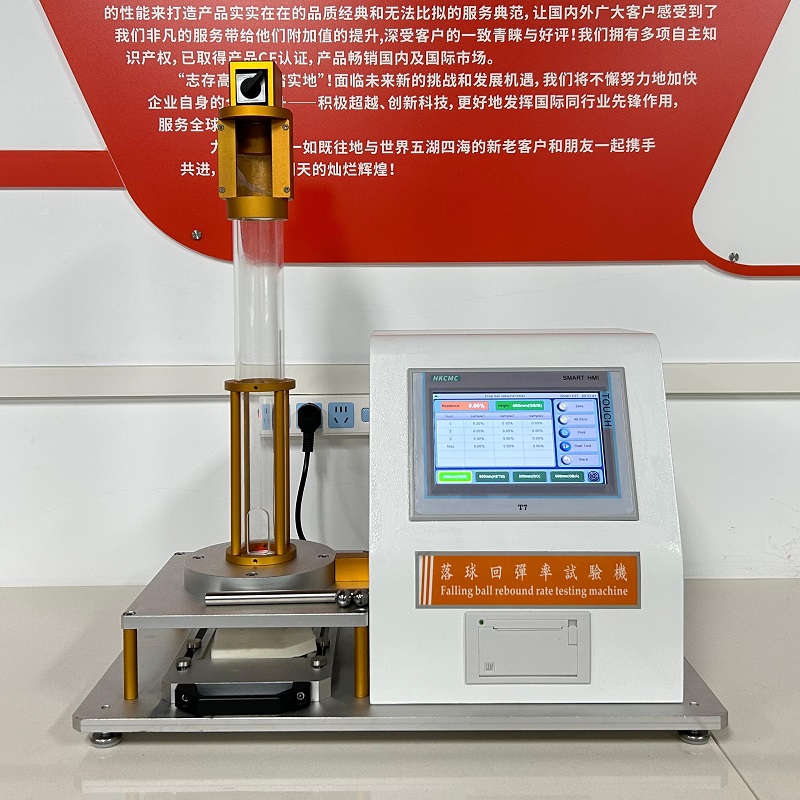

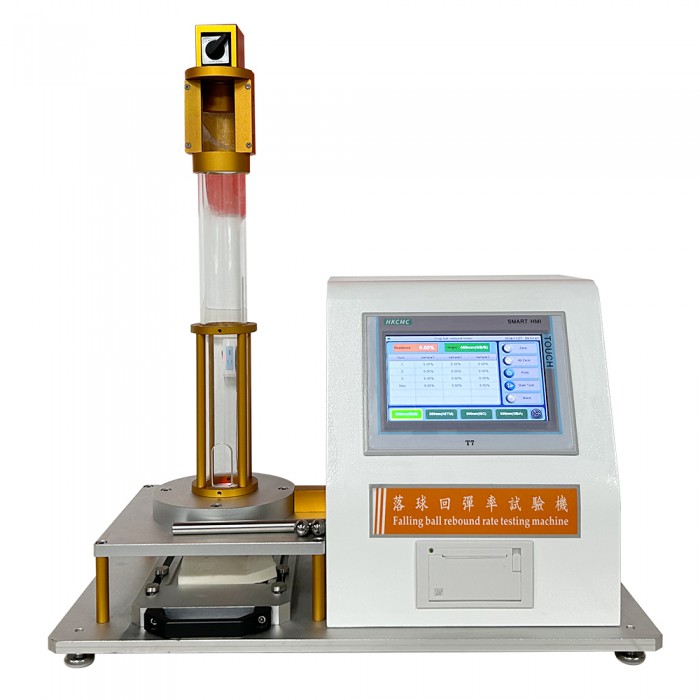

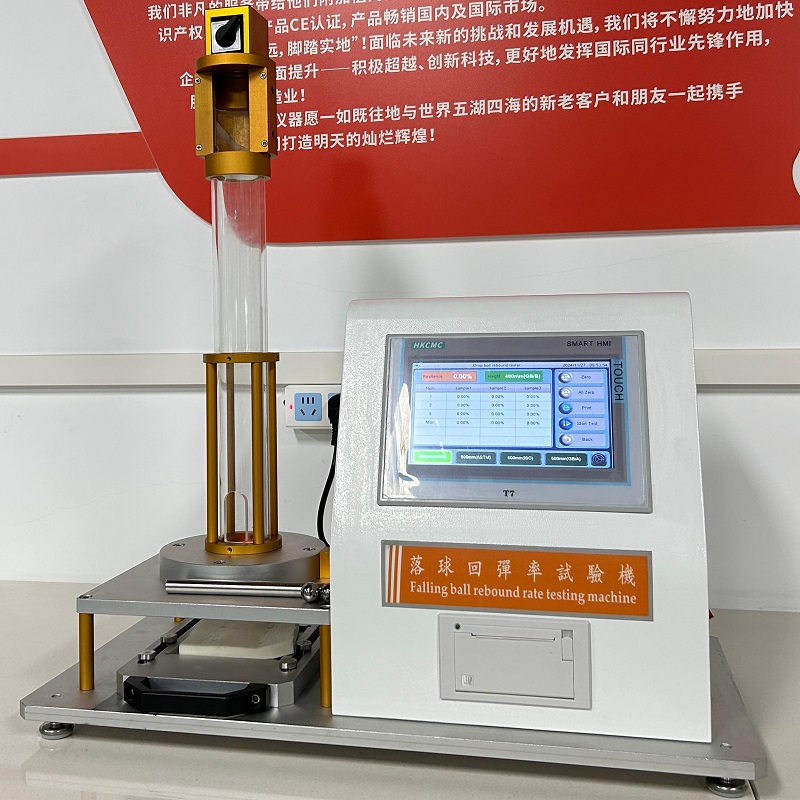

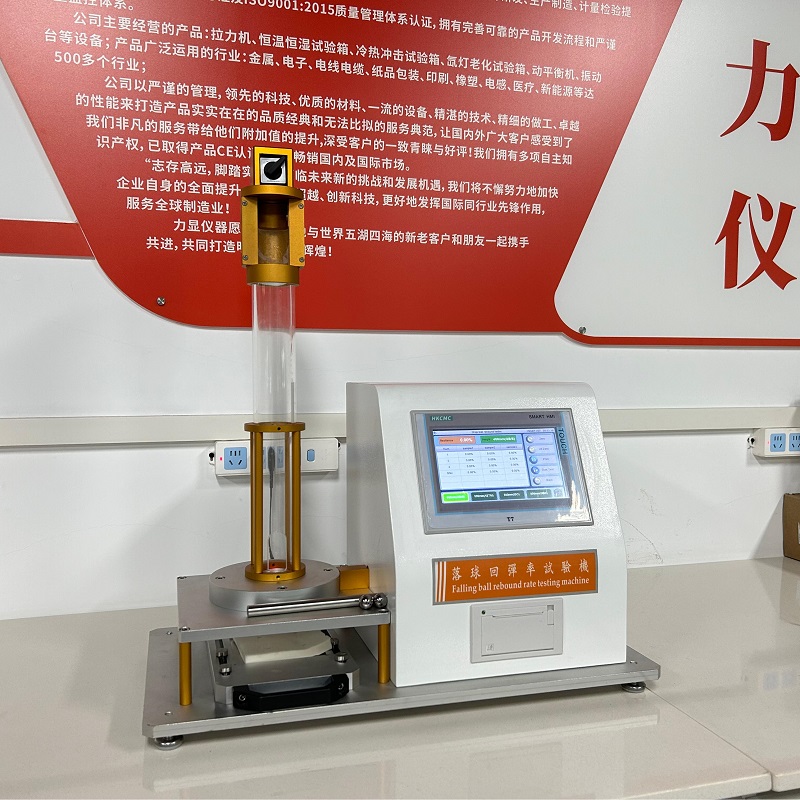

ISO 8307 Drop Ball Foam Rebound Resilience Testing Machine Equipment
Product Description:
ISO8307 Falling ball rebound Resilience Tester equipment is applicable to the determination of flexible polyurethane foam rebound performance off the ball. The instrument by the quality of a given ball diameter and height of free fall in the provisions of foam samples, the calculation of the maximum ball height and ball rebound height ratio of the Percentage drop, that resilience to rebound said foam rebound performance.
This machine uses microprocessor control,LCD Chinese display, and can print the test data. This machine has the use of
safe,reliable, measurement accuracy.Double-quick slicing machine for cutting Rubber Research Institute of plasticity of the specimen, from 16 ring knives and two 100 single-edged knife cutting round 10mm diameter, 16mm thick standard sample, without replacement of tools, easy operation, appearance and internal structure have been re-designed to make the performance more reliable, more beautiful shape for the domestic new improved plasticity sampler.
A set of electro-optical distance sensor Control box set (LCD display)
Specification
| Model Number | HZ-1730 |
| Product name | Falling ball rebound Resilience Tester equipment |
| standard | ISO8307 |
| Steel ball falling from | 500±0.5%mm(American standard) |
| Ball diameter | 16±0.05 mm |
| Precision ball drop resilience | <1.5% |
| Sample size | 100 mm(L) *100 mm(W)* 50mm(H) |
| display | LCD |
| test data | can be printed |
| the average rebound debugging | Automatic calculation |
 |  |
 |  |
