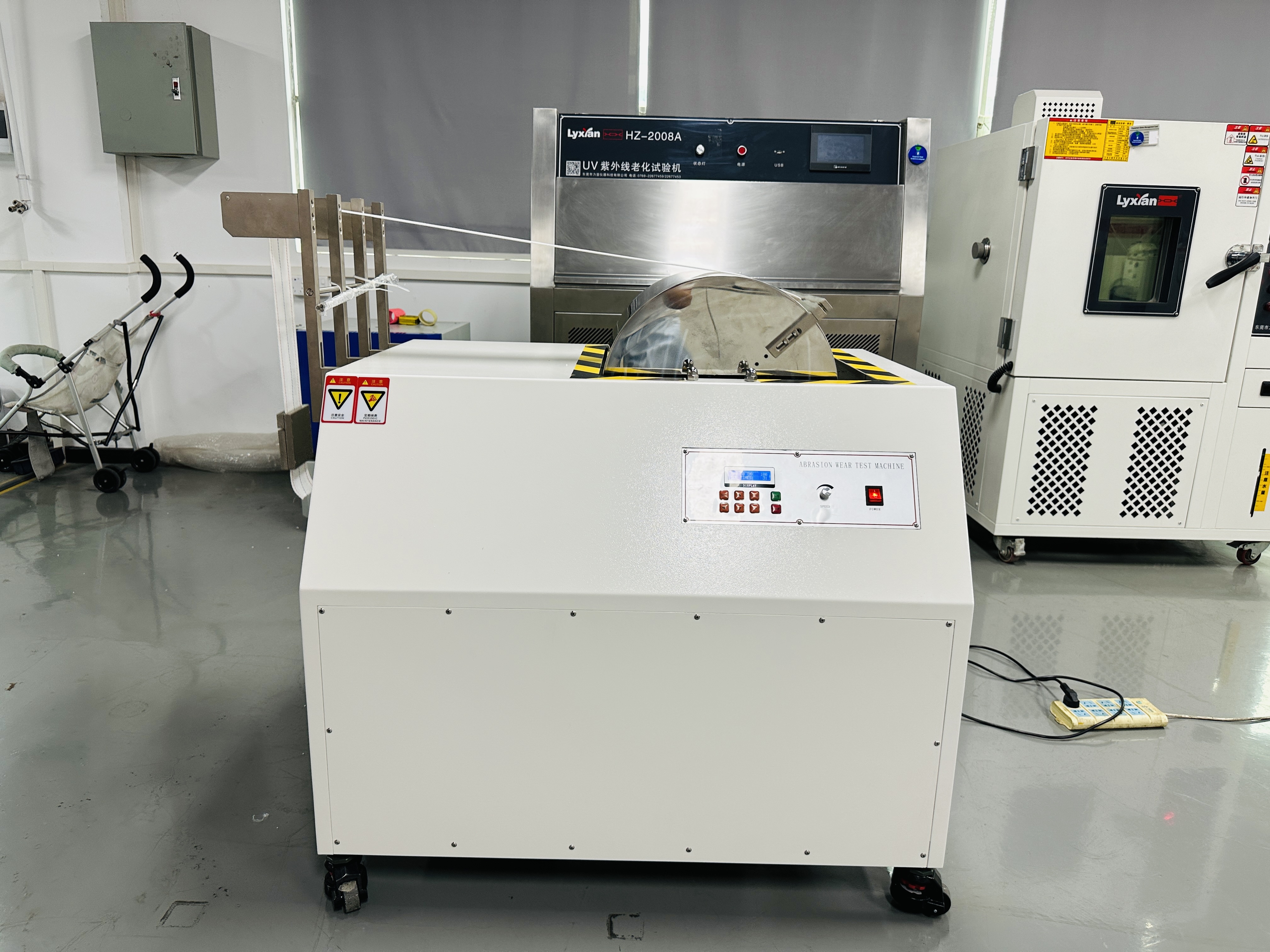

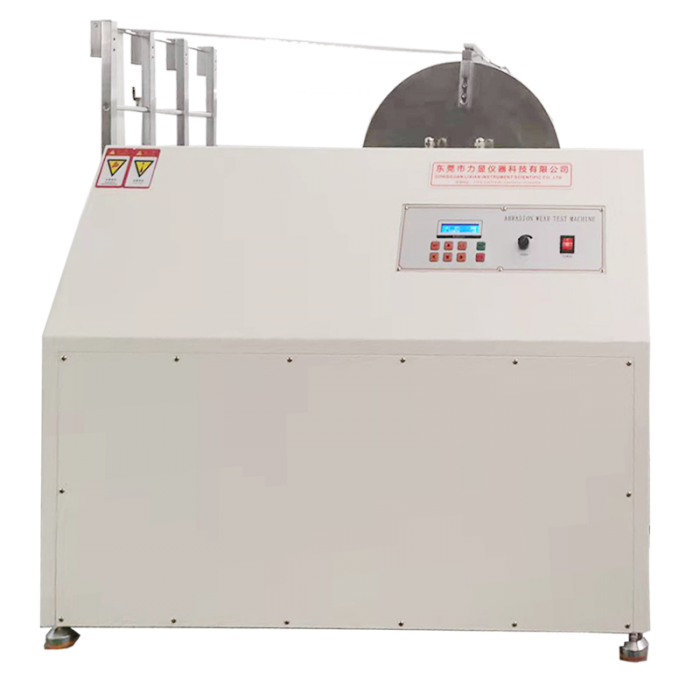

Model HZ-3017A Ribbon-Woven Wear-Resistant Test Machine

Equipment overview

HZ-3017A ribbon wear-resistant test machine is suitable for the test of wear resistance of various belts and automobile safety belts. The test principle makes the belt rub on the two edges on the hexagonal bars for a certain number of times, observe the wear resistance and then determine the product quality. Product use: This machine is professionally designed according to the requirements of GB14166-2013 "Seatbelt and Constrained System for Adult Passengers of Motor Vehicles", and conducts wear-resistant test for automobile belt.

Product Function：

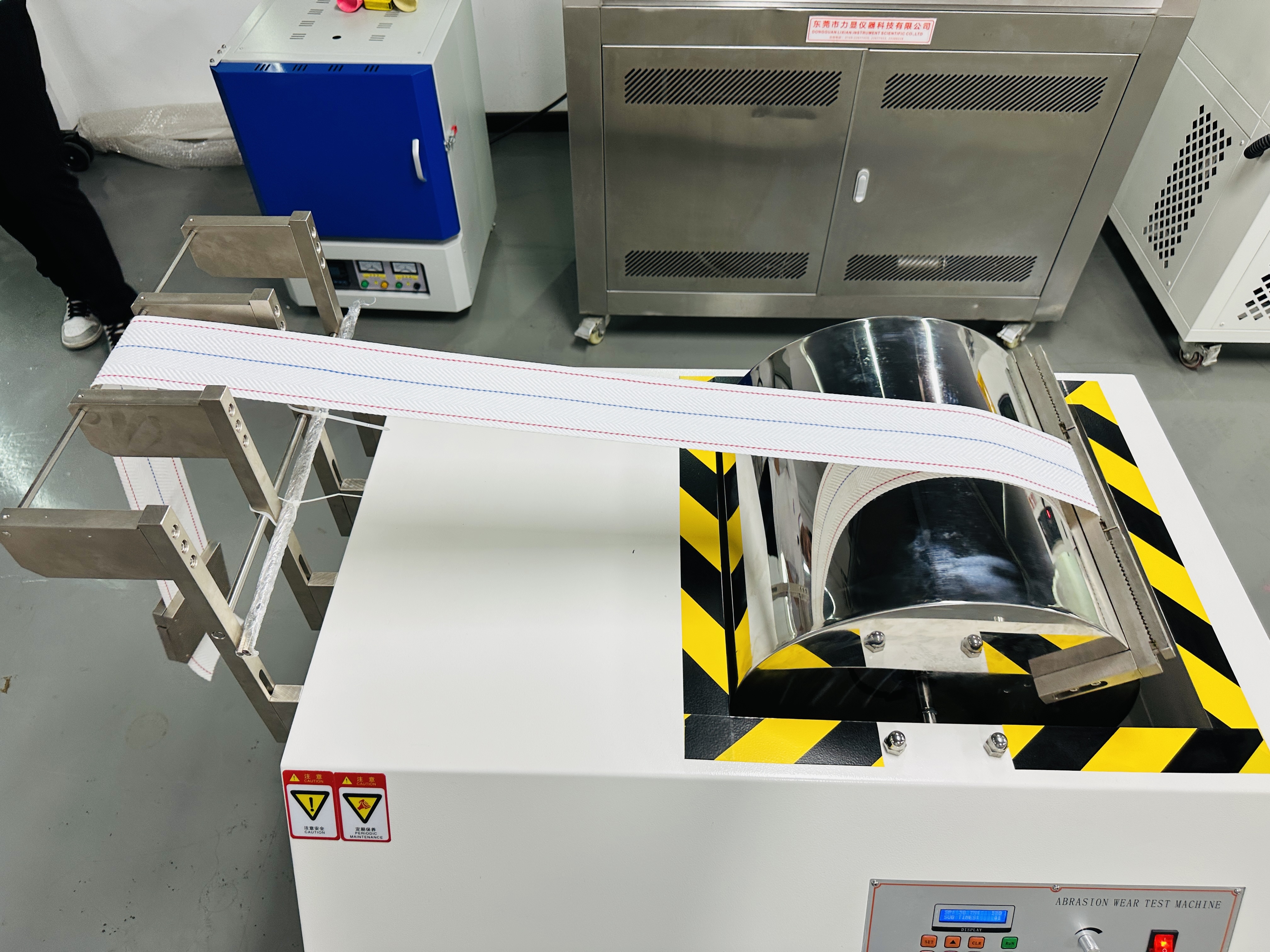

This machine system rubbed the ribbon on the two corners of the hexagonal bar to determine the wear resistance of the ribbon.

Technical Specification

Maxload： 2.3±0.05 kg （or customize）

The hexagonal stick： 6.35±0.03 mm,

Radius： 0.5±0.1 mm

Test speed： 30±1 times/min

Test stroke： 300±30 mm

Counter：999999 x1 set

Test roller： ø400 mm

Grinding Angle ：85±2°

Control mode: the DC motor control system

Test sample： Three sets of trials can be tested simultaneously

Tachomete:1 set

Size: about1100*750*1100mm

Weight: about 160kg
