Main functions:

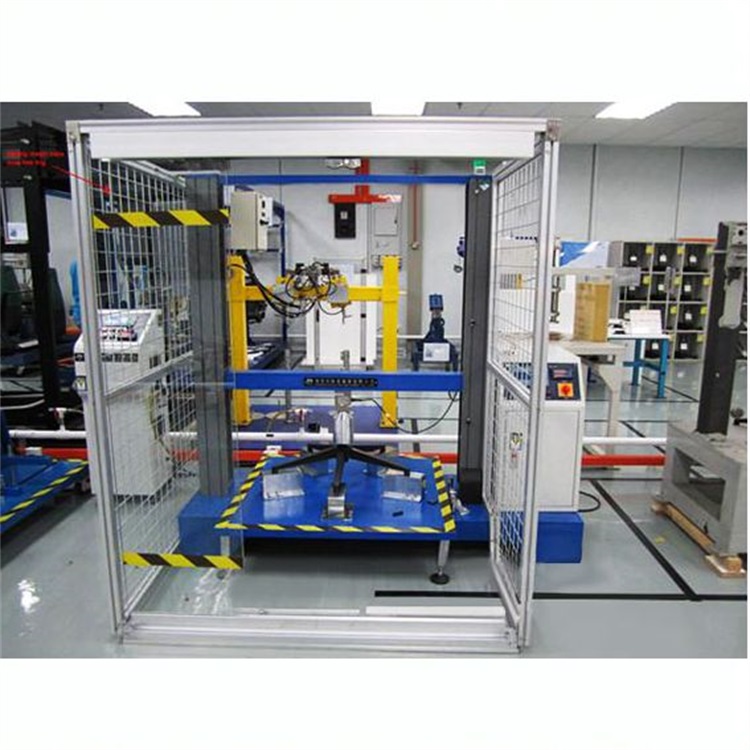

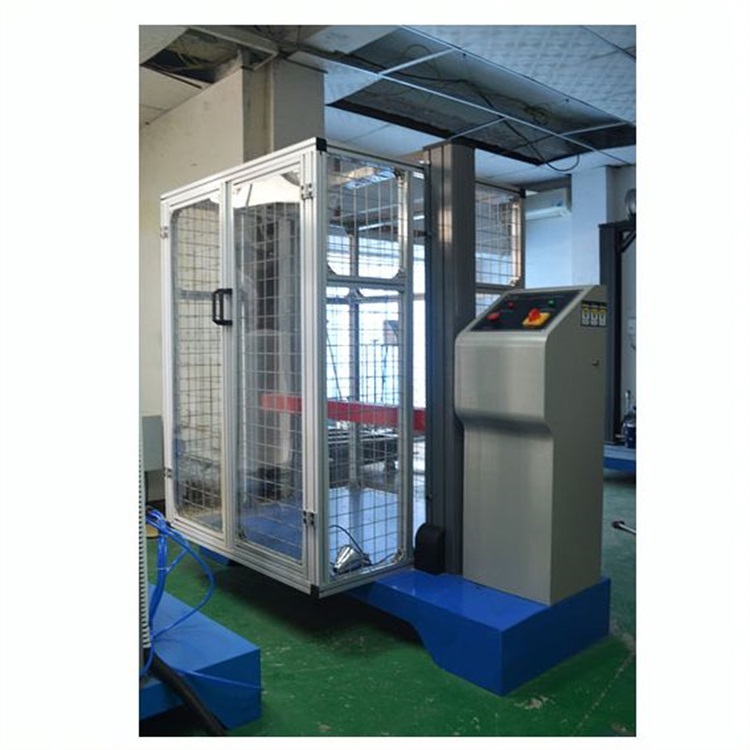

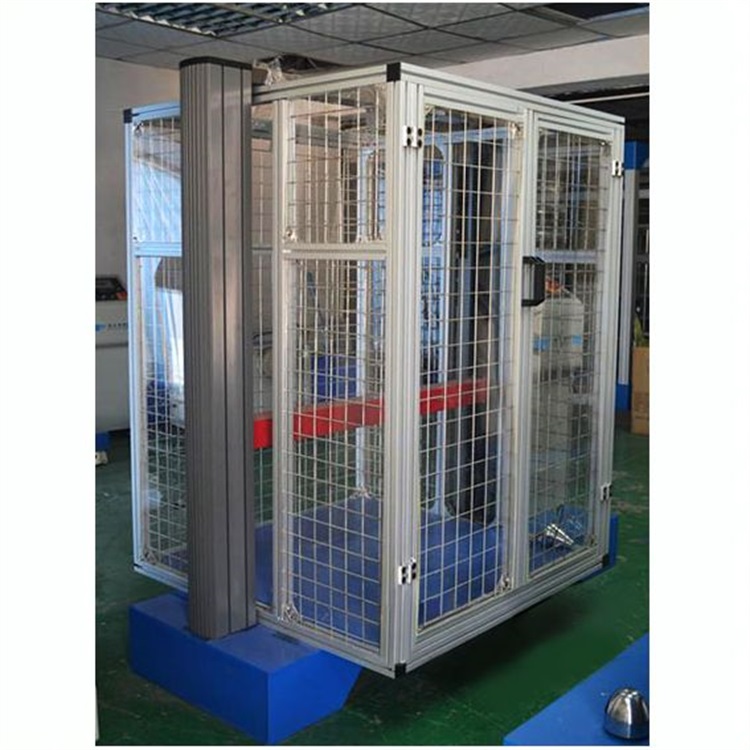

Office chairs chassis hypsokinesis durability testing machine is used for office chair Ipomoea vertical compressive stress test, the machine can also be used in fatigue testing, within the set force value,during test cycle, repeated loading pressure as fatigue tests. Pressure, holding pressure time and cycle test frequency can be adjusted.

Features:

1,Using the windows work platform,all setting parameters are processed in the form of dialog,with simple operation;using a single screen operation, no need to switch the screen;

2,The software interface with simplified Chinese,traditional Chinese and English in three easy language switching;

3,Self-test report planning mode is available;Can choose translation time and displacement, displacement and force more and more curves of data at the same time;

4,With a variety of units of measure,metric can be switched;

5,With automatic return function, with automatic correction function,with automatic or manual access point test function;with automatic magnification function, to achieve the most appropriate size of the graphic;

6,The test set their own rate according to customer demand;

7,With a custom function test methods, operational analysis with experimental data;

8,Automatic generation of test reports and A4 paper to print out or save the graph attached word document;

9,Design Standard:GB/T16491

10,Test Standard:ASTM D903，F2258，GB/T 2790/2791/2792, CNS-11888，JIS K6854，

GB/T 6329，BS EN 14410-2003，YY/T 0729，GOST 21751，BIFMA  X5.1-2011  7，QB.T2280-2007

Technical parameters:

  1,Capacity choice:2000kg(import sensor)

  2,Unit switch:gf,kgf,N，LBf,W,kN,T

  3,Load resolution:1/250000

  4,Load accuracy within± 0.5%

  5,The maximum test specimen width:1000m

  6,Test speed:(0.01-100)mm/min(computer input speed)

  7,The drive configuration:Imported servo motor

  8,The displacement analytical precision:0.001mm

  9,Weight:452kg

  10,Power:1∮，220V 10A
