- Product Details
Product Description
Equipment Description:
Bicycle comprehensive performance tester, the sliding distance by bicycle test to determine the fine bicycle brake performance testing of the machine can also be dynamic performance automatic transmission, tire wear , Power gear, such as integrated test. Bike testing is essential equipment.
Corresponding standard:
DIN79100 standard
Applicable Industry:
The bicycle manufacturers and scientific research and product quality supervision, inspection and other industries and sectors the ideal testing instrument.
Technical parameter:
Model | HZ-1414 |
Max. load | 80KG,Use weight superposition type |
Capability motor | AC220V 3HP |
Speed | 0-25KM/h,adjustable |
Construction | Adopts wheel rotation before structure can adjust the size according to bike |
Dimension | 270cm×100cm×200cm |

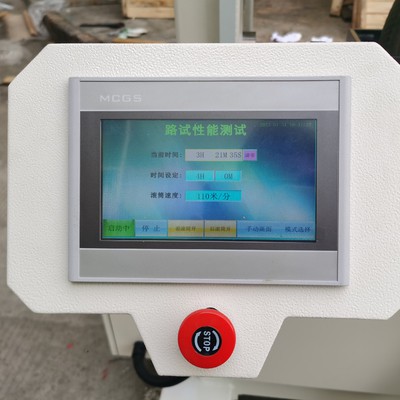

Control mode | Touch screen P.L.C control |
Acceleration time | 24KW/3 min |
Bearing load | MAX100 lb |
Vehicle type | City car, mountaineering car,pram,Tandem bicycle |
weight | About 400KG |
note | If have special requirements, we can design according to customer requirements |

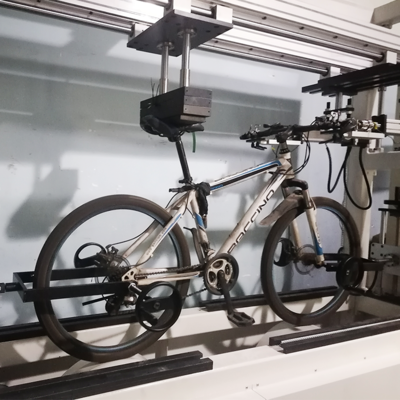

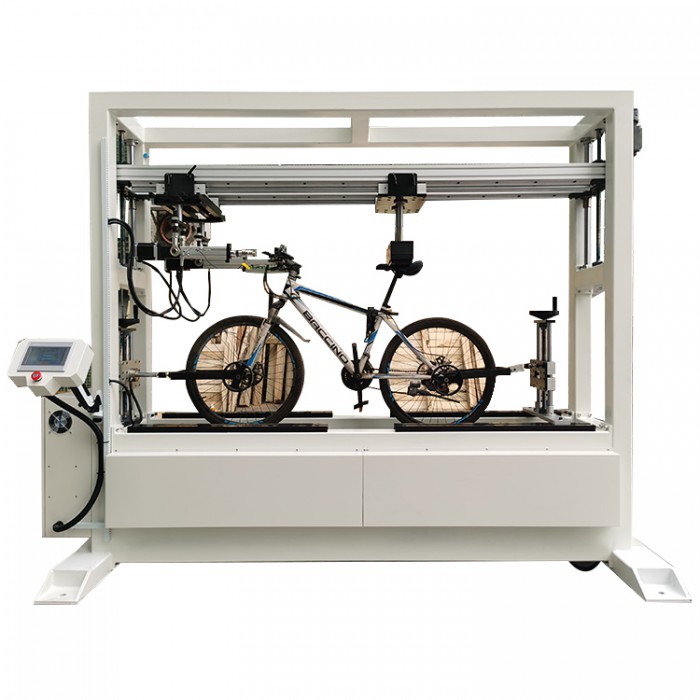

Detailed Images
