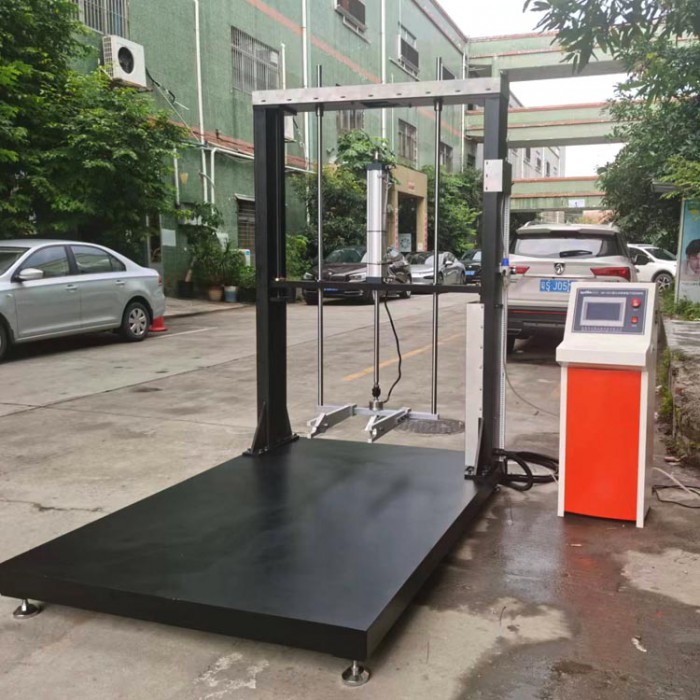

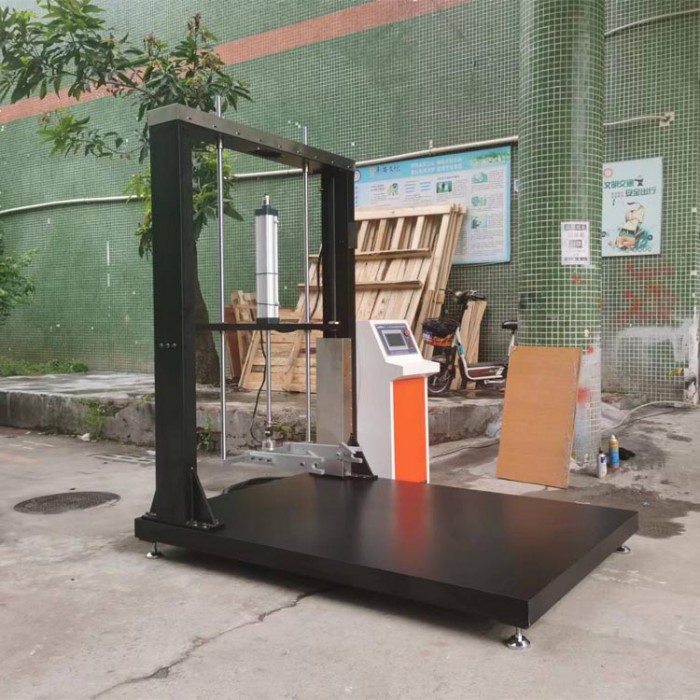

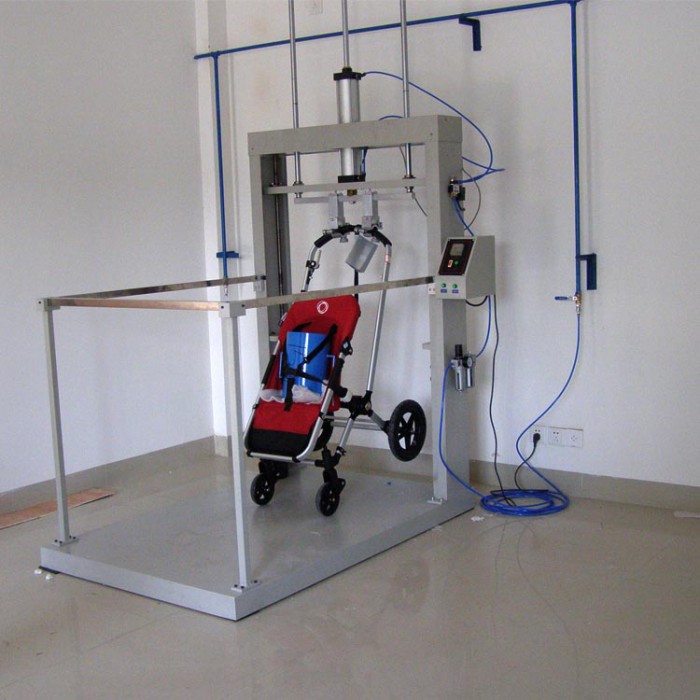

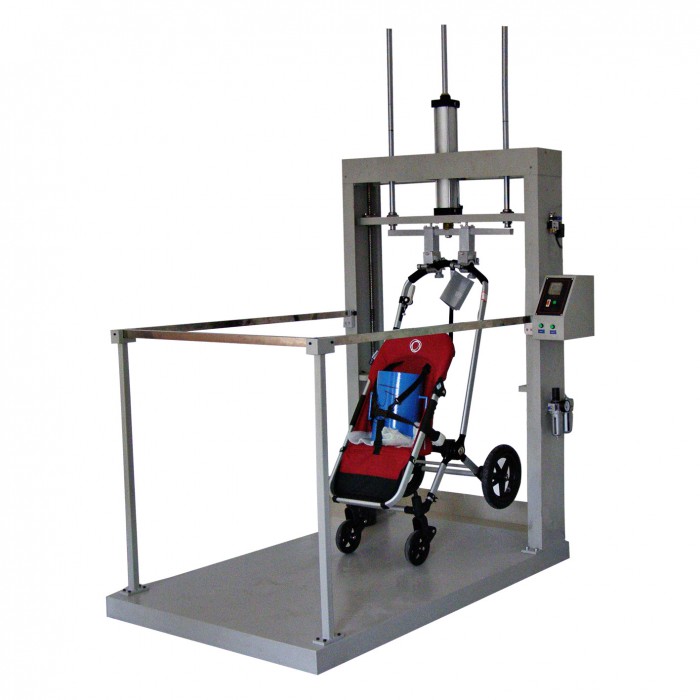

HZ-1202A Pram Dynamic Durability Testing Machine (Single Station)
Equipment summary:The machine based on hand-pushed pram standard of CNS dynamic durability test. Testing method is placed the pram in the machine and the fixed on the test stage, adjusting the speed of belt to 1.4 ± 0.1m/sec, continued to test 64 hours, View the pram is damaged or not. it can autom
  • Tel:+86 13711888650
  • Product Details

Equipment summary:

The machine based on hand-pushed pram standard of CNS dynamic durability test. Testing method is placed the pram in the machine and the fixed on the test stage, adjusting the speed of belt to 1.4 ± 0.1m/sec, continued to test 64 hours, View the pram is damaged or not. it can automatically stop operating upon the setting number of time arrive. The machine is a duplex test machine which can improve work efficiency, so as to enhance enterprise-wide benefits.



Corresponding standard

The machine is made based on hand-pushed pram standard of CNS dynamic durability test and hand-pushed pram ASTM dynamic durability test.



Applicable Industry:

Ideal testing instrument for pram manufacturers, research and product quality supervision and inspection industries and sectors.



Technical parameters:

Model

HZ-1202A

Drive mode

Canvas rubber convey belt as drive of power, coupled with a special steel roller convey belt reinforcement for secondary action

Conveyor speed

1.4±0.1m/sec84m/min5Km/H

Pram handle fixed

Method of production based on the method of CNS rubber ring beam

adjust the distance of handle link with the pram

About 300mm

machine Lever of left and right

About 200mm, adjustable

Times of impact

0999,999 times

Aluminum impact block

2 setsproduction based on your company's standard

The shape of impact

Trapezoidal, semi-curved or designated

volume

3300×1300×1900mm (L * W * H)

Power

220V 50Hz

Other features

Automatically determine the specimen is damaged, automatic shutdown
