- Product Details

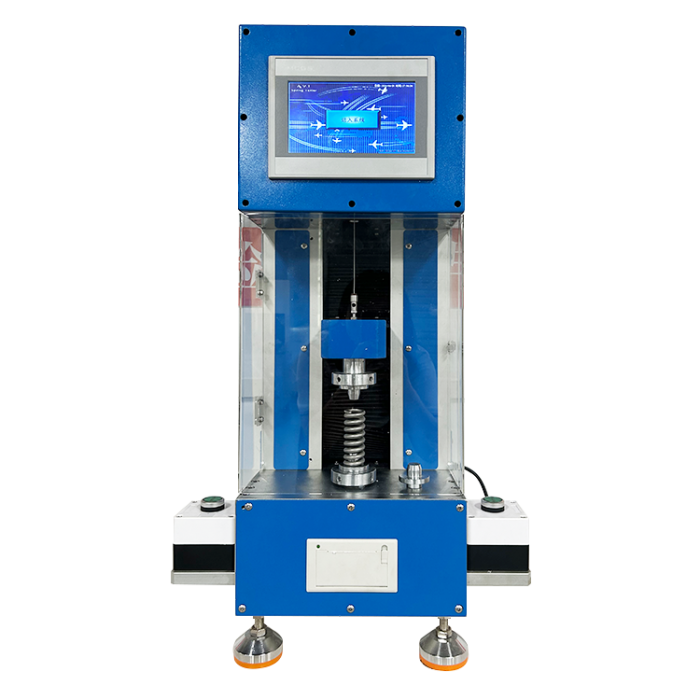

HZ-1003F Single Station Spring Pressure Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control. Rubber pad resilience Universal Testing Machine is easy to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line. Spring Pressure Testing Machine is mainly applied to test the Spring Pressure which the load is less than 2KN.
Specification
| Model Number | ZME-1003F |
| Max Load | 2 KN |
| Computer system | RealTest software control, Chinese and English |
| Measuring accuracy | 0.5% (5% -100% of full scale) |
| Tester resolution | 1/50000 |
| Load sensor | Extended configuration:an add more sensors |
| Compression plate size | 150*150mm |
| Effective tensile space | Approx. 500mm |
| Data sampling frequency | 200times/sec |
| Safety device | overload, emergency stop |
| Power | 750W; AC 220V single-phase |
More machine types
 |  |  |  |  |  |
| HZ-1007A | HZ-1007C | HZ-1007E | HZ-1003E | HZ-1005B | HZ-1005A |
| Max Force:200kg | Max Force:200kg | Max Force:100kg | Max Force:500kg | Max Force:500kg | Max Force:500kg |
 |  |  |  |  |  |
| HZ-1003A | HZ-1004A | HZ-1009A | HZ-1010A | HZ-1009C | HZ-1009B |
| Max Force:3T | Max Force:500kg | Max Force:10T | Max Force:3T | Max Force:10T | Max Force:30T |
