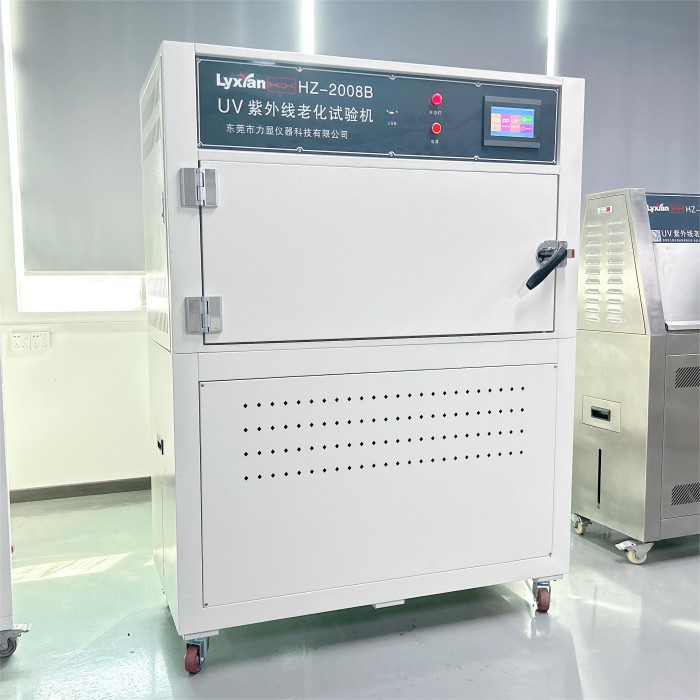

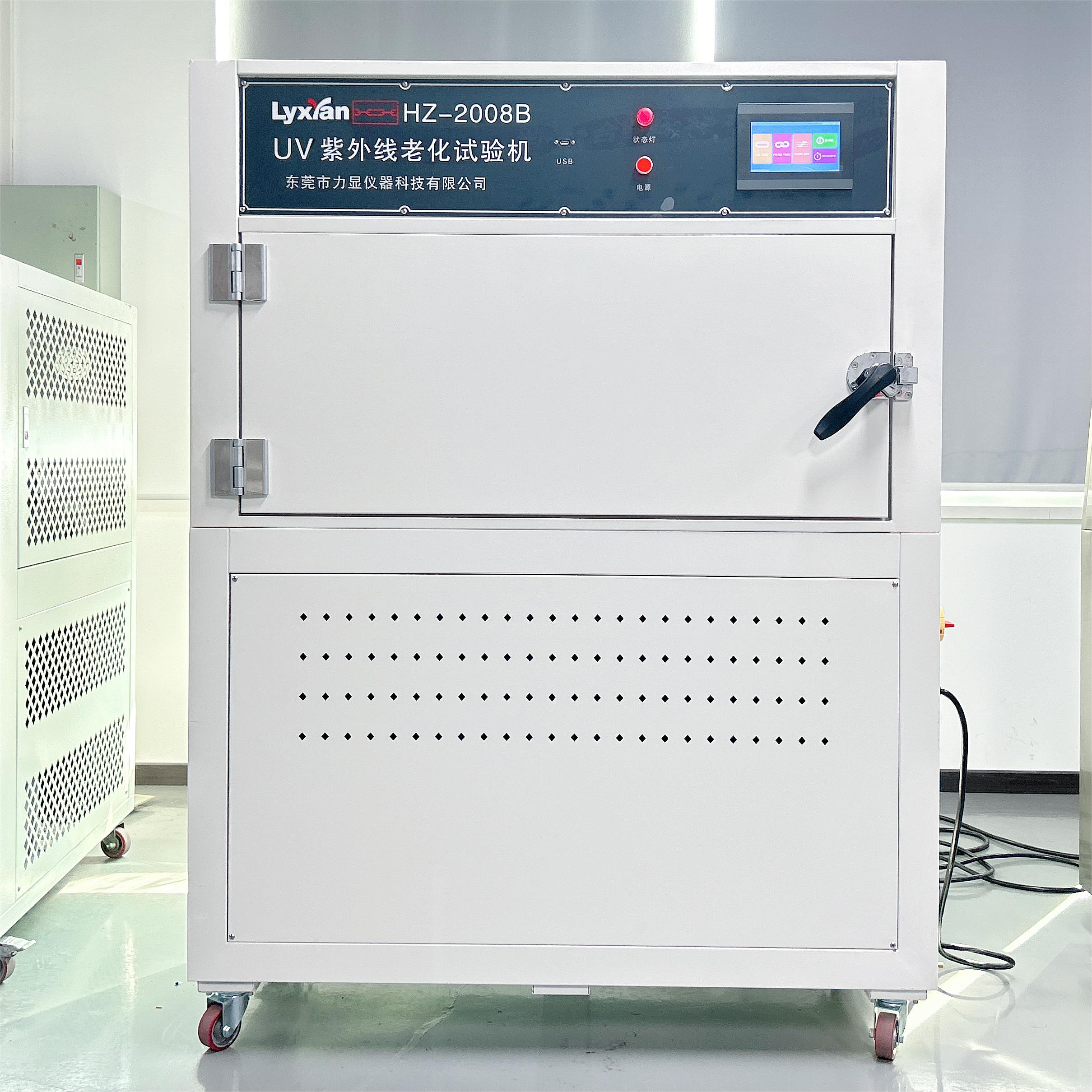

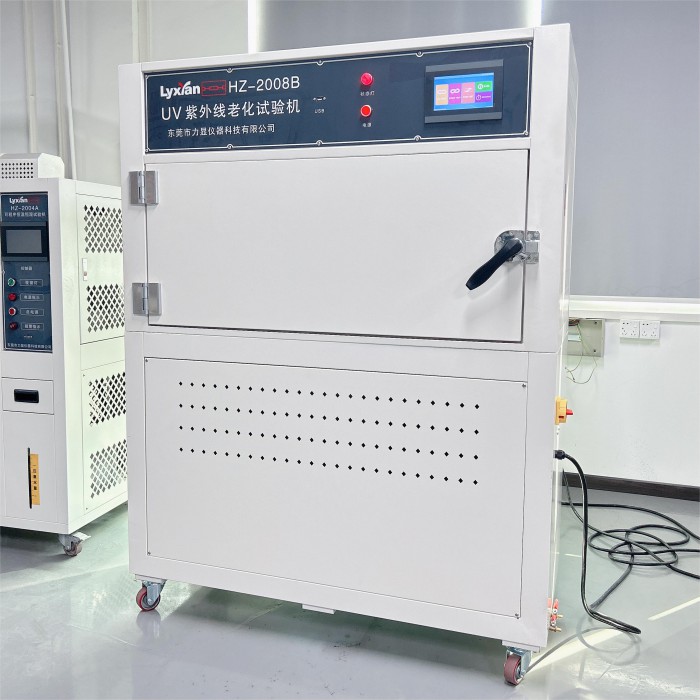

Irregular Plastic Sample UV Weathering Resistance Test Chamber Uv Test Equipment HZ-2008B Irregular Plastic Sample UV Weathering Resistance Test Chamber Uv Test Equipment HZ-2008B

Irregular samples UV aging testing machine can simulate the sun, rain and dew to damage the material, using UV lamp simulate the effect of sunlight, cold rain and dew. Being tested textile materials are placed in a certain environment which the light and moisture are alternating. The Irregular samples materials are tested for several days or weeks, you can know the damage of material at outside for several months or several years, Damage types include: bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.

Equipment summary:
Irregular samples UV aging testing machine can simulate the sun, rain and dew to damage the material, using UV lamp simulate the effect of sunlight, cold rain and dew. Being tested textilematerials are placed in a certain environment which the light and moisture are alternating. The Irregular samples materials are tested for several days or weeks, you can know the damage of material at outside for several months or several years, Damage types include: bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.

Main Functions:

UV test machine, the UV lamp can simulate the effect of the sun, condensation and water spray system can simulate
the effect of rain and dew. the temperature can be controlled at the process of testing. A typical test cycle is usually testing at UV radiation of high temperature and the 100% humidity at dark; Typically used in paint and coatings, automotive, plastic products, wood products, glue, etc.

Corresponding Standard:

Accord with  ISO 4892-1


Technical Parameter:

ModelHZ-2008 UV aging test chamber
Lamps QuantityUV Lamp 8pcs, spare lamp: 4pcs, (ATLAS, UVA340, UVB313, UVC351)
RecorderOption
RadiometerOption
UV TemperatureFrom 45 °C to 70 °C
Black temperatureFrom 40 °C to 60 °C
Testing Capacity and sample size48 piece (75 x 150mm) / 50 piece (75 x 150mm)
Water and ConsumptionDistilled water, 8 liters / day
Dimension (W x D x H)137 x 53 x 136cm
Weight136kg
Power1 ψ, 120V/60Hz, 16A or 230V/50Hz, 9A, 1800W (max)
