HZ-2008A Fabric uv test chamber factory

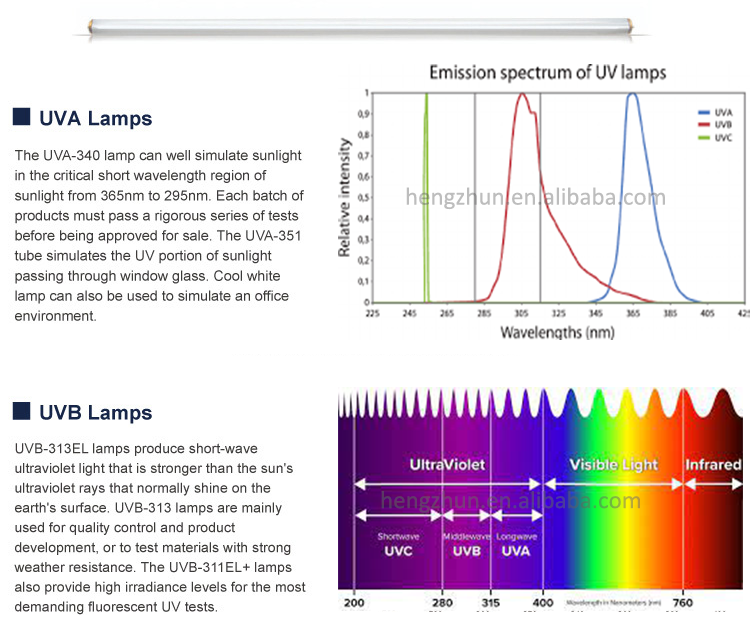

UV aging test chamber can simulate the damage caused by sunlight, rain and dew to materials. UV uses fluorescent ultraviolet (UV) lamps to simulate the effect of sunlight, and uses cold simulated moisture rain and dew. The tested material is placed in a cycle of alternating light and moisture at a certain temperature for testing. UV can reproduce the damage that occurs outdoors for months to years by testing for several days or weeks. The types of damage include: fading, discoloration, loss of gloss, chalking, cracks, turbidity, blistering, embrittlement, strength decay and oxidation.

Equipment summary
Main functions
Corresponding standard
Technical parameters

Equipment summary:

Textile UV aging testing machine can simulate the sun, rain and dew to damage the material, using UV lamp simulate the effect of sunlight, cold rain and dew. Being tested textile materials are placed in a certain environment which the light and moisture are alternating. The textile materials are tested for several days or weeks, you can know the damage of material at outside for several months or several years, Damage types include: bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.

Main Functions

Fabric UV test machine, the UV lamp can simulate the effect of the sun, condensation and water spray system can simulate the effect of rain and dew. the temperature can be controlled at the process of testing. A typical test cycle is usually testing at UV radiation of high temperature and the 100% humidity at dark; Typically used in paint and coatings, automotive, plastic products, wood products, glue, etc. ISO4892-2

Specification

Model	HZ-2008A
Warranty	1 year
UV temperature	From 45 °C to 70 °C
Water and consumption	distilled water, 8 liters / day
The range of Irradiance:	0.1 W/m2 ～1.0 W/m2
Radiometer	Option
Testing capacity	48 piece(75 * 150m m ) ,50 piece( 75 *150m m )

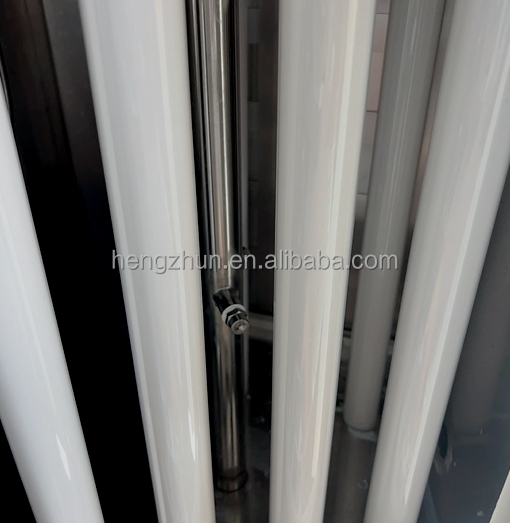

Bulb number	UV Lamp 8,spare lamp :4
Volume	137 * 53 * 136cm
Weight	136kg
Power	1phase , 120V/60Hz,16A or 230V/50Hz, 9A,1800W(max)

The Water Spray System for Some Applications.
the water spray can better simulate the end use of the environmental conditions.Water spray in a simulated drastic changes in temperature and rainfall caused by the thermal shock or mechanical erosion is very effective.Conditions in some practical applications, such as sunlight, heat together the stroke of showers dissipated rapidly, the material will be dramatic changes in temperature, thermal shock, thermal shock for many materials, this is a part of test.QUV water spray to simulate thermal shock and stress corrosion.Sprinkler system with 12 nozzles, each side in the test room of 6; sprinkler system can run a few minutes and then shut down.This short cooling water samples quickly and create a thermal shock conditions.
