HZ-2018 ASTM1171 Rubber Ozone Aging Environmental Test Chamber

The ozone content in the atmosphere is very small, but it is the main factor causing rubber cracking. The ozone aging chamber simulates and strengthens the ozone conditions in the atmosphere, studies the effect of ozone on rubber, and quickly identifies and evaluates the ozone aging resistance of rubber

Equipment summary
Main functions
Corresponding standard
Technical parameters

Rubber Ozone Resistance Testing Machine is a major factor in rubber cracking although it is rare in the atmosphere, ozone aging tank simulates and enhance the condition of ozone in the atmosphere to study the effects of ozone on rubber, and then identify and evaluate the method to resist ozone and aging for rubber, adopt effective anti-aging measures to enhance the life of rubber products.

Main Function

This machine is used to test the ozone environment, the characteristics of crack-resistant rubber, ozone resistance testing machine, can control and adjust the concentration of ozone environment, to determine the anti-ozone properties of the specimen.

Corresponding Standard

JIS K 6259 ASTM1149 ASTM1171 ISO1431 DIN53509

Applicable Industries

It is widely used to control products quality in measuring quality control; Rubber & Plastics; automobile production; wire and cable; packing materials; instruments and meters; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research laboratories; inspection arbitration, and technical supervision departments and other rubber products.

Specification

Brand name	lixian
Application	Rubber Ozone Test Chamber
standard	ASTM1171
Temperature	RT+10~+80℃

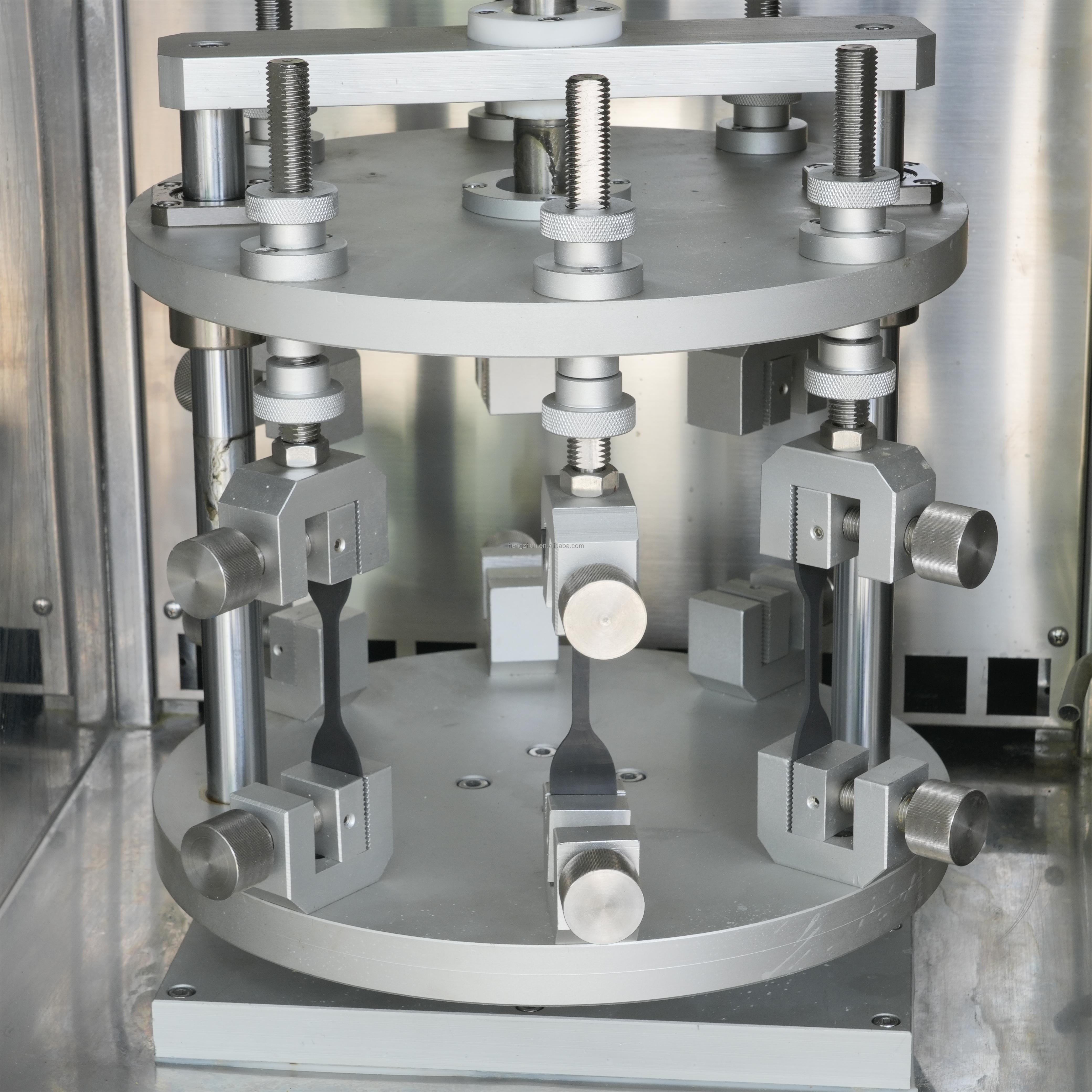

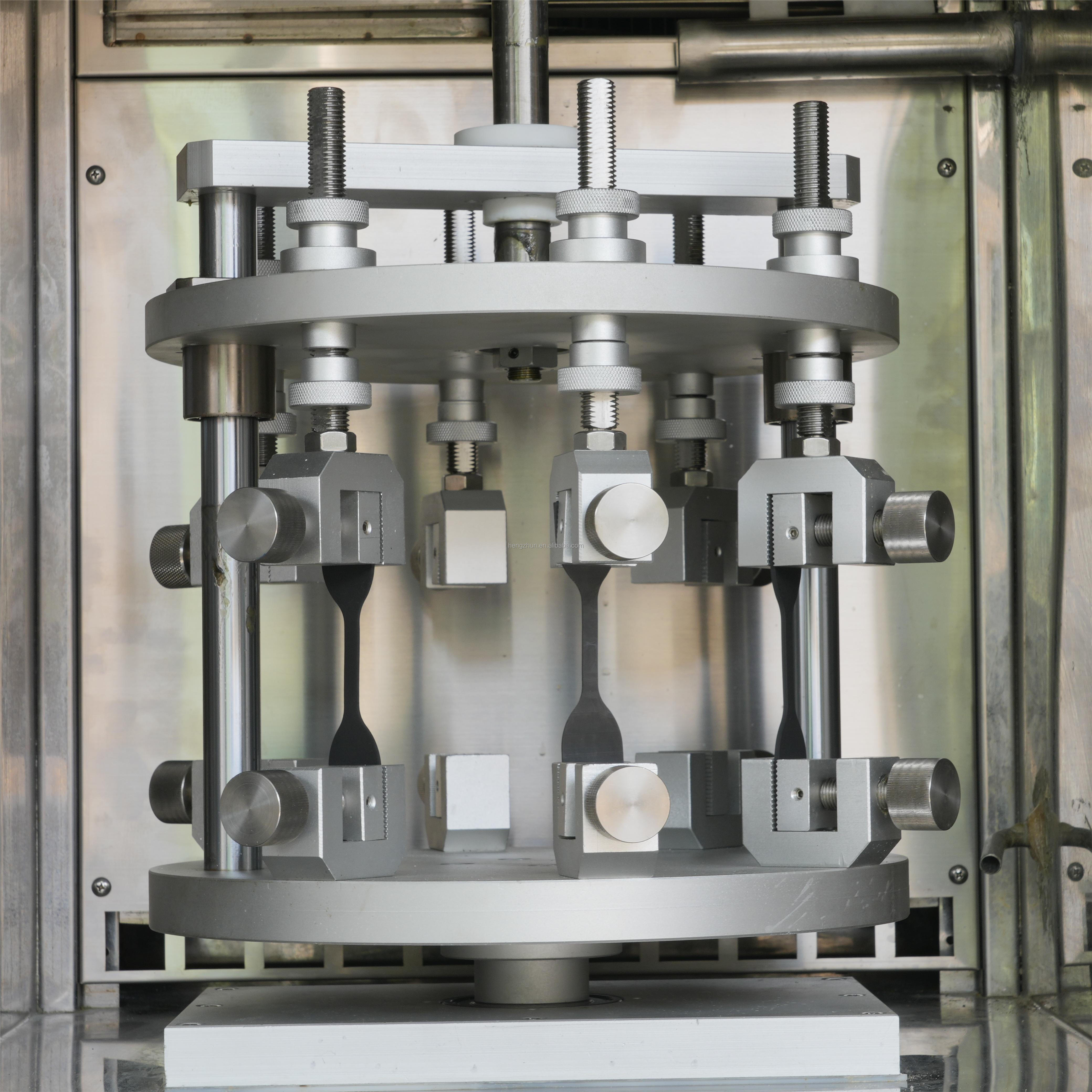

Turn move type	360 degree rotating sample holder (speed:1 rpm)
Power	3~5KW
Ozone concentration deviation	≤10%
Relative humidity	≤65%RH
Ozone concentration	0~1500pphm adjustable
Inside air velocity	over 2 feet / sec
Weight	250kg
Inside size	500600500 mm

Main Feature

Equipment by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.
