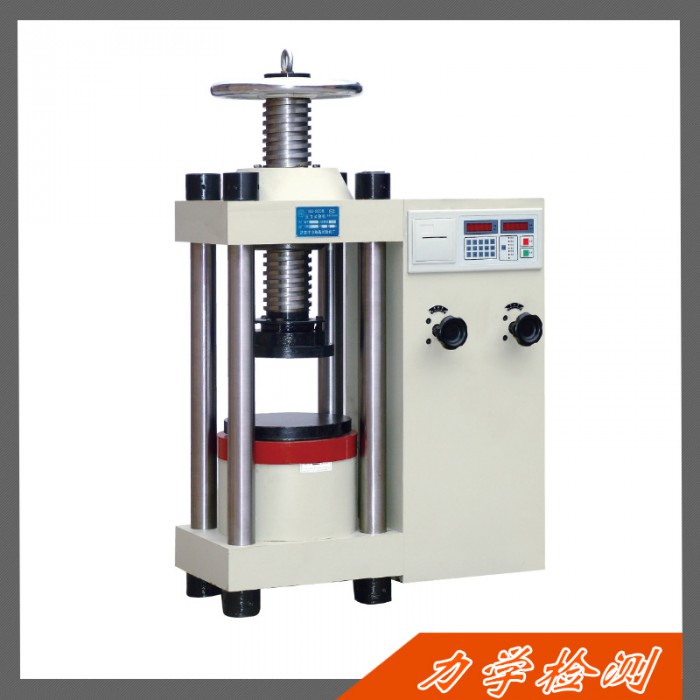

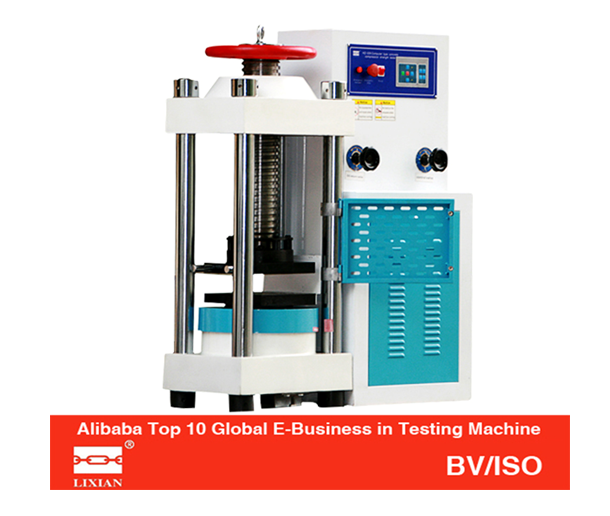

300Ton Hydraulic Compression Testing Machines HZ-010

300Ton Hydraulic Compression Testing Machines HZ-010

The oil tank is sucked through the filter screen and be inhaled pump oil ,through the petroleum pipeline of oil pump transport to oil valve,When the hand wheel to send off the oil, due to the role of oil will push the piston, the oil from the return pipe to tank, when the hand wheel to open get the oil, then the working fluid into the fuel tank through the tubing, pressure tubing through and through oil return valve to tank.

Equipment summary
Main functions
Corresponding standard
Technical parameters

Spatial Adjustment Method:
Through the hand wheel rotation, the adjustment of space to achieve compression.

Hydraulic System:
The oil tank is sucked through the filter screen and be inhaled pump oil ,through the petroleum pipeline of oil pump transport to oil valve,When the hand wheel to send off the oil, due to the role of oil will push the piston, the oil from the return pipe to tank, when the hand wheel to open get the oil, then the working fluid into the fuel tank through the tubing, pressure tubing through and through oil return valve to tank.

Control System:
Hydraulic Compression Testing Machines HZ-010 adopts hydraulic loading, electronic measuring force, with a load of figures, the loading rate shows ,the maximum load to maintain, as well as overload protection and power data retention and other functions.

Safety Protection Device:
When the test force more than 3% of the maximum test force, the overload protection, oil pump motor shut down.

Fixture:
Whole set fixtures include: a set compression platen fixture

Technical Specifications:

Max load	2000kN	2000kN	3000kN
Test force measuring range	4%-100%FS
Test Force showed the relative error	≤indicating value±1%	≤indicating value±1%	<indicating value±1%
Silk pole adjustment method	Manual operation	power-driven	power-driven
Test Force Resolution	0.01kN	0.01kN	0.01kN
Hydraulic pump rated pressure	40MPa
Upper and lower bearing plate size	φ225mm×φ300mm	φ260mm×φ300mm	φ370mm×φ370mm
Maximum distance between the upper and lower plate	320mm	320mm	330mm
Piston diameter	φ250mm	φ250mm	φ310mm
Piston stroke	30mm	30mm	50mm
Motor Power	0.75 kW	0.75 kW	1.1 kW
Outside dimension	800×500×1200mm	800×500×1200mm	1000×600×1500mm
Weight	750kg	750kg	1800kg
