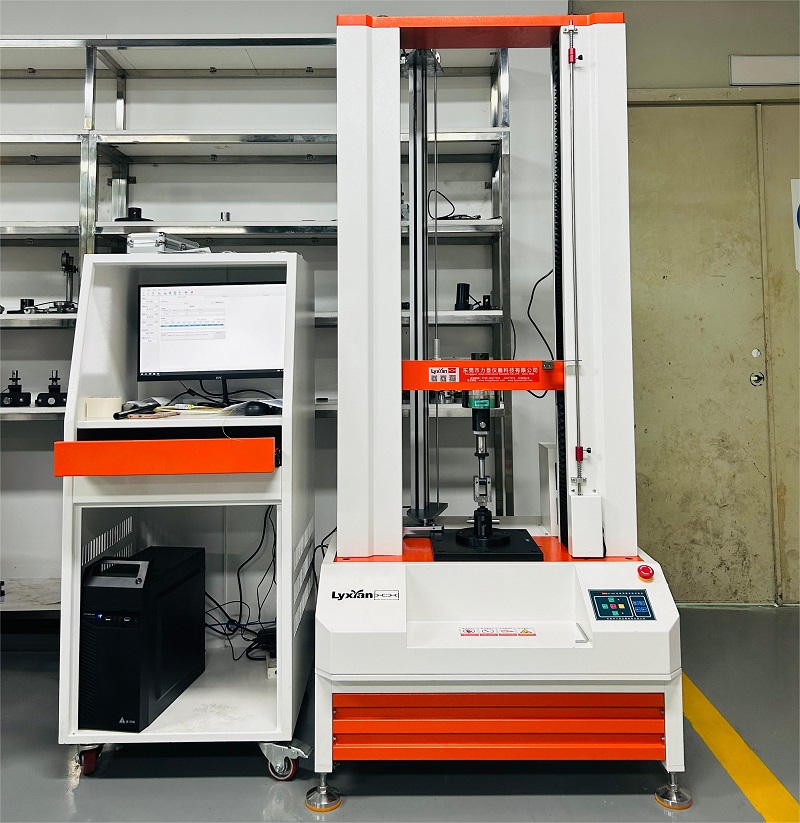

1.Computer Servo Type Universal Testing Machine
A. High-precision sensor 1ton from the U.S.A.  Accurate Forces within ± 0.5%.
B. High-precision 24 bits A / D, sampling frequency 200Hz
C. Power System:  Panasonic AC Servo Motor + Driver + CAVEX + precision ball screw
D. Control System: it is more precise using Pulse Command control modem,  the range in speed control is 0.01 ~ 250 mm / min.the board of iron can be adjusted to fast and slow by the control board. it is automatically saved after testing.
E. Data transmission: RS232 Transfer

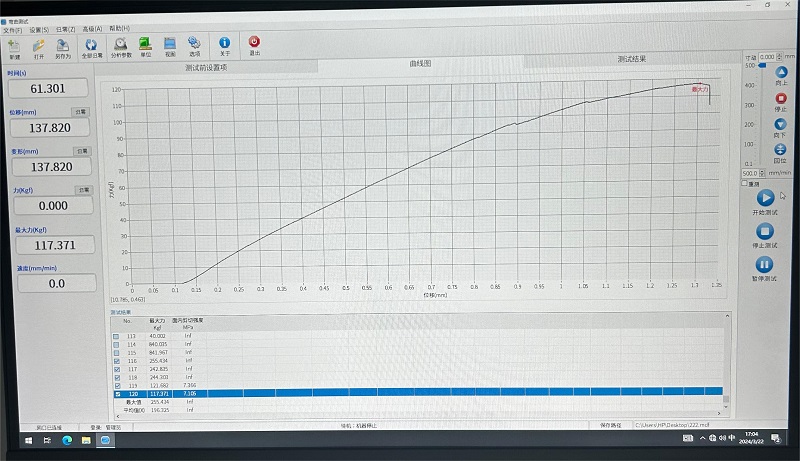

F. Display: Windows XP test software.
G. easy to control five-speed and calibration system.
H. test software can precision control in position, speed, rate of load force and rate of stress, satisfy the different requirements of test.
I. Test space: Testing width is about 400 mm (standard), moving space of active iron 1000mm (excluding fixtures)
J. displacement: coder 2500 P / R, increase four-time accuracy. adopt Japanese Lejing coder that has strong anti-jamming capability, displacement resolution 0.001mm.
Small deformation: Metal extensometers, parsing 0.001mm.
K. Safe equipment: the system would shut down if overload or over-trip

2. items can be tested in the Computer Servo Type Universal Testing Machine
Common items: ( display data and calculation )
● tensile stress                                   ● tensile strength
● tensile strength                                ● rate of elongation at break
● fixed stress                                       ● rate of stress at break
● stress strength                                 ● tear strength
● the value of force at any point          ●rate of elongation at any point
● pull-out strength                               ● force of adhesion and value of peak
