ASTM D2632 Pump Spray Nozzle Compressive Strength Pressure Testing Machine HZ-1007A

ASTM D2632 Pump Spray Nozzle Compressive Strength Pressure Testing Machine HZ-1007A

This ASTM D2632 & ISO 7624 spray nozzle compression testing machine is used to test compressive strength and pressure resistance of pump spray nozzles with high precision.

Equipment summary
Main functions
Corresponding standard
Technical parameters

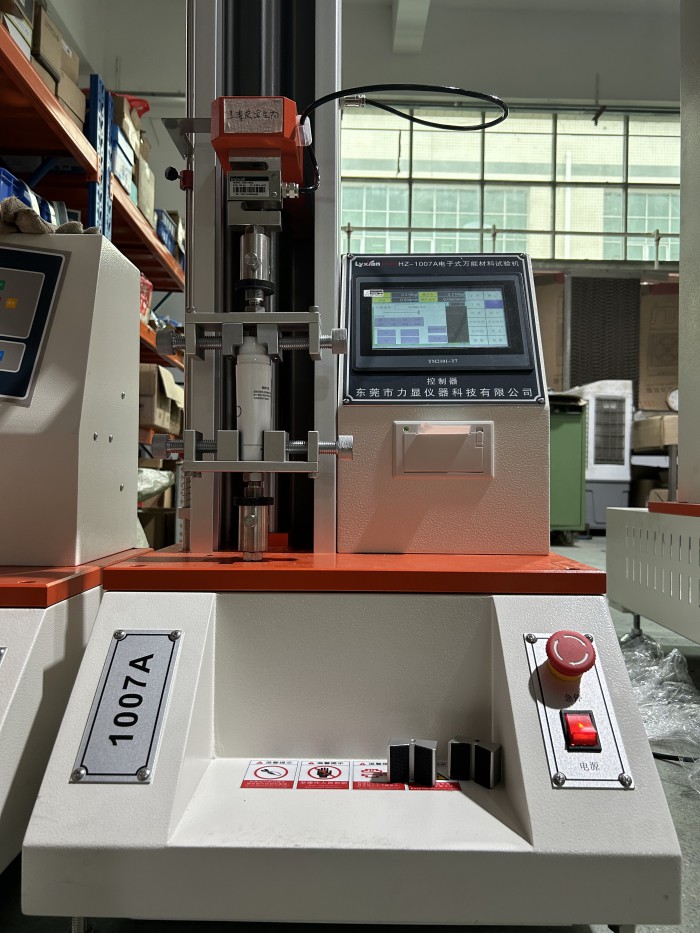

Skin care product pump head Tensile Strength Test machine Equipment HZ-1007A is a simple type machine, simple structure, convenient operation, it can be tested on the operated table, Using the electronic control systems, load sensor is rising and falling to test the tension or compression through the motor rotation, transmission machinery and T-screws.

Main feature:

1. Excellent design. my company has focused on product appearance over the years, company has developed many products that is similar with the foreign products, the surface of product is made of aluminum and process by electrostatic spray.
2. Digital force displayed by LCD, discernible tension or pressure, LCD display clearly.
3. Three kinds of units: N, Kg, Lb, Ton option or automatically exchange;
4. LCD with backlight can be used in low-light environments.
5. Single measurement, it can record the max force of tension and compression in both directions, automatic or manual cleared to zero.
6. The system would shut down if overload or over-trip.
7. Structure of single-column is beautiful and sophisticated, seating operation, relaxation and nature.

Technical parameters:

Model	HZ-1007A Tensile Strength Tester Machine
Maximum load	200kg
Unit	KG,N,LB, TON can be exchanged.
Measurement system	Load cell + HZ-2000
Accuracy load of measurement	the load cell + HZ-2000 screen ± 0.5% (full range of 5% -100%)
Resolution	1 / 50000
Maximum test stoke	About 500mm (excluding gripper, can be customized)
Test speed	50-300mm/min with stepless speed and 5 fixed-speed (can be customized)
Data sampling frequency	200times/sec
Display	HZ-2000 dark blue LCD display, membrane touch keys, with the following functions.
Machine size	45x55x140cm (lengthwidthheight)
Weight	75KG
Ratio of Breakpoint	from 0 ~ 99%, which the user can set according to different materials to stop the machine, realizing stop machine at any position.
Safety	The system would shut down if overload or over-trip.
Shape	column shell is made of aluminum material.
Power system	AC Motor
Power	120W (depending on different motors)
Power supply	1Φ, 220V, 15A
