ASTM D412 Rubber Sheet Tensile Strength Universal Testing Machine HZ-1003A

Equipment Overview

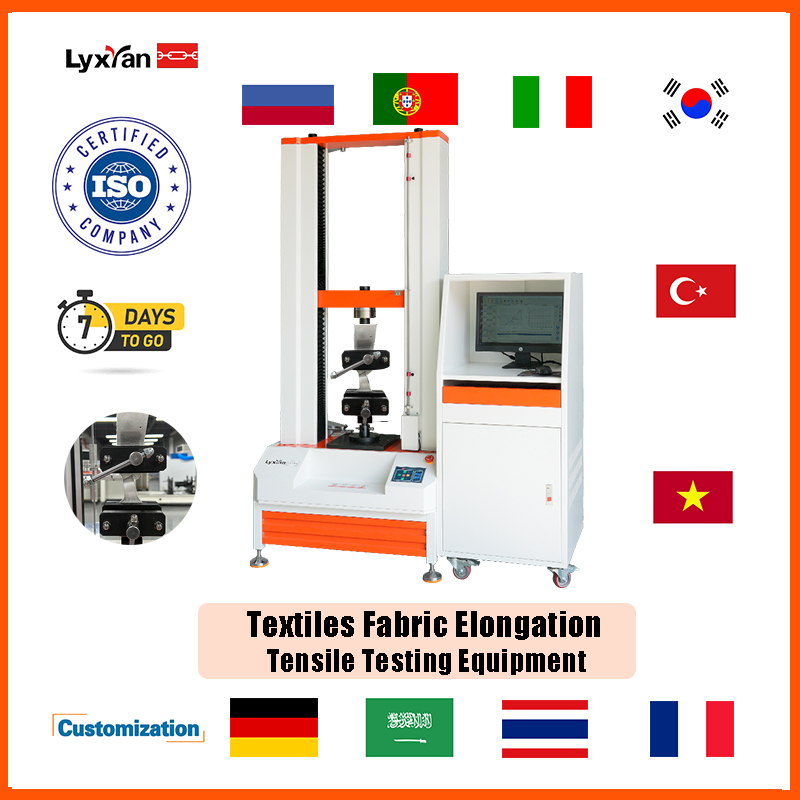

HZ-1003A 20kn ASTM D5034 Textiles Fabric Elongation Tensile Strength Testing Equipment is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This machine is simple to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 100KN.

Standard：ASTM D5034

Main Feature

This Textiles Fabric Elongation Tensile Strength Testing Equipment is suitable for stretching, compression, bending, shearing and peeling of materials and products in various textile, rubber, plastic, synthetic leather, tape, adhesive products, plastic film, composite materials, electronics, metal and other industries. A variety of tests, such as 90 degrees and 180 degrees), tearing, two-point extension (with an additional extensometer), to determine the quality of the product.

Applicable Industry

It is widely used in Textiles Fabric，small size metal，rubber，wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested

Technical Parameters

Model	HZ-1003A	HZ-1003B
Control mode	Digital Type	Computeried Type
Capacity	5KN,10KN,20KN, optional
Computer system	RealTest software control, Chinese and English operation
Units	Kg、Lb、N, (can be exchanged)
Measurement system	load weight + RealTest System
Load accuracy	load weight + HZ-2000 display ± 0.5% (5% -100% of full scale)
Resolution	1/50000
Effective test width	The distance between the test column and the sensor is 60mm.
Power system	Taiwan Delta AC motor,deceleration device from Italy
Maximum test space	Approx. 500mm (without gripper, special test space can also be customized )
Test speed	50~300 mm/min (Can customize）

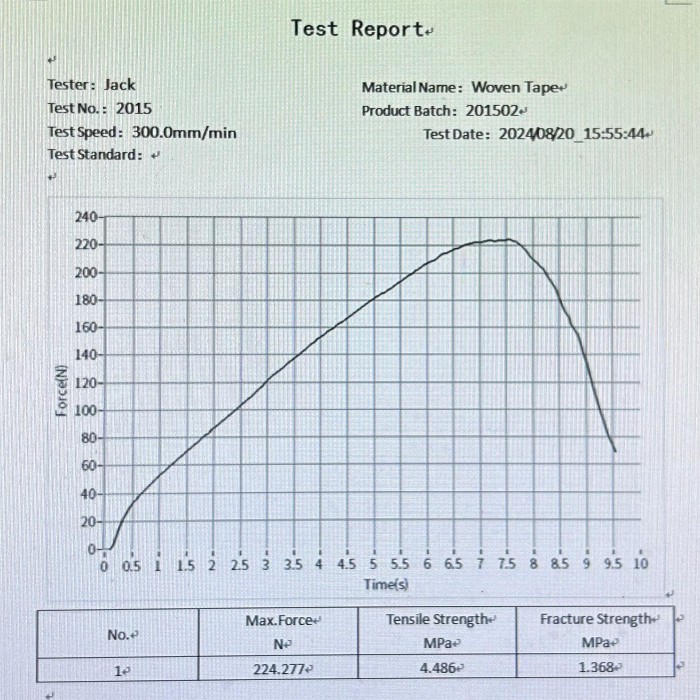

Display mode	RealTest software system: ① single test, 10-point statistics manually and automatically calculate its average and break values; ②. Multi-unit automatically exchange such as kg, Lb, N; ③. function of free to take point; ④. With multi-calibration function; ⑤. Auto printing function; ⑥. Using 24-bit AD acquisition, resolution 1 / 200000; ⑦. Ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine ⑧. Overload protection function can be set, effectively preventing machine from overload

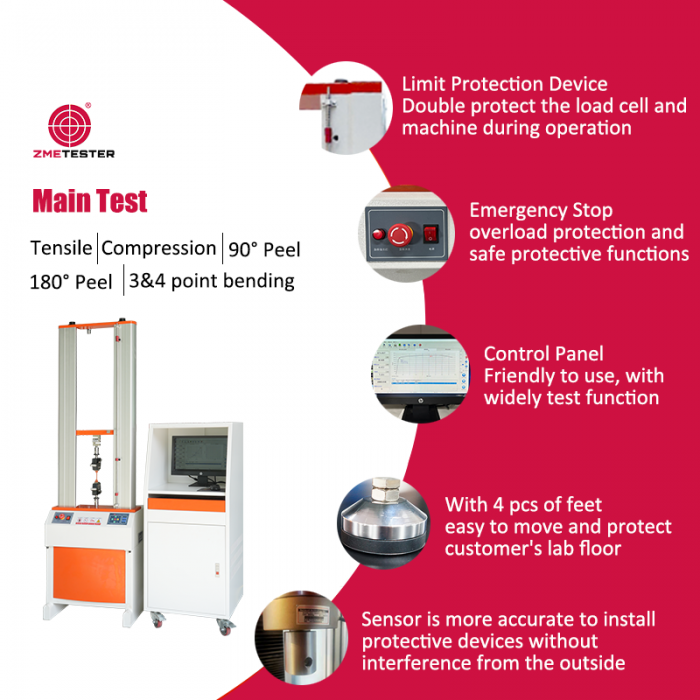

Safety devices	overload, emergency stop , limited devices of displacement,leak current protection
Power	750W(depending on different demand of force using different motor)
