ASTM D638 Plastic Housing Tensile Strength Universal Testing Machine HZ-1010A

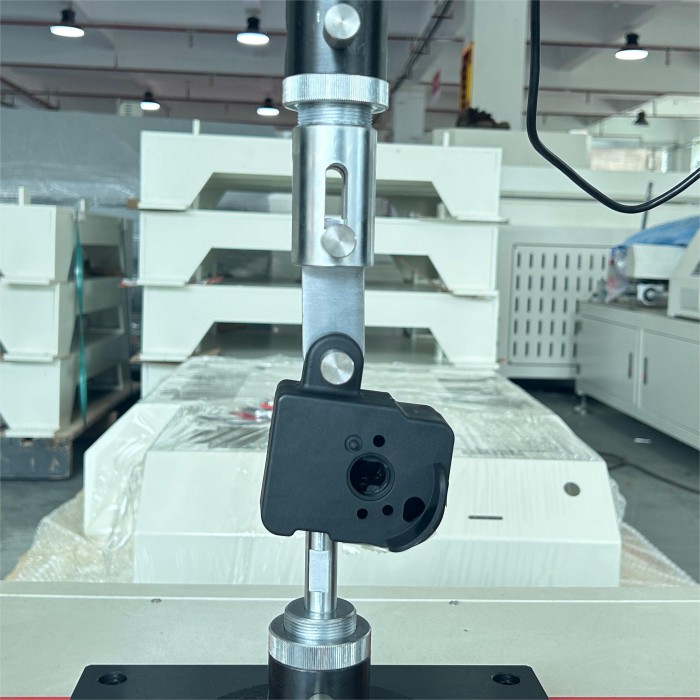

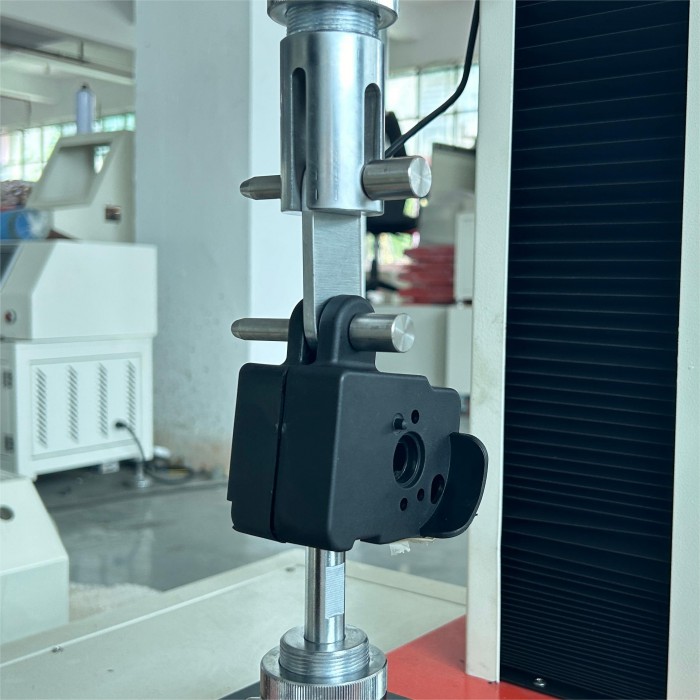

ASTM D638 & ISO 527-1 plastic housing tensile testing machine, used to test tensile strength and breaking strength of various plastic shells with high precision.

Equipment summary:

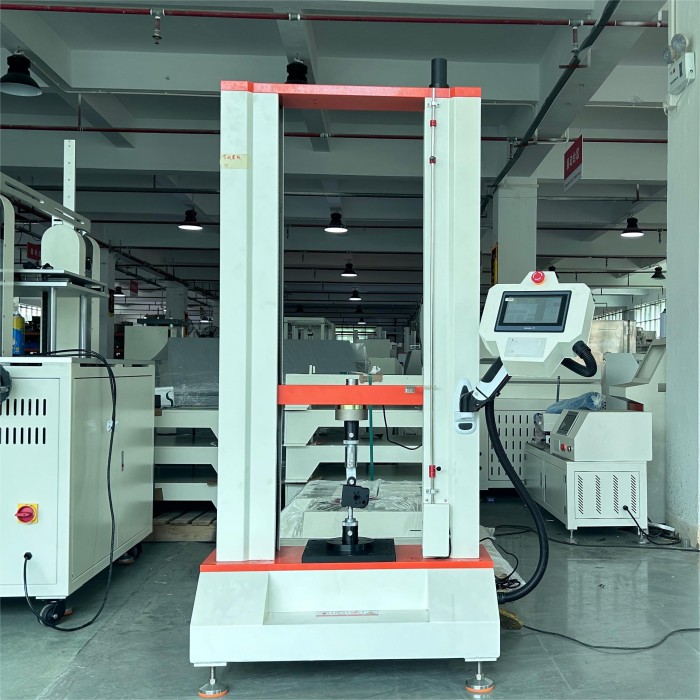

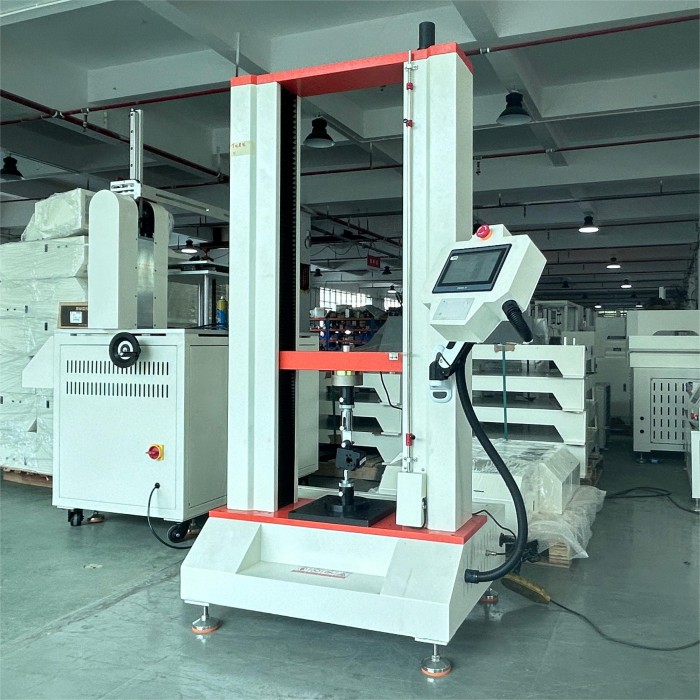

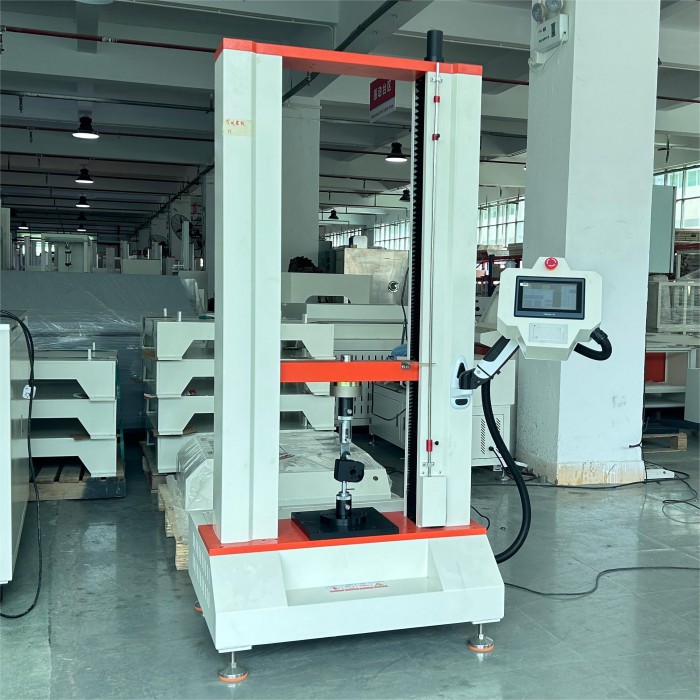

Motor plastic tensile strength testing machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This plastic tensile strength test machine is simple to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line This series of machine is mainly applied to test the plastic materials which the load is less than 2 ton.

Specification

Model Number
HZ-1010A
Certification
ISO/ASTM/CE
Maximum load
2 ton
accuracy of load measurement
the load cell + HZ-2000 screen ± 0.5%(full range of 5% -100%)
Resolution
1 / 50000
displacement resolution
0.001mm
power system
AC motor,deceleration device(fromItaly)
displacement
400, 500, 600mm (or customize)
Range of testing speed
50~300 mm/min
Accruacy of displacement measurement
Tolerance: ±0.5%/ tolerance: ±0.2%
Data sampling frequency
200 times/sec
