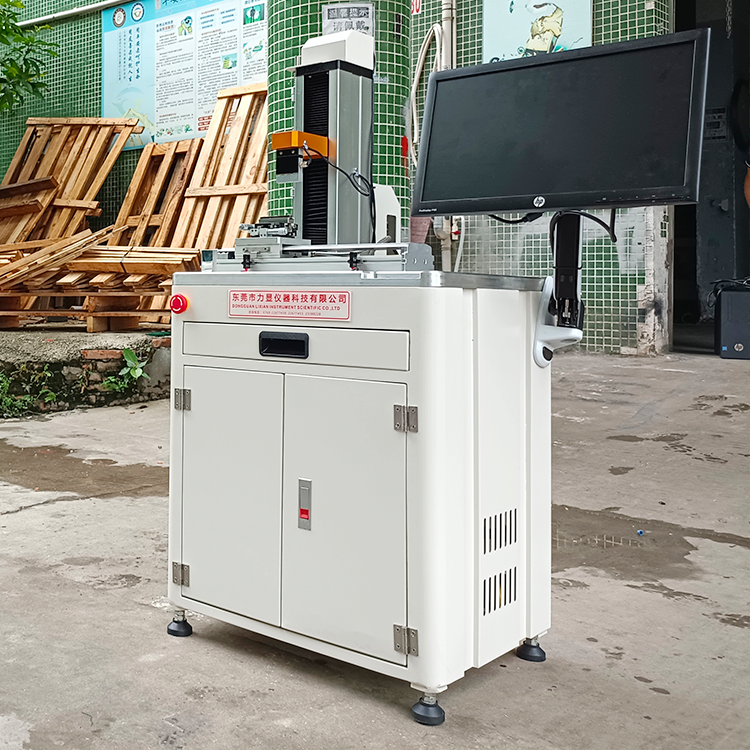

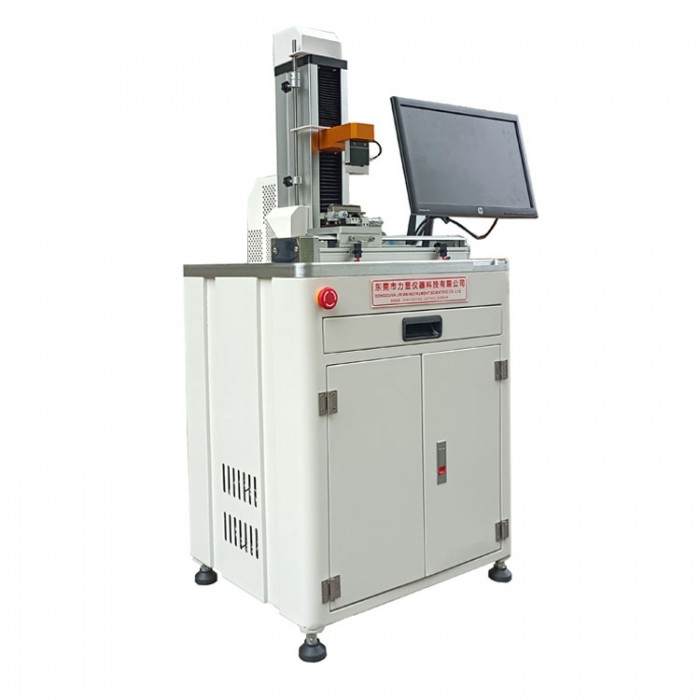

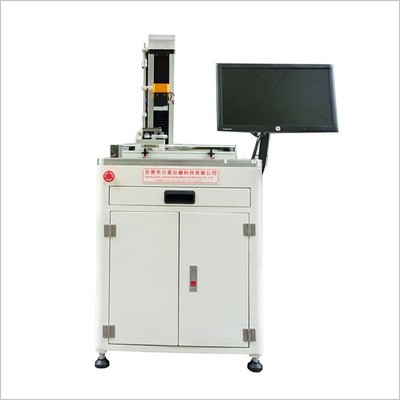

ASTM D695 Plastic Biaxial Compression Strength Biaxial Compression Testing Machine HZ-1007D

This equipment is developed and designed to meet the torque detection of standard specimens. It is mainly composed of mechanical parts, electrical control parts and software control systems. It has the functions of automatic data collection, storage, output and printing, and is easy to operate.

1007D series automatic thrust testing machine is a new type of material testing machine combining electronic technology and mechanical transmission. It has a wide and accurate loading speed and force measurement range, and has high precision and sensitivity for the measurement and control of load, deformation and displacement. This series of models adopts a single-space structure, and the test space is in the lower space. It is mainly suitable for the test of metal and non-metal materials with a test load of less than 500N (50KG). It has stress, strain, and displacement control methods, and can test the maximum thrust, compressive strength, Bending strength and other test requirements.

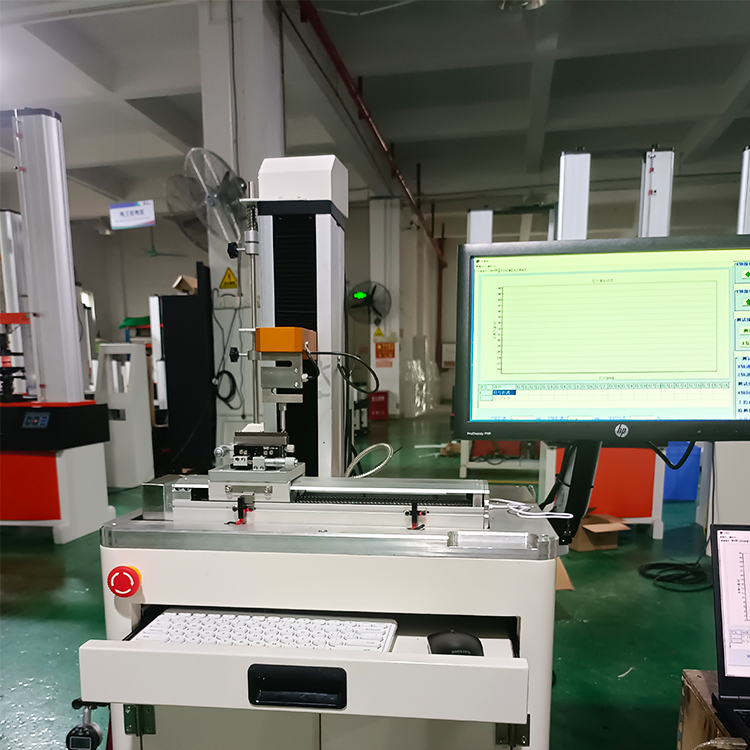

Main Feature Imported photoelectric encoder is used for displacement measurement, the controller adopts embedded single-chip microcomputer structure, built-in powerful measurement and control software, which integrates measurement, control, calculation and storage functions. It has the function of automatically calculating stress, tensile strength and elastic modulus, and automatically counts the results; automatically records the maximum point, breaking point, force value or elongation of the designated point; uses the computer to display the dynamic display of the test process and test curve, and Perform data processing. After the test, the graph processing module can be used to zoom in on the curve for data reanalysis and editing, and can print reports. The product performance has reached the internationaladvancedlevel.

Meet the standard

GB/T 16491-2008 electronic universal testing machine, and also meet ASTM D412, ASTM D638, GB/T 1040,GB/T 8808, GB/T 13022, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 16825, GB/T 17200,GB/T 3923.1, GB/T2611, GB/T 6344, GB/T 20310, GB/T 3690, GB/T 4944, GB/T 3686,GB/T 6344, GB/T 10654, GB/T 2423.60 (IEC 60068-2-21-2006) and many other domestic and international testing standards.

The main function

It is mainly suitable for testing metal and non-metal materials, such as springs, inductors, electronic product keys, touch screen pressure, sponges, foams, conforming materials and other compression, bending and other samples. This fully automatic thrust testing machine can realize 1 -The automatic test in 16 stations can also be adjusted according to the actual needs of customers, set up the program, and automatically push the product to display the thrust data

System composition

The surface color of the equipment is industrial gray.

Computer configuration: 1 set of desktop computer: CPU: 2GB or more, RAM: 44GB or more; hard disk: 160GB or more, the motherboard has a PCI slot, a serial port, and a 21-inch LCD monitor.

Technical Parameters

Model

HZ-1007D

Name	Fully automatic thrust testing machine
maximum load	10N, 50N, 100N, 200N, 500N (other capacities can be customized)
Accuracy class	Level 0.5
Force range	0.4%～100%
Force measurement accuracy	Within ±0.5% of indicated value
Resolution	The maximum load is 1/200000, there is no division between inside and outside, and the resolution remains unchanged throughout the process
sensor	Basic configuration: a pressure sensor (maximum load) Extended configuration: multiple sensors can be added
Effective Stretching Space	300mm (can be customized heightened)
Effective Test Width	The distance between the test column and the center of the sensor is 80mm
Test speed range	0.1～200mm/min (speed can be customized)
Displacement measurement accuracy	Within ±0.2% of indicated value
Test bench safety device	Electronic limit protection
Test bench lifting device	Fast/slow two speed automatic control, jogging possible
Bench return function	Manual or automatic two options, automatic or manual return to the initial position of the test at the highest speed after the test
overload protection	10% more than the maximum load, the machine automatically protects

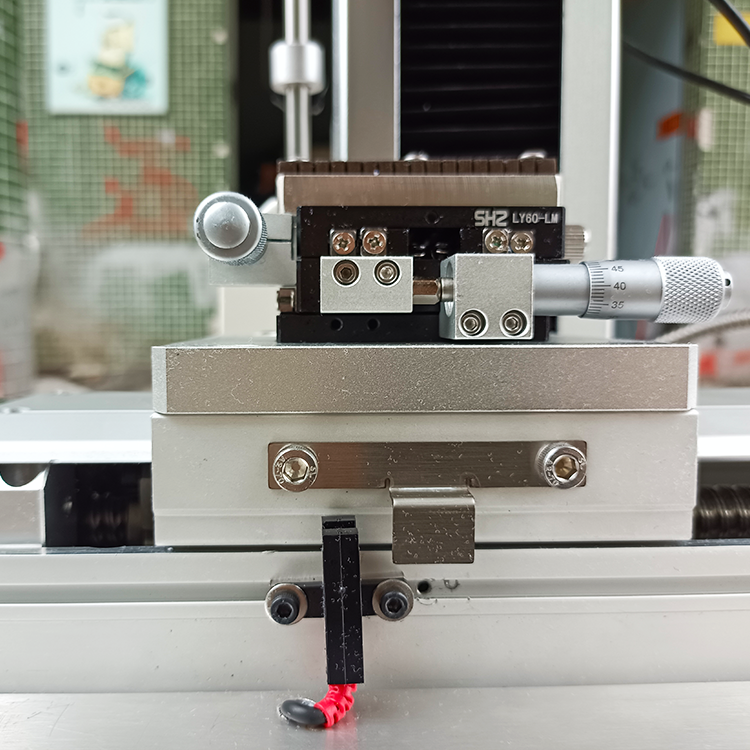

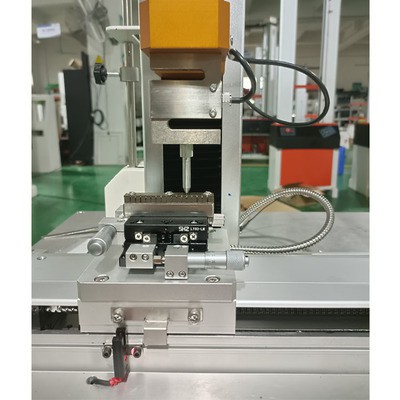

Fixture configuration	A set of thrust fixtures (customized with samples)
Host size	700×500×1200mm (LWH)
motor	Taiwan Delta servo motor + driver
power supply	220V 50HZ
Power	400W
Host weight	(approximately) 25 KG

Other test items

1. Thrust test

Set the fixture distance program to set the automatic thrust test.

2. Stress test

Set the force value to see the deformation is the data

3. The coefficient of elasticity is the Young's modulus of elasticity

Definition: The ratio of the normal stress component in phase to the normal strain. It is a coefficient for determining the rigidity of a material. The higher the value, the stronger the material.

4. Proportional limit: The load can maintain a proportional relationship within a certain range, and its maximum stress is the proportional limit.

5. Elastic limit: the maximum stress that a material can withstand without permanent deformation.

6. Elastic deformation: After removing the load, the deformation of the material disappears completely.

7. Permanent deformation: After removing the load, the material still remains deformed.

8. Fully automatic test: multiple stations can be selected for automatic testing
