Thin Film Tensile Strength Testing Equipment is suitable for testing and analyzing mechanical properties such as stretching, compression, tearing, peeling (90 degrees and 180 degrees) of rubber, tires, hoses, tapes, soles, plastics, films, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipes, composite materials, waterproof materials, fibers, textiles, wires and cables, paper, gold foil, belts, silk threads, springs, wood, medical packaging materials, tapes, etc. It can calculate parameters such as maximum force, tensile strength, bending strength, compressive strength, elastic modulus, elongation at break, yield strength, etc.
Equipment summary:

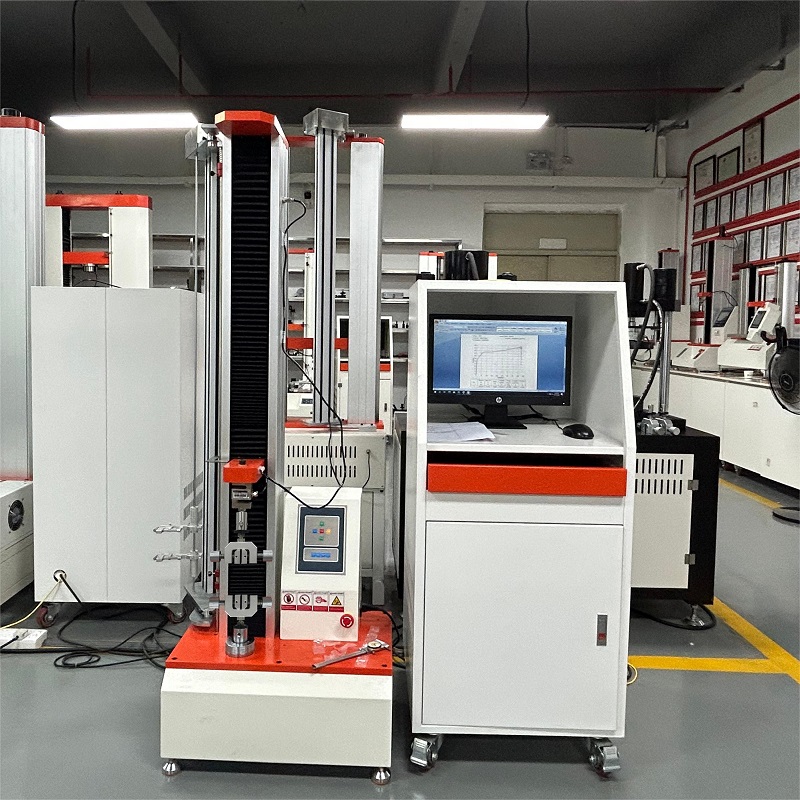

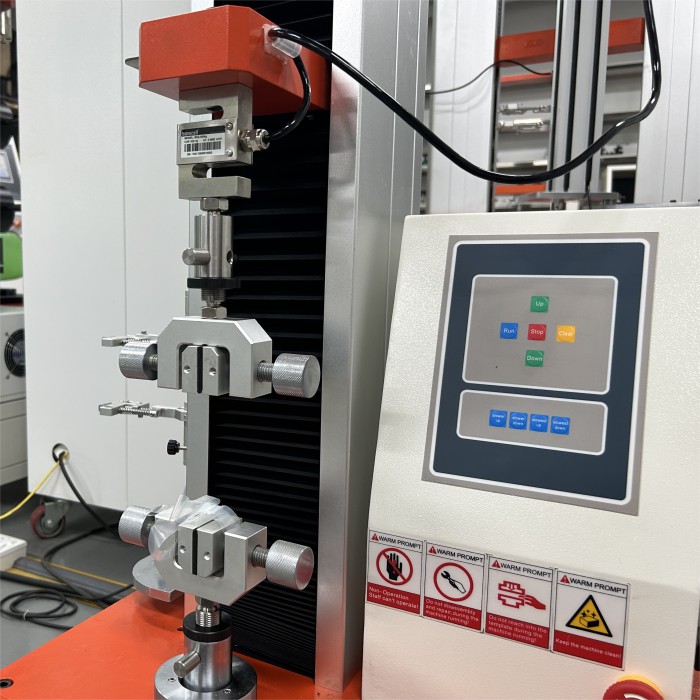

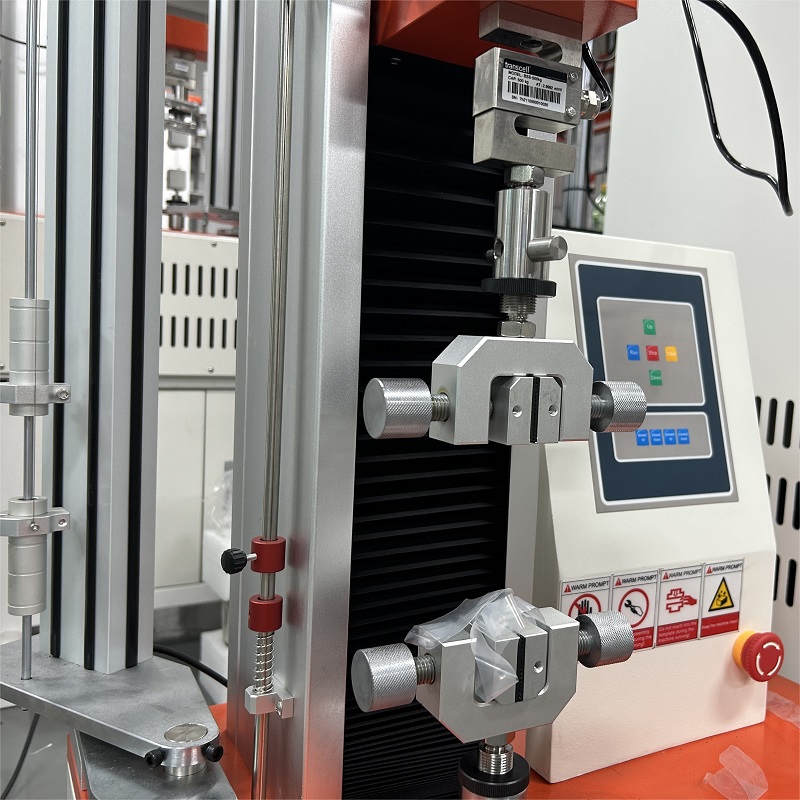

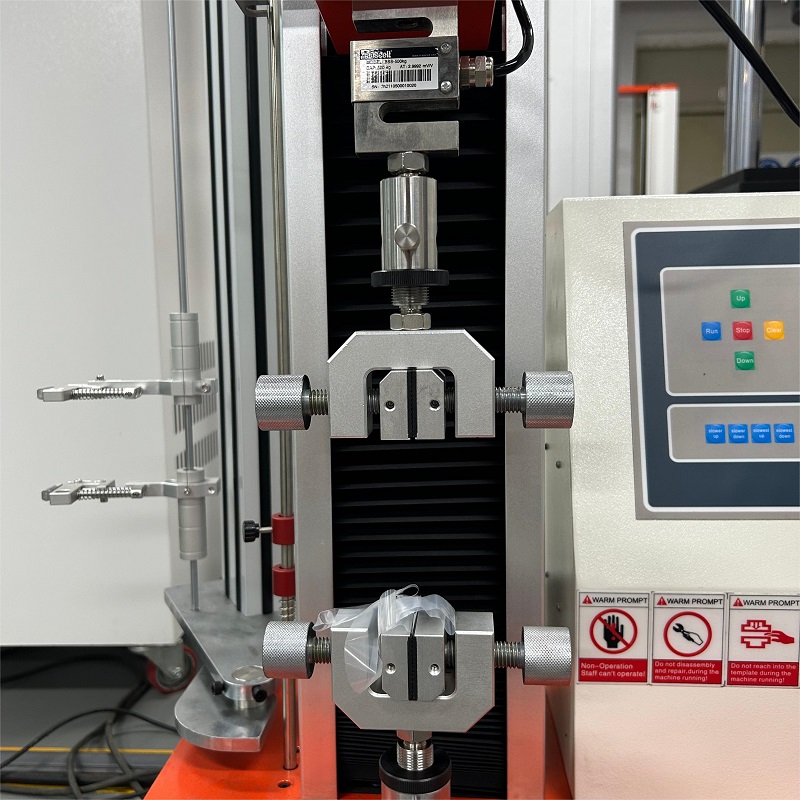

ASTM D882 Thin Film 5kn Tensile Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This series of machine using single-space structure, operational space at the bottom, it is mainly applied to test Thin Film material which the load is less than 5KN, it has the parameters, such as stress, strain, control mode of displacement,calculated max force, tensile strength, bending strength, compressive strength, elastic modulus, rate of elongation, yield strength and others.
