ASTM E302 Torsion Test for Metal Specimen using Computerized Torsion Tester HZ-4012

ASTM E302 Torsion Test for Metal Specimen using Computerized Torsion Tester HZ-4012

Automatic torsion testing machine for metal materials. Features computerized control and high accuracy to meet ASTM E302, ISO 10354 and other international standards. Customizable solutions available.

Equipment summary
Main functions
Corresponding standard
Technical parameters

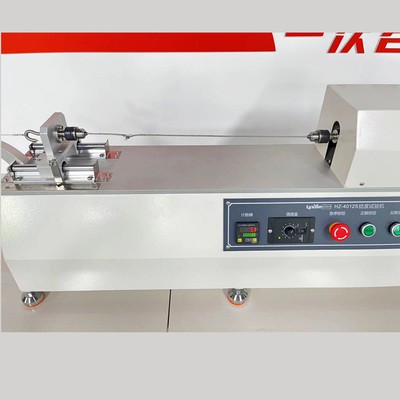

It is mainly used for counting the number of untwisting turns of steel cord samples. The untwisting direction is selected through the control panel, and the number of untwisting turns is automatically recorded and the increased length after untwisting can be observed.

Equipment Purpose

It is mainly used to count the number of untwisting turns of steel cord samples. The untwisting direction is selected through the control panel, and the number of untwisting turns is automatically recorded and the increased length after untwisting can be observed.

Technical parameters:

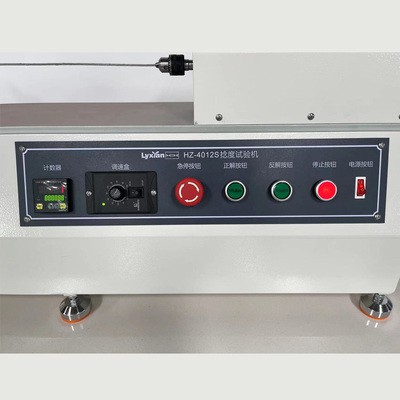

Control mode: control panel button

Rotation speed: 0-40rpm (adjustable)

Specimen range: diameter 0.2-3mm

Maximum push stroke: 150mm

Machine specifications: 1130*255*845 (width, depth and height)

Motor power: 120W speed-adjustable motor

Power supply: AC220V/50HZ

Complies with the requirements of GB/T33159 "Steel Cord Test Method" and GB/T11181-2016 "Steel Cord for Radial Tires"
