ASTM E8 Carbon Steel Tensile Strength Testing Machine

Introduction:

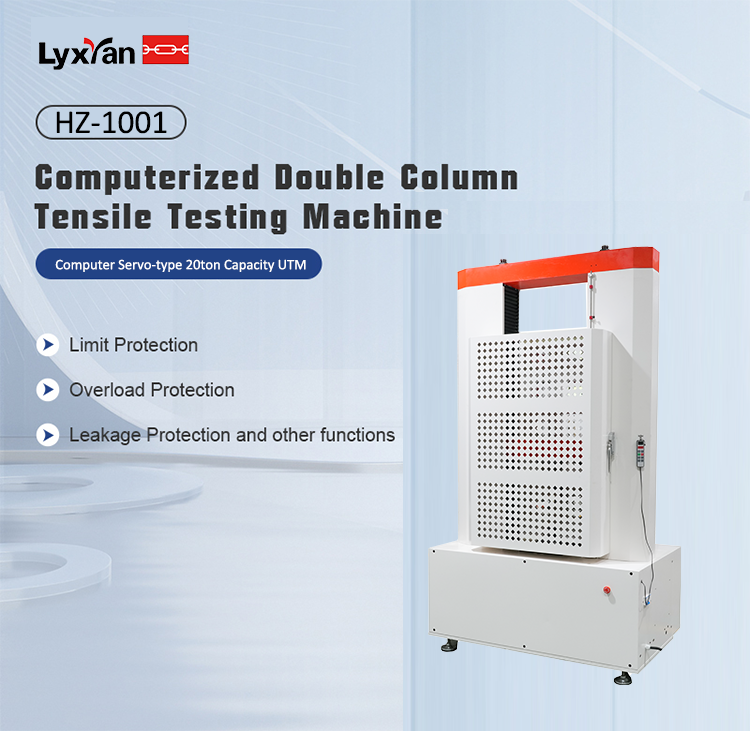

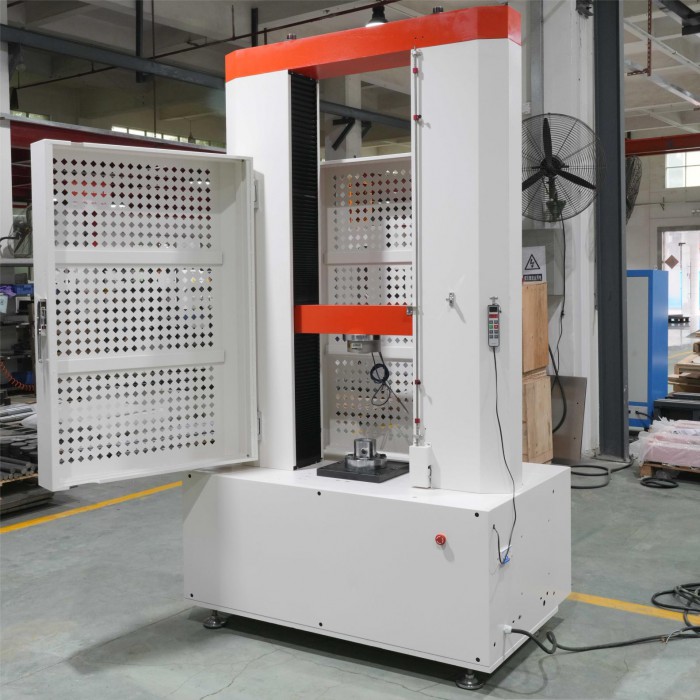

HZ-1001Computer Servo-type Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line.

Main function:
Universal Testing Machines HZ-1001 mainly applied to test the force of metallic and non-metallic materials in the high or low temperature environment, the force such as tension, compression, bending, shear, peel, tear or two-points extensions (need to add extensometer) and others, the material such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire.

Corresponding standard:
ASTM E8

Technical parameter:

Model	HZ-1001
Maximum load	20ton
Accurate grade	1 grade / 0.5 grade
Effective measuring range	0.2%～100% (1 grade)/0.4%～100% (0.5 grade)
Measuring accuracy	Display the value ±1％/Display the value±0.5%
Tester resolution	Max load 1/200000
Load sensor	Basic configuration: sensor (max load): one
Load sensor	Extended configuration: can add more sensors
Effective testing width	400mm (can be customized )
Effective tensile space	400, 500, 600mm (can be customized )
Range of testing speed	0.001～500mm/min
Accuracy of displacement measurement	Tolerance: ±0.5% / tolerance: ±0.2%
Deformation of measured system	Mix span: 10mm, Max range of deformation: 800mm
Accuracy of measured deformation	Tolerance: ±0.5% (according to customized )
Safety	Electronic-limit protection
Testing platform moving device	Fast /slow two speeds to control, can jog
Back to function of testing platform	Manual or automatic operation, after the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection	Overload 10%, automatic protection

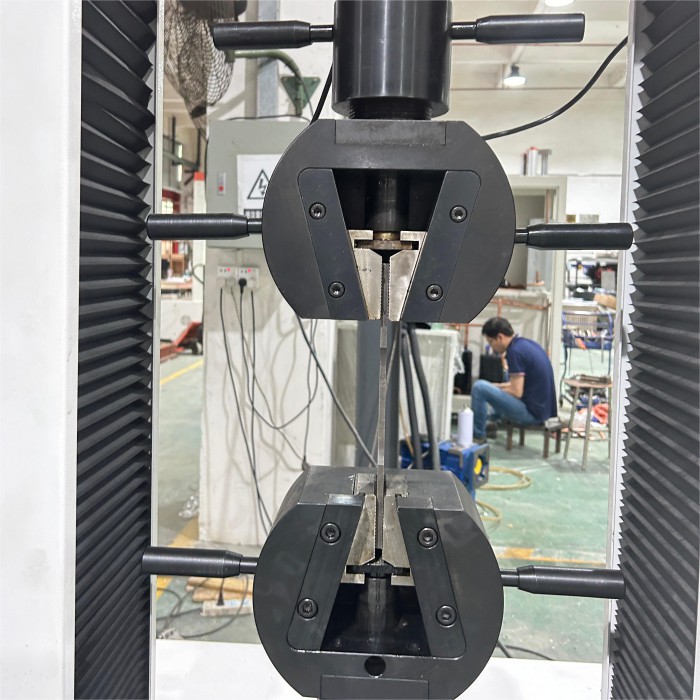

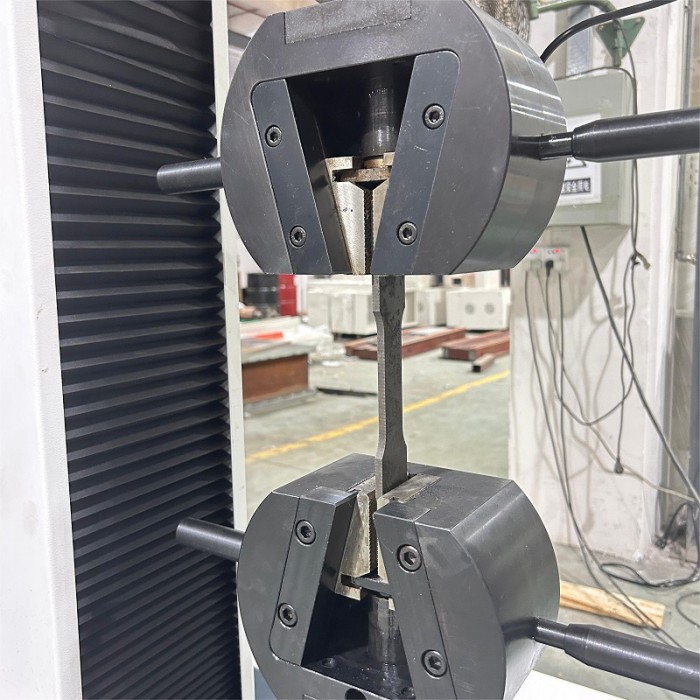

Fixture	According to customer's need
Machine size	1040×590×2000mm ( lengthwidthheight )
Power system	Panasonic AC Servo Motor + Driver + high-precision ball screw
Power supply	220V, 50HZ
Power	0.75KW ( depending on different motor )
Weight	(about) 500 Kg
