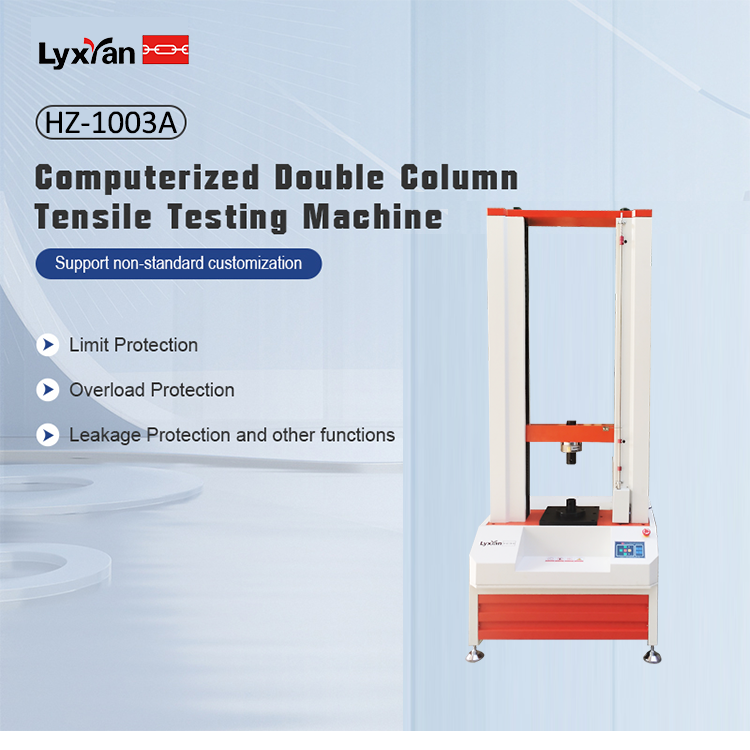

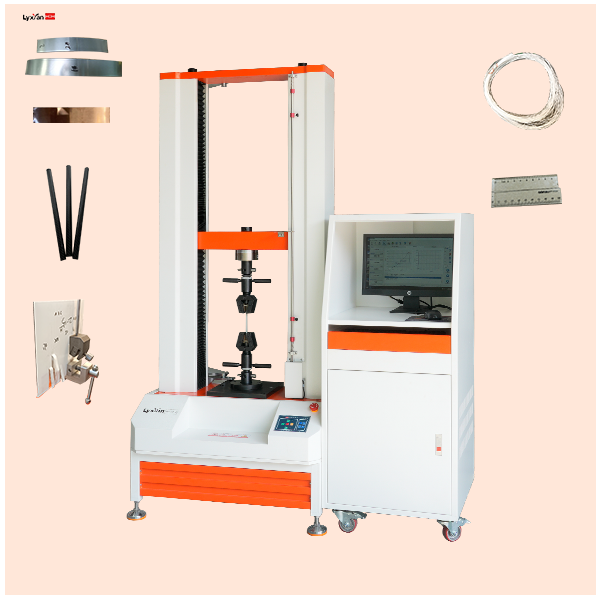

ASTM E8-Carbon-Steel-Tensile-Strength-Testing-Machine-HZ-1003A

ASTM E8 & ISO 6892-1 metal tensile testing machine, used to test tensile strength and breaking strength of carbon steel and metal sheets with high precision.

Equipment summary:

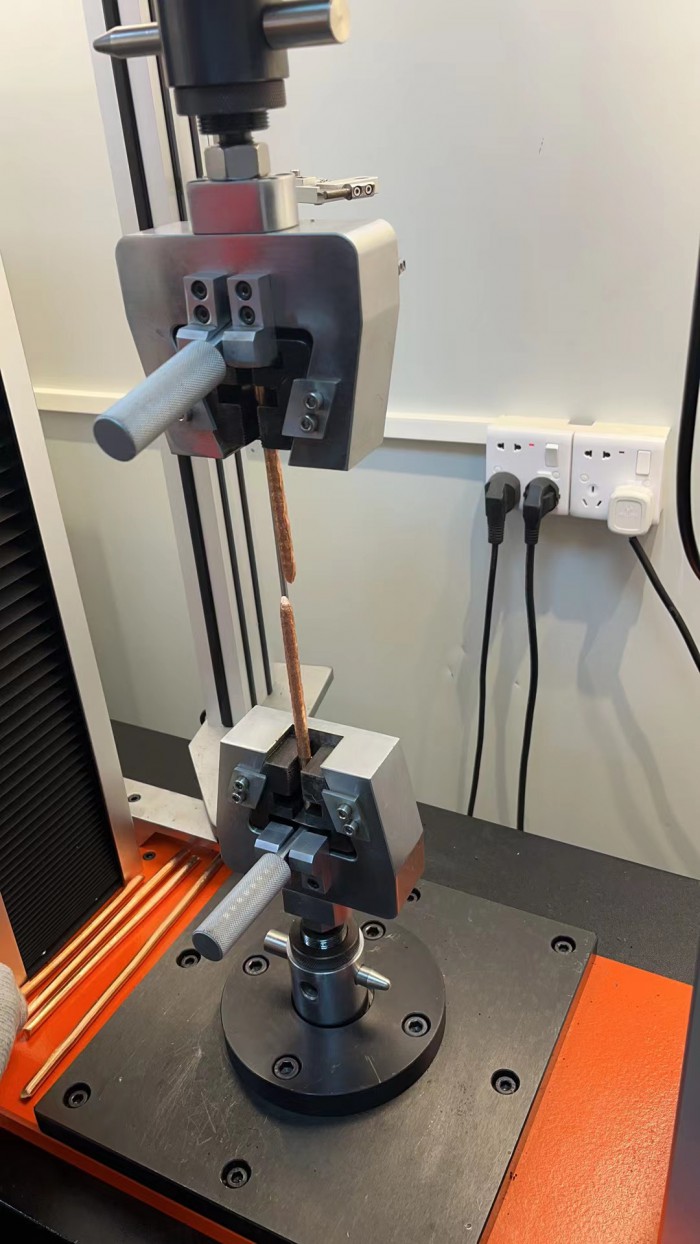

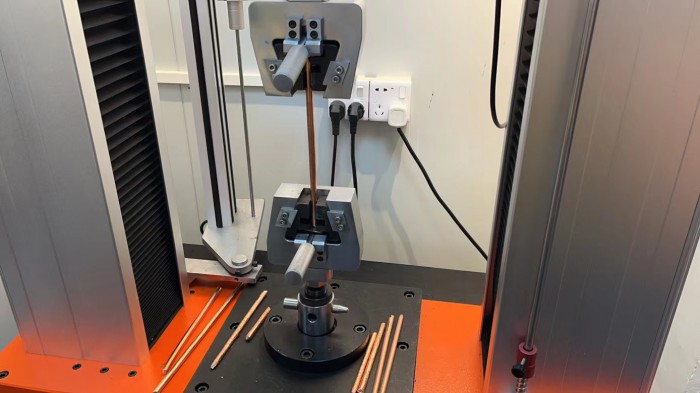

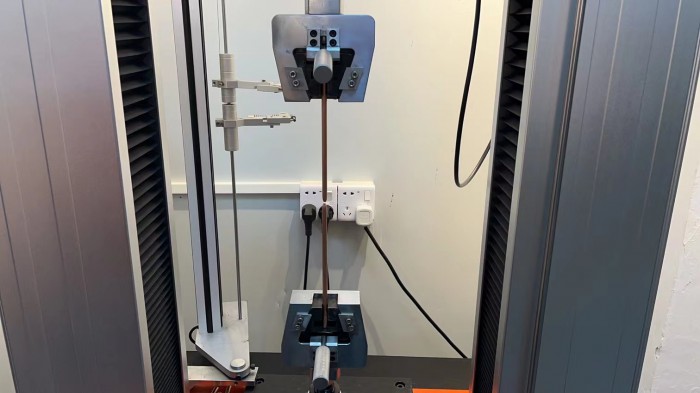

Computer-type servo Copper rod tensile strength test machine is combining electronic technology and mechanical transmission. It has a broad and accurate load speed and measurement range, high accuracy and sensitivity for the measurement and control of load and displacement, and can also carry out equal speed loading and displacement automatic control test.With simple and convenient operation, especially suitable for the production line to control the product quality of testing instruments. Copper rod tensile strength test machine is mainly suitable for Copper rod. The test load of less than 20KN.

Specification

Model Number
1003A
Accuracy
0.5 grade
Certification
ISO/ASTM/CE
Maximum load
20KN
Accuracy
≤0.5%
Resolution of force
1/200000
Drive system
Taiwan “Delta” AC servo motor +drive+High precision ball screw
Fixture
One set of standard tensile grip
Accuracy of extensometer
≤0.5%
Effective displacement
800mm(can be enlarge as client request)
Testing width
390mm(can be enlarge as customer request)
Overload protection
Overload 10%, automatic protection
