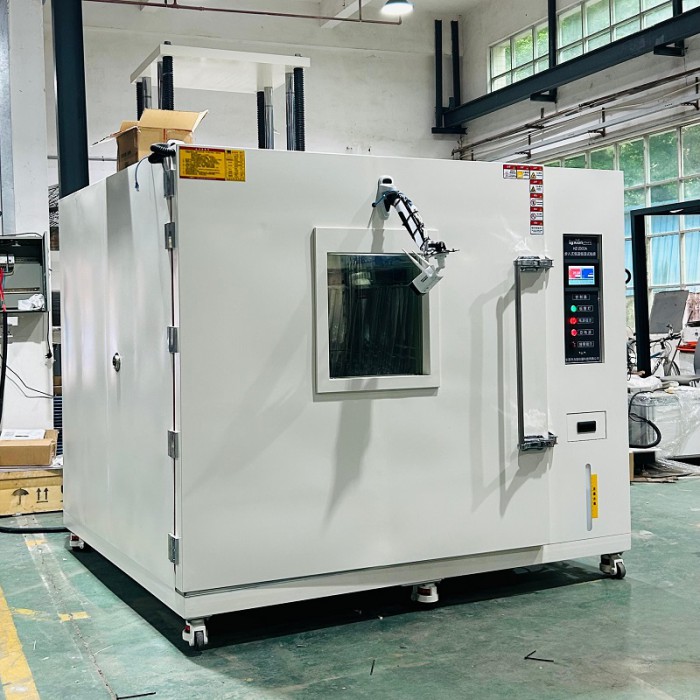

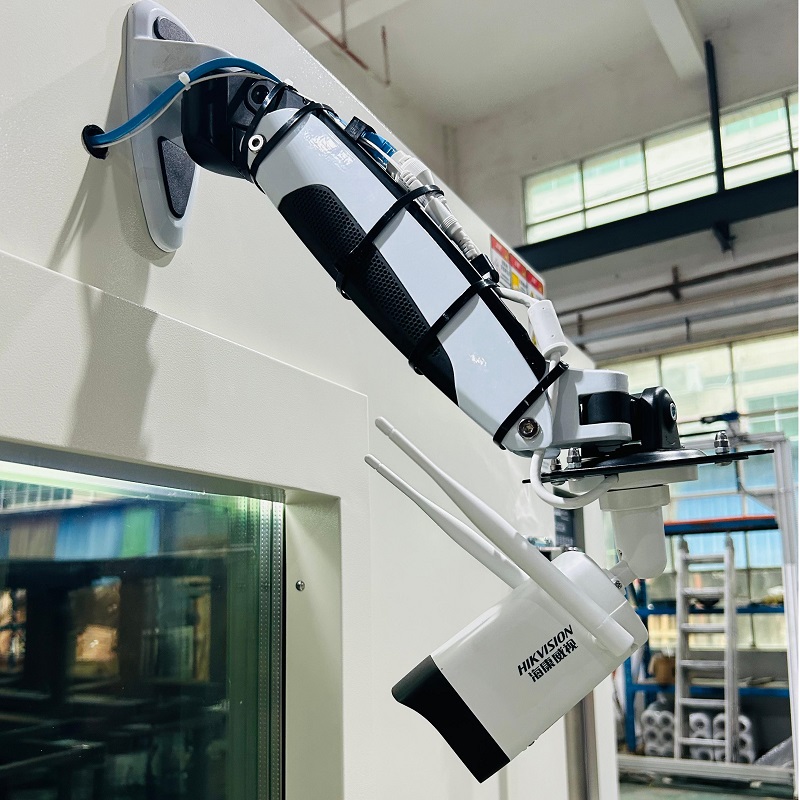

Equipped with HD Camera Walk-in Constant Temperature and Humidity Chamber Test Room HZ-2003A

The walk-in constant temperature and humidity test room is mainly composed of a control panel, a switchboard, a moisturizing panel blower, a heater, a humidifier, and a freezer. It provides the industry with a large temperature and humidity test environment for large parts, semi-finished products, and finished products. It is suitable for testing large-volume test equipment such as computer terminals and automotive parts.

Equipment summary:

Box and package Walk-in constant temperature and humidity testing machine is suitable for the whole machine or large-scale parts to do the low temperature, high temperature, the change of high and low temperature, constant humidity and heating, high-low temperature alternating humidity and heating test. Provide large-scale parts,semi-finished product, finished product for Large-scale temperature and humidity testing environment space to industry. It is mainly composed of control panel, switchboard, moisturizing base plate blower, heating machine, humidity machine, refrigerator. And we also can design the chamber size and function according customers’ need. Block type enclosed cabinet,nice appearance, scientific design.

Test Standards
IEC60068-2-1.1990 Testing method for low temperature testing tank
IEC60068-2-2.1974 Testing method for high temperature testing tank
IEC 60794-1-2:2017 Optical fibre cables - Part 1-2: Generic Specification

IEC 61300Fibre optic interconnecting devices and passive components - Basic test and measurement procedures

Specification
Model numberHZ-2003
Application
box, package walk-in Temperature Test Chamber
Temprature range-40℃-150℃ adjustable
Inner box size
1500mm*1500mm*1500mm(w*h*d)
Cooling method:
water cooling
Humidity range:20%-98%
Heating time:average about 2~3.0℃/minute
Cooling time:average about 1~1.5℃/minute
Inner box material304 Stainless steel
Door opening method:
Single door
Outer box material:paint (whole machine welding)
Temperature fluctuation±2℃
